2007 Suzuki SV1000 Camshaft/valve Diagram

← All diagrams

Find the part on the Camshaft/valve diagram for your 2007 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

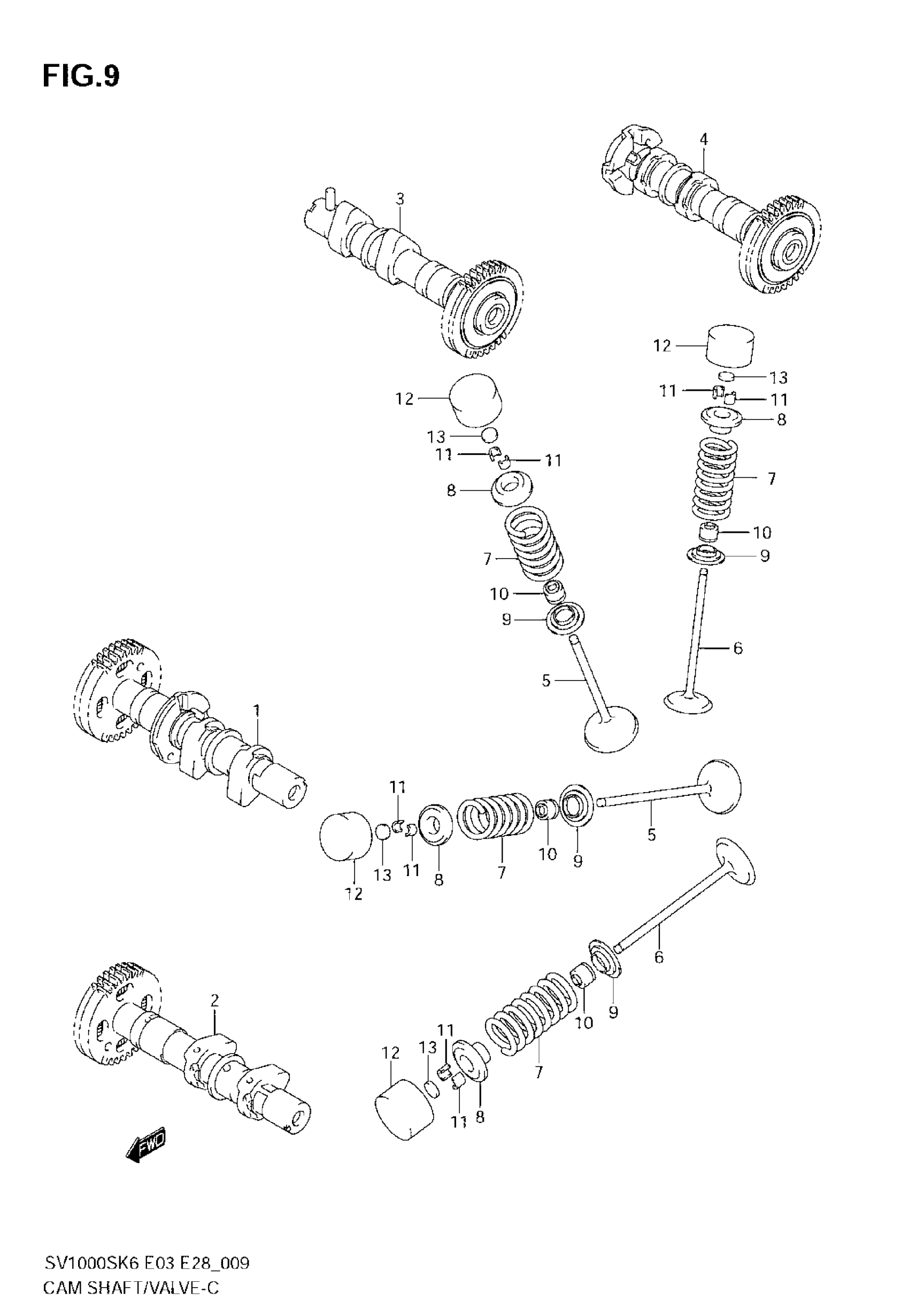

2007 Suzuki SV1000 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT ASSY, INTAKE FRONT

12701-16G00

1
Out of stock

2

CAMSHAFT ASSY, EXHAUST FRONT

12702-16G10

1
Out of stock

3

CAMSHAFT ASSY, INTAKE REAR

12703-16G10

1
Out of stock

4

CAMSHAFT ASSY, EXHAUST REAR

12704-16G10

1
Out of stock

5

VALVE,INTAKE

12911-16G00

4
Out of stock

6

VALVE, EXHAUST

12912-02F00

4
Out of stock

7

SPRING VALVE

12921-06G00

8
Out of stock

8

RETAINER,VALVE SPRING

12931-06G00

8
Out of stock

9

SEAT,VALVE SPRING

12933-06G00

8
Out of stock

10

SEAL, VALVE STEM OIL

09289-05015

8
Out of stock

11

COTTER, VALVE

12932-24400

16
Out of stock

12

TAPPET This part replaces 12891-02F00.

12891-02F10

8
Out of stock

13

SHIM, TAPPET (T:2.30)

12892-41C00-230

8
Out of stock

13

SHIM, TAPPET (T:2.35)

12892-41C00-235

8
Out of stock

13

SHIM, TAPPET (T:2.40)

12892-41C00-240

8
Out of stock

13

SHIM, TAPPET (T:2.45)

12892-41C00-245

8
Out of stock

13

SHIM, TAPPET (T:2.50)

12892-41C00-250

8
Out of stock

13

SHIM, TAPPET (T:2.55)

12892-41C00-255

8
Out of stock

13

SHIM, TAPPET (T:2.60)

12892-41C00-260

8
Out of stock

13

SHIM, TAPPET (T:2.65)

12892-41C00-265

8
Out of stock

13

SHIM, TAPPET (T:2.70)

12892-41C00-270

8
Out of stock

13

SHIM, TAPPET (T:2.75)

12892-41C00-275

8
Out of stock

13

SHIM, TAPPET (T:2.80)

12892-41C00-280

8
Out of stock

13

SHIM, TAPPET (T:2.85)

12892-41C00-285

8
Out of stock

13

SHIM, TAPPET (T:2.90)

12892-41C00-290

8
Out of stock

13

SHIM, TAPPET (T:2.95)

12892-41C00-295

8
Out of stock

13

SHIM, TAPPET (T:3.00)

12892-41C00-300

8
Out of stock

13

SHIM, TAPPET (T:3.05)

12892-41C00-305

8
Out of stock

13

SHIM, TAPPET (T:3.10)

12892-41C00-310

8
Out of stock

13

SHIM, TAPPET (T:3.15)

12892-41C00-315

8
Out of stock

13

SHIM, TAPPET (T:3.20)

12892-41C00-320

8
Out of stock

13

SHIM, TAPPET (T:3.25)

12892-41C00-325

8
Out of stock

13

SHIM, TAPPET (T:3.30)

12892-41C00-330

8
Out of stock

13

SHIM, TAPPET (T:3.35)

12892-41C00-335

8
Out of stock

13

SHIM, TAPPET (T:3.40)

12892-41C00-340

8
Out of stock

13

SHIM, TAPPET (T:3.45)

12892-41C00-345

8
Out of stock

13

SHIM, TAPPET (T:3.50)

12892-41C00-350

8
Out of stock

14

SHIM SET, TAPPET INC.REF.NO.13-1%13-25 (5PCS.EACH) & NO.15 | OPT NOT SHOWN; Includes Item(s) 15

12800-41810

1
Out of stock

15

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

1
Out of stock
