2004 Kawasaki Super Sherpa (Canada Only) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

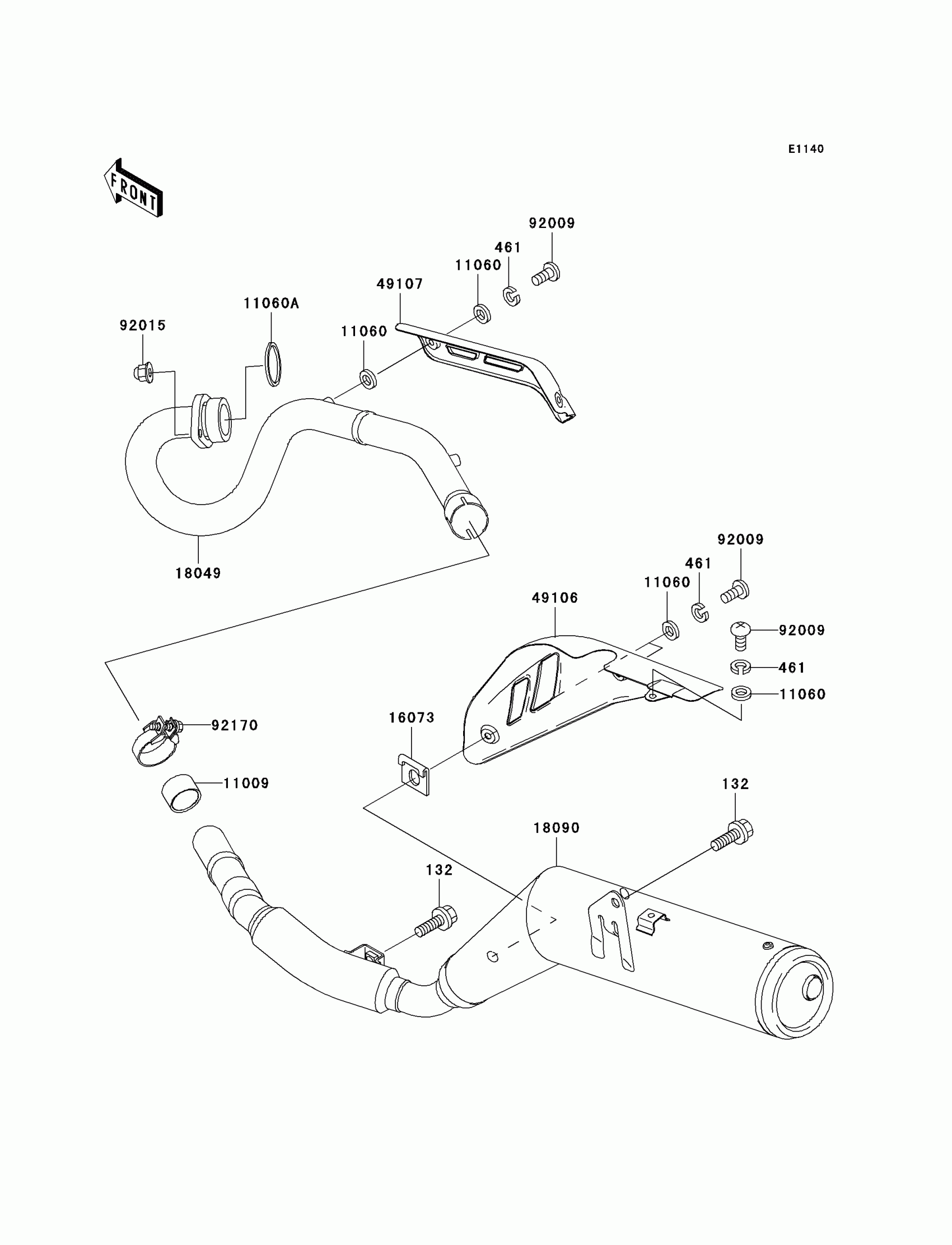

2004 Kawasaki Super Sherpa (Canada Only) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132Y0816

1
Out of stock

461

WASHER-SPRING,6MM

461S0600

1
Out of stock

11009

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11060

GASKET,6.2X11.5X1.5

11060-1109

1
Out of stock

11060A

GASKET,EXHAUST PIPE

11060-1203

1
Out of stock

16073

INSULATOR

16073-1113

1
Out of stock

18049

PIPE-EXHAUST

18049-1862

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1701

1
Out of stock

49106

COVER-MUFFLER

49106-1224

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1137

1
Out of stock

92009

SCREW

92009-1805

1
Out of stock

92015

NUT

92015-1923

1
Out of stock

92170

CLAMP,MUFFLER

92170-1454

1
Out of stock
