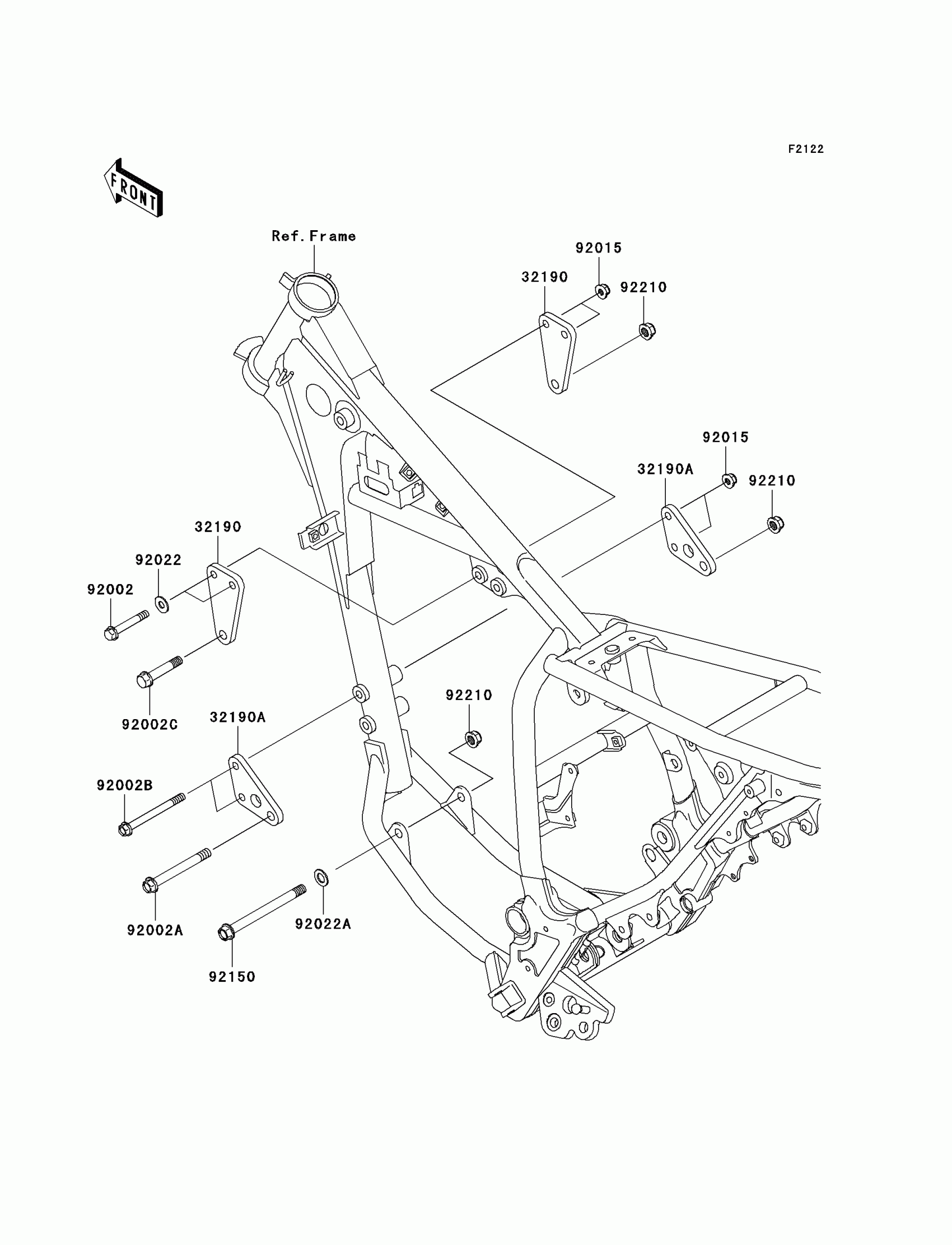

Kawasaki Super Sherpa (Canada Only) Engine Mount Diagram

#

Description
Price

32190

BRACKET-ENGINE,HEAD

32190-1099

$29.10

32190A

BRACKET-ENGINE,FR

32190-1100

$30.94

92002

BOLT

92002-1221

$6.25

92002A

BOLT,10X90

92002-1674

$16.78

92002B

BOLT,FLANGED,8X90

92002-1849

$7.78

92002C

BOLT,FLANGED,10X53

92002-1936

$6.55

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92022A

WASHER,11.5X20.5X1.6

92022-1768

$4.05

92150

BOLT,FLANGED,10X120

92150-1642

$16.78

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83
