2004 Kawasaki Super Sherpa (Canada Only) Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2004 Kawasaki Super Sherpa (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

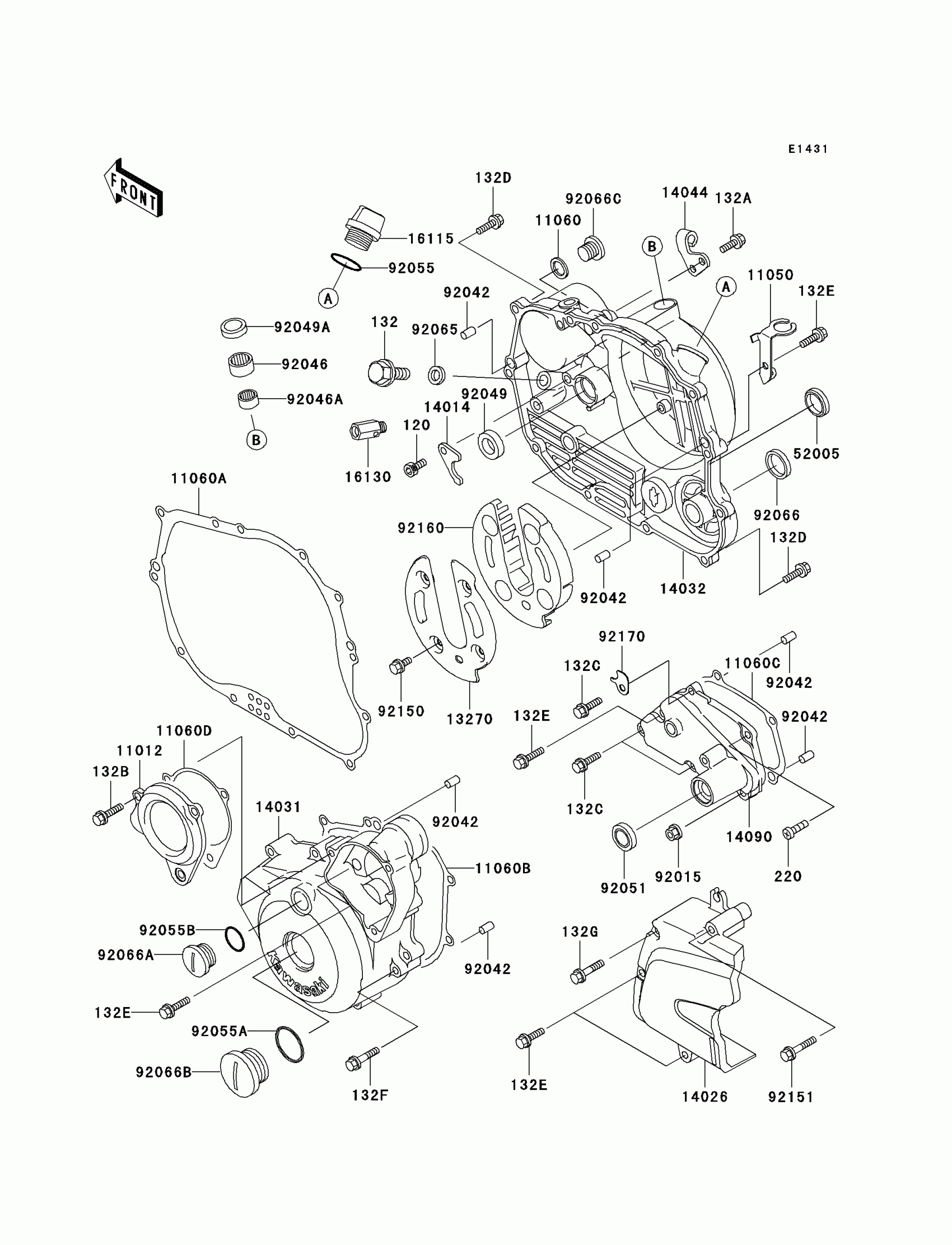

2004 Kawasaki Super Sherpa (Canada Only) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120P0610

1
Out of stock

132

BOLT-FLANGED-SMALL

132L0812

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X18

132Y0618

1
Out of stock

11012

CAP

11012-1994

1
Out of stock

11050

BRACKET

11050-1139

1
Out of stock

11060

GASKET,14X20X2

11060-1287

1
Out of stock

11060A

GASKET,CLUTCH COVER INNER

11060-1324

1
Out of stock

11060B

GASKET,GENERATOR COVER

11060-1326

1
Out of stock

11060C

GASKET,TRANSMISSION COVER

11060-1327

1
Out of stock

11060D

GASKET,CAP

11060-1641

1
Out of stock

13270

PLATE

13270-1781

1
Out of stock

14014

PLATE-POSITION

14014-1062

1
Out of stock

14026

COVER-CHAIN

14026-1248

1
Out of stock

14031

COVER-GENERATOR

14031-1341

1
Out of stock

14032

COVER-CLUTCH

14032-1458

1
Out of stock

14044

HOLDER-CABLE

14044-1093

1
Out of stock

14090

COVER,TRANSMISSION

14090-1793

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE

92046-1230

1
Out of stock

92049

SEAL-OIL

92049-1191

1
Out of stock

92049A

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O

92055-012

1
Out of stock

92055A

RING-O,27.7X2.4

92055-091

1
Out of stock

92055B

RING-O,20X2

92055-1146

1
Out of stock

92065

GASKET,8.5X16X1

92065-023

1
Out of stock

92066

PLUG,RCA297

92066-1411

1
Out of stock

92066A

PLUG

92066-1456

1
Out of stock

92066B

PLUG,CRANK

92066-1457

1
Out of stock

92066C

PLUG

92066-1481

1
Out of stock

92150

BOLT,5X8

92150-1406

1
Out of stock

92151

BOLT,6X55

92151-1287

1
Out of stock

92160

DAMPER

92160-1823

1
Out of stock

92170

CLAMP

92170-1785

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132F

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132G

BOLT-FLANGED-SMALL

132Y0645

1
Out of stock

220

SCREW-PAN-CROS

220X0616

1
Out of stock
