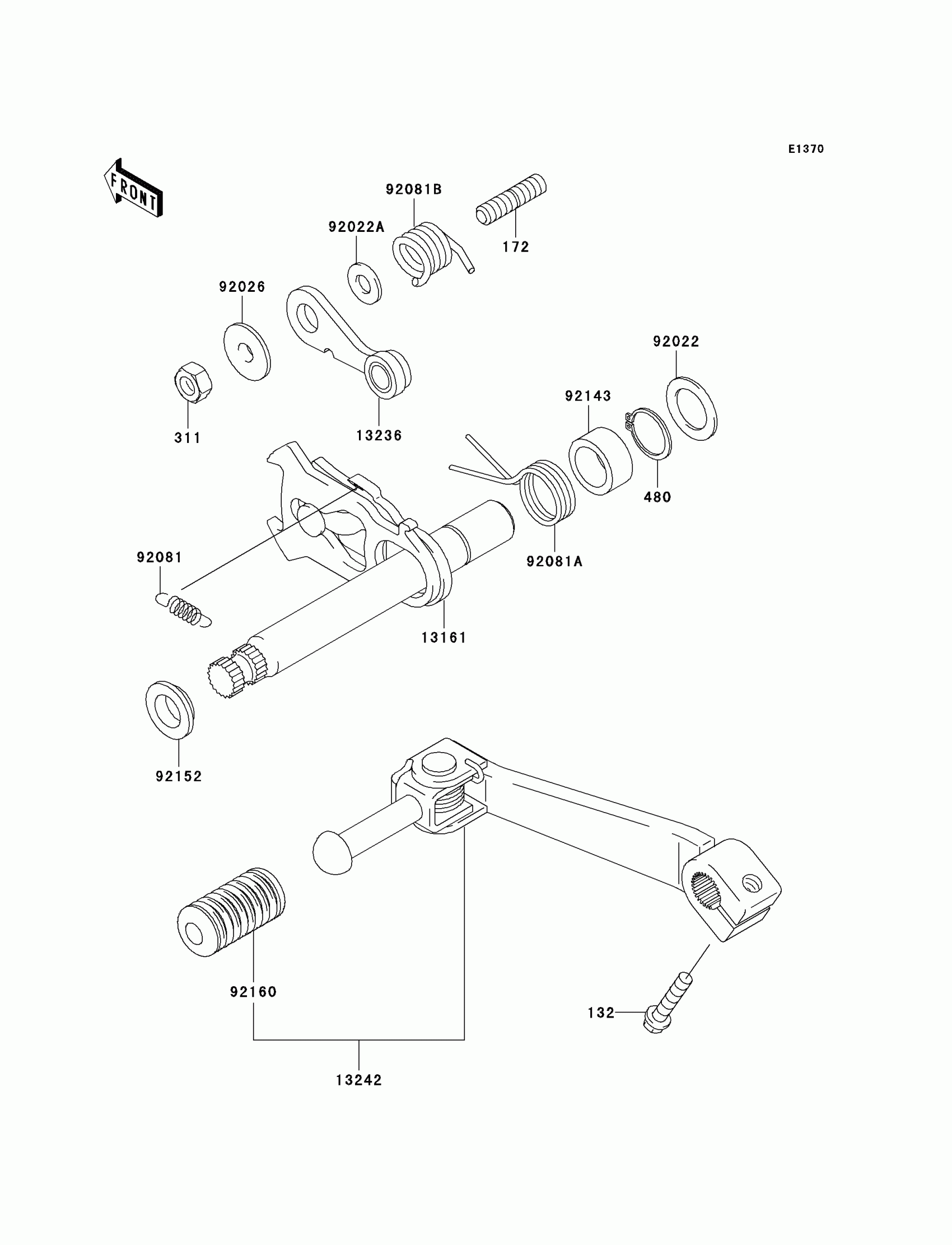

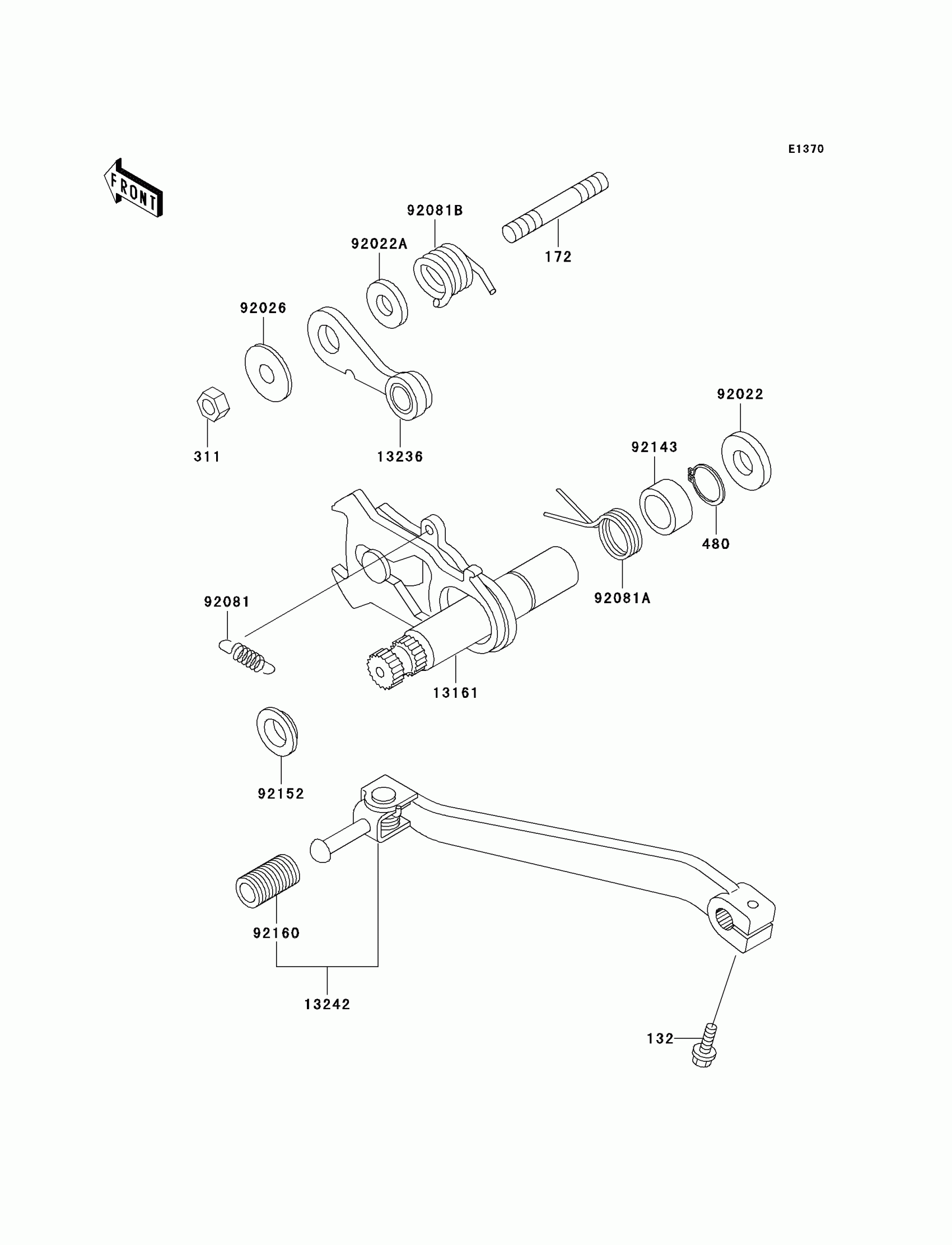

Kawasaki Super Sherpa (Canada Only) Gear Change Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

172

BOLT-STUD,6X12

172G0612

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1242

$72.91

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$18.36

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1344

$60.17

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,TENSION

92081-1129

$7.18

92081B

SPRING,POSITION LEVER

92081-1993

$5.66

92143

COLLAR

92143-1148

$3.57

92152

COLLAR

92152-1075

$3.19

92160

DAMPER,CHANGE PEDAL

92160-1108

$6.18
