2005 Ski-Doo Summit 800 Ho Steering System X Diagram

← All diagrams

Find the part on the Steering System X diagram for your 2005 Ski-Doo Summit 800 Ho, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

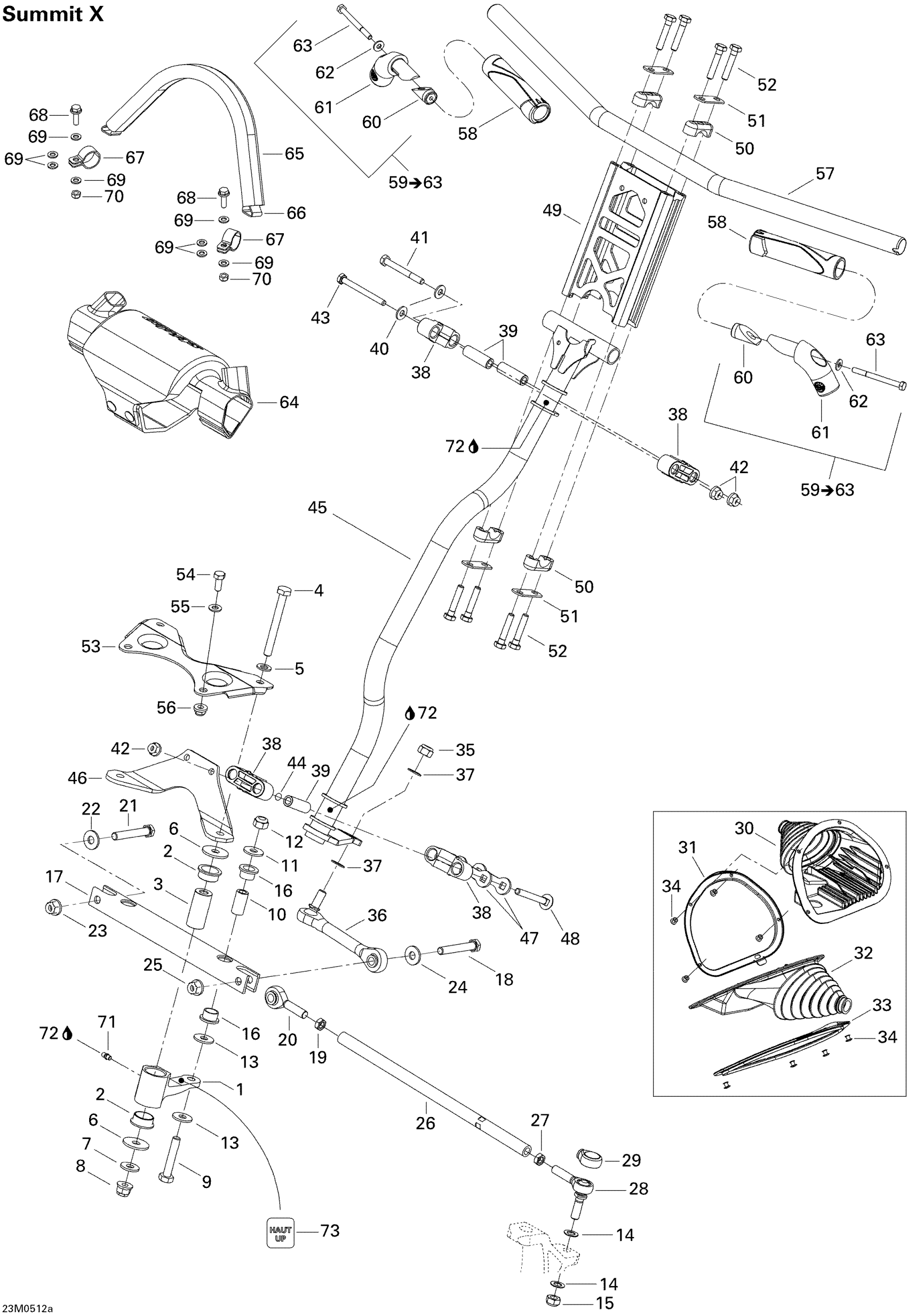

2005 Ski-Doo Summit 800 Ho Steering System X Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RH Swivel Arm

506151627

—

$110.74

In stock

1

LH Swivel Arm

506151628

—

$110.74

In stock

2

—

$5.52

In stock

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

—
Out of stock

5

Washer

503183800

2
Out of stock

6

Washer 10 mm

506150000

4

$2.63

In stock

7

Flat Washer M10 | 4X4

250200014

2
Out of stock

8

Flange Nut M10

732610084

2

$5.49

In stock

9

Hex. Screw M10 X 55

207005544

2
Out of stock

10

Pivot Bar

506151273

2

$15.00

In stock

11

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

12

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

13

Washer

250200032

4
Out of stock

14

Washer

503175800

4
Out of stock

15

2

$1.25

In stock

16

Swivel Bushing

503191555

4
Out of stock

17

SWIVEL BAR - Call your local BRP dealership

506151328

—
Out of stock

18

Hex. Screw M10 X 1.5 X 65

207006544

1
Out of stock

19

2

$0.72

In stock

20

LH Ball Joint

506151810

—
Out of stock

21

Hex. Screw M10 X 45

207004544

1
Out of stock

22

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

23

Hex. Flange Elastic Nut M10

233201414

1
Out of stock

24

FLAT WASHER - Call your local BRP dealership

224002251

—
Out of stock

25

Hex. Flange Elastic Nut M10

233201414

1
Out of stock

26

—

$14.75

In stock

27

RH Threaded Hex. Jam Nut M10

732610010

2
Out of stock

28

Ball Joint

506151811

—
Out of stock

29

—

$5.58

In stock

30

RH Tie-Rod Cap

506151725

1

$40.74

In stock

31

RH RETAINER RING - Call your local BRP dealership

506151356

—
Out of stock

32

LH Tie-Rod Cap

506151726

1

$40.74

In stock

33

LH RETAINER RING - Call your local BRP dealership

506151357

—
Out of stock

34

Avex Rivet

390909100

8
Out of stock

35

1

$1.25

In stock

36

—

$36.89

In stock

37

Washer

503175800

2
Out of stock

38

Housing Half

506150400

4

$7.31

In stock

39

Housing Bushing

506150500

4
Out of stock

40

Washer

503189157

2
Out of stock

41

Hex. Screw M8 X 70

207087044

1

$1.73

In stock

42

Hex. Flange Elastic Nut M8

233281414

4
Out of stock

43

Hex. Screw M8 X 80

207088044

1

$1.58

In stock

44

—

$6.51

In stock

45

Main Tube

506151772

—
Out of stock

46

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

—
Out of stock

47

Stopper Plate

506150600

2

$4.15

In stock

48

2

$1.11

In stock

49

—

$98.43

In stock

50

Steering Support

709400919

4

$20.74

In stock

51

Stiffner

709400509

4

$4.43

In stock

52

8

$1.83

In stock

53

—

$9.22

In stock

54

Hex. Screw M8 X 25

207182544

2

$0.74

In stock

55

Flat Washer 8 mm

234081410

2
Out of stock

56

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

57

HANDLE BAR - Call your local BRP dealership

506151782

—
Out of stock

58

HANDLE GRIP - Call your local BRP dealership

506152150

2
Out of stock

59

J-hook Ass'y | Includes 30 to 34

506151936

—
Out of stock

60

Wedge Lock

506151839

—
Out of stock

61

Short J-hook

506151837

—
Out of stock

62

Flat Washer

250200039

2
Out of stock

63

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

—
Out of stock

64

—

$145.35

In stock

65

Strap Ass'y | Package XMR

506152115

1
Out of stock

66

Strap Ass'y | Package XMR

506152115

1
Out of stock

67

Black Support Plate

506152536

2
Out of stock

68

2

$0.83

In stock

69

Flat Washer 6 mm

234061410

8

$1.04

In stock

70

Elastic Stop Nut M6

232561414

2
Out of stock

71

Grease Fitting

408200700

2
Out of stock

72

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

73

Upper Decal

516001750

—
Out of stock
