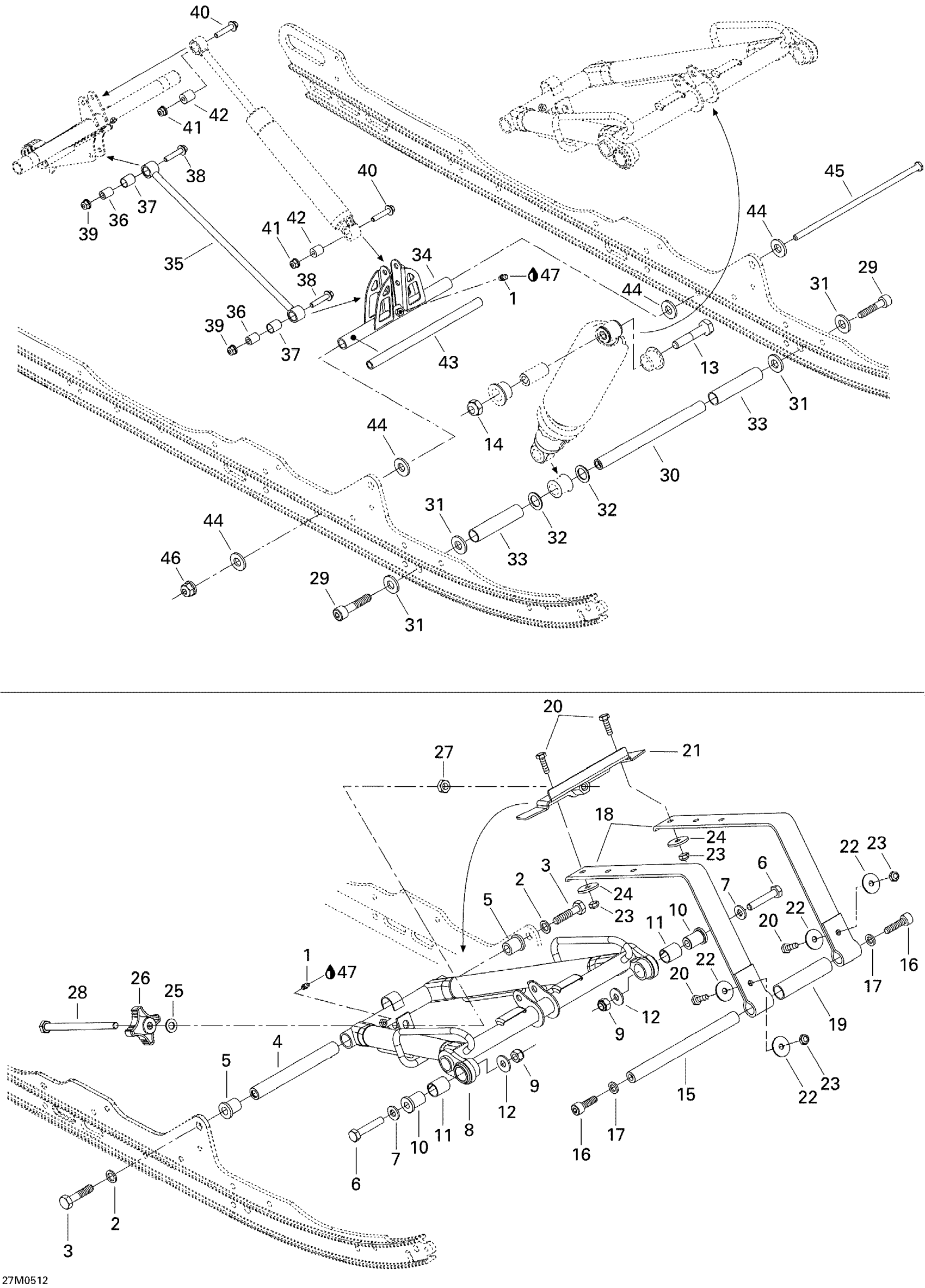

Ski-Doo Summit 600 HO, 2005 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

FRONT ARM - Call your local BRP dealership

503190840

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

EXTENSION - Call your local BRP dealership

503190373

Unavailable

11

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

12

Flat Washer M10 | 4X4

250200014

$1.17

13

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

17

Washer

503189564

Unavailable

18

Stopper Strap

503190806

Unavailable

19

SPACER - Call your local BRP dealership

503189936

Unavailable

20

Hex. Flange Screw M8 X 25

207682544

$0.90

21

Belt Bracket

503189806

Unavailable

22

Flat Washer

224081301

$0.86

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

Washer

503183100

$3.08

25

Washer

503183800

$3.20

26

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

27

Hex. Nut M10 X 1.5

232006414

$1.11

28

BOLT, LONG - Call your local BRP dealership

250000062

Unavailable

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

31

Washer

503189276

Unavailable

32

Washer

503189273

Unavailable

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

35

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

36

BUSHING - Call your local BRP dealership

503189133

Unavailable

37

CUSHION - Call your local BRP dealership

503189625

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

Unavailable

39

Elastic Flange Nut M8

250100025

Unavailable

40

Hex. Flange Screw M8 X 40

207684044

Unavailable

41

Elastic Flange Nut M8

250100025

Unavailable

42

Bushing

414936000

Unavailable

43

Pivot Arm Axle

503189156

Unavailable

44

Washer

503189157

$3.20

45

Bolt M8 X 248mm

503192440

Unavailable

46

Elastic Flange Nut M8

250100025

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
