2005 Ski-Doo Summit 600 Ho Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2005 Ski-Doo Summit 600 Ho, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

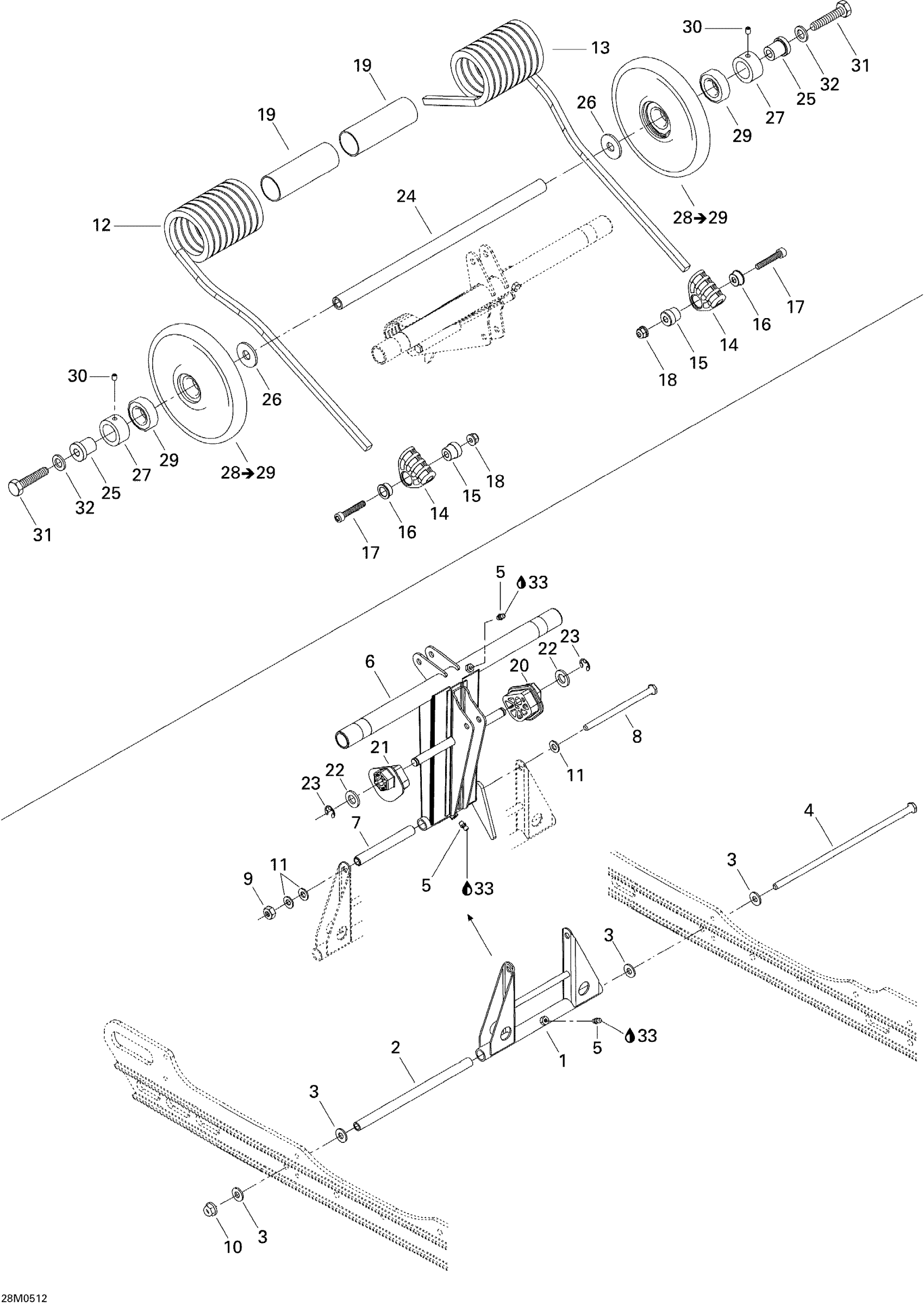

2005 Ski-Doo Summit 600 Ho Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Pivot Arm

503189793

—
Out of stock

2

Pivot Arm Axle

503189156

1
Out of stock

3

Washer

503189157

4
Out of stock

4

Bolt M8 X 248mm

503192440

1
Out of stock

5

Grease Fitting

408200700

3
Out of stock

6

Rear Arm

503191057

—
Out of stock

7

Upper Axle, Pivot Arm

503144300

1
Out of stock

8

Bolt M8, Short

732601197

1

$15.06

In stock

9

Hex. Elastic Stop Nut M8

232581414

1
Out of stock

10

Hex. Flange Elastic Nut M8

233281414

1
Out of stock

11

Flat Washer 8 mm

234081410

3
Out of stock

12

RH SPRING, SQUARE - Call your local BRP dealership | Europe

503190773

—
Out of stock

13

LH SPRING, SQUARE - Call your local BRP dealership | Europe

503190775

—
Out of stock

14

Spring Support

503189657

2
Out of stock

15

Spring Guide Axle

503188934

—
Out of stock

16

CUSHION RETAINER - Call your local BRP dealership

503188929

—
Out of stock

17

2

$0.74

In stock

18

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

19

BUSHING - Call your local BRP dealership

503190333

—
Out of stock

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

—
Out of stock

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

—
Out of stock

22

Flat Washer 12 mm

234021410

2
Out of stock

23

E-Circlip

293370013

2
Out of stock

24

SHAFT - Call your local BRP dealership

503190387

—
Out of stock

25

BUSHING - Call your local BRP dealership

503190422

—
Out of stock

26

Washer

503190328

2
Out of stock

27

Retaining Ring

503168800

2
Out of stock

28

Wheel 165 Ass'y

503190816

—
Out of stock

29

Ball Bearing

293350115

2
Out of stock

30

Socket Set Screw M6 X 8

206260844

2
Out of stock

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

2
Out of stock

32

Washer

732900049

2

$0.57

In stock

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock
