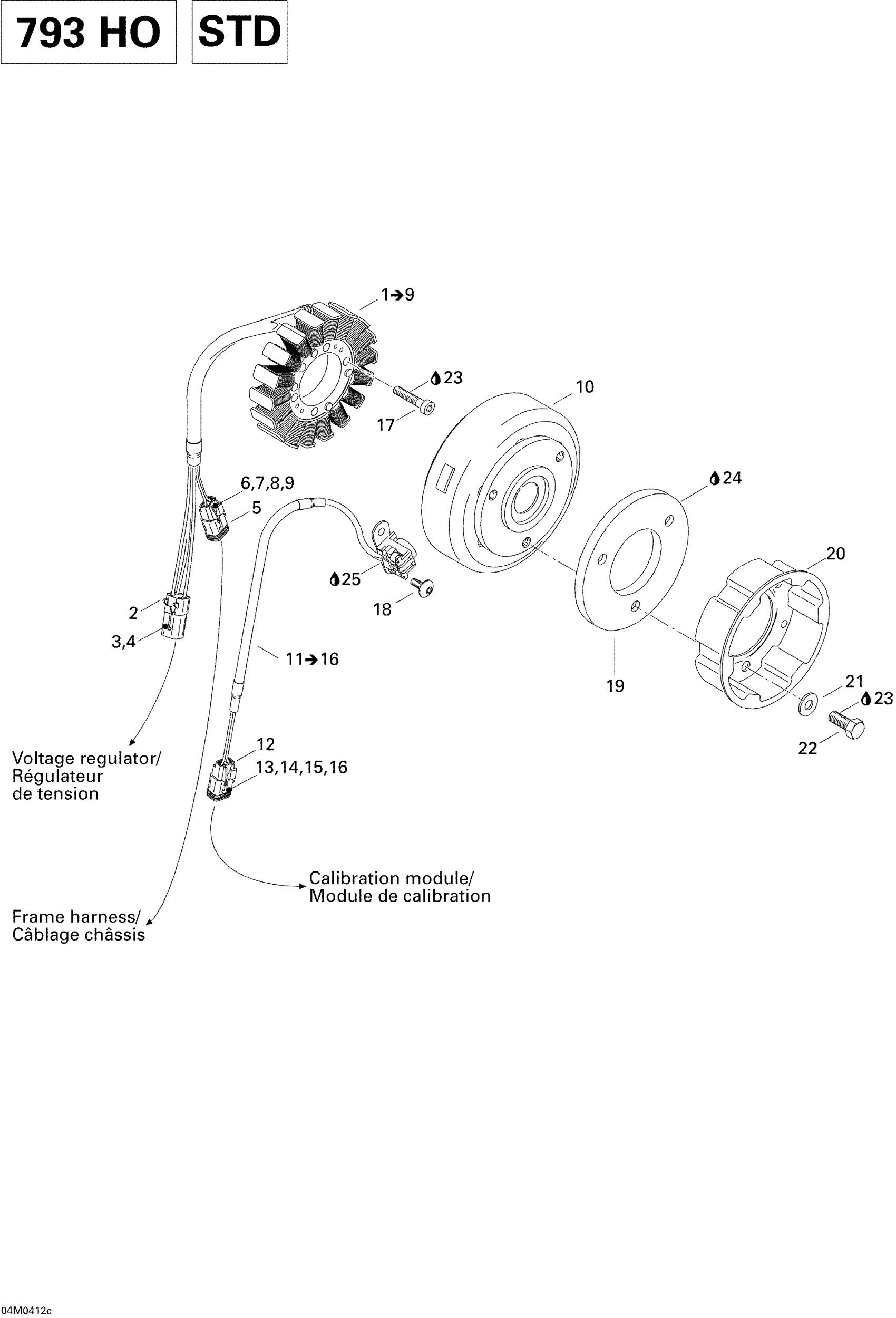

Ski-Doo Summit 800 HO, 2004 03- Magneto (12V, 360W) (793 HO) (STD) Diagram

#

Description
Price

1

Stator Plate A

420889905

$319.49

2

Female Terminal Housing, 4 Circuits

278001473

$26.99

3

Male Terminal

515175568

$9.12

4

Female Lock, 4 Circuits

278001474

$3.49

5

Female Terminal Housing, 2 Circuits

515175670

$8.39

6

Female Terminal

278000632

$2.09

7

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

8

Female Lock, 2 Circuits

515175675

$4.55

9

Sealing Cap

293000052

$3.19

10

FLYWHEEL - Call your local BRP dealership

410922953

Unavailable

11

Pick-Up

410922951

$114.99

12

Female Terminal Housing, 2 Circuits

515175670

$8.39

13

Female Terminal

278000632

$2.09

14

Female Terminal | Includes 2d,3a,3b,5a,10,11d

278000661

Unavailable

15

Female Lock, 2 Circuits

515175675

$4.55

16

Sealing Cap

293000052

$3.19

17

Socket Head Screw M6 X 30

205063044

$1.69

18

Torx Screw M6 X 16

420640324

$2.11

19

Flywheel

420866756

Unavailable

20

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

21

Flat Washer

420827405

$1.69

22

Hex. Screw M8 X 20

207182044

$0.74

23

Loctite 243, 10 ml

293800060

$21.49

24

Sealant Loctite 648

219703000

$45.99

25

Not Available As Spare Part - Friction Washer

Unavailable
