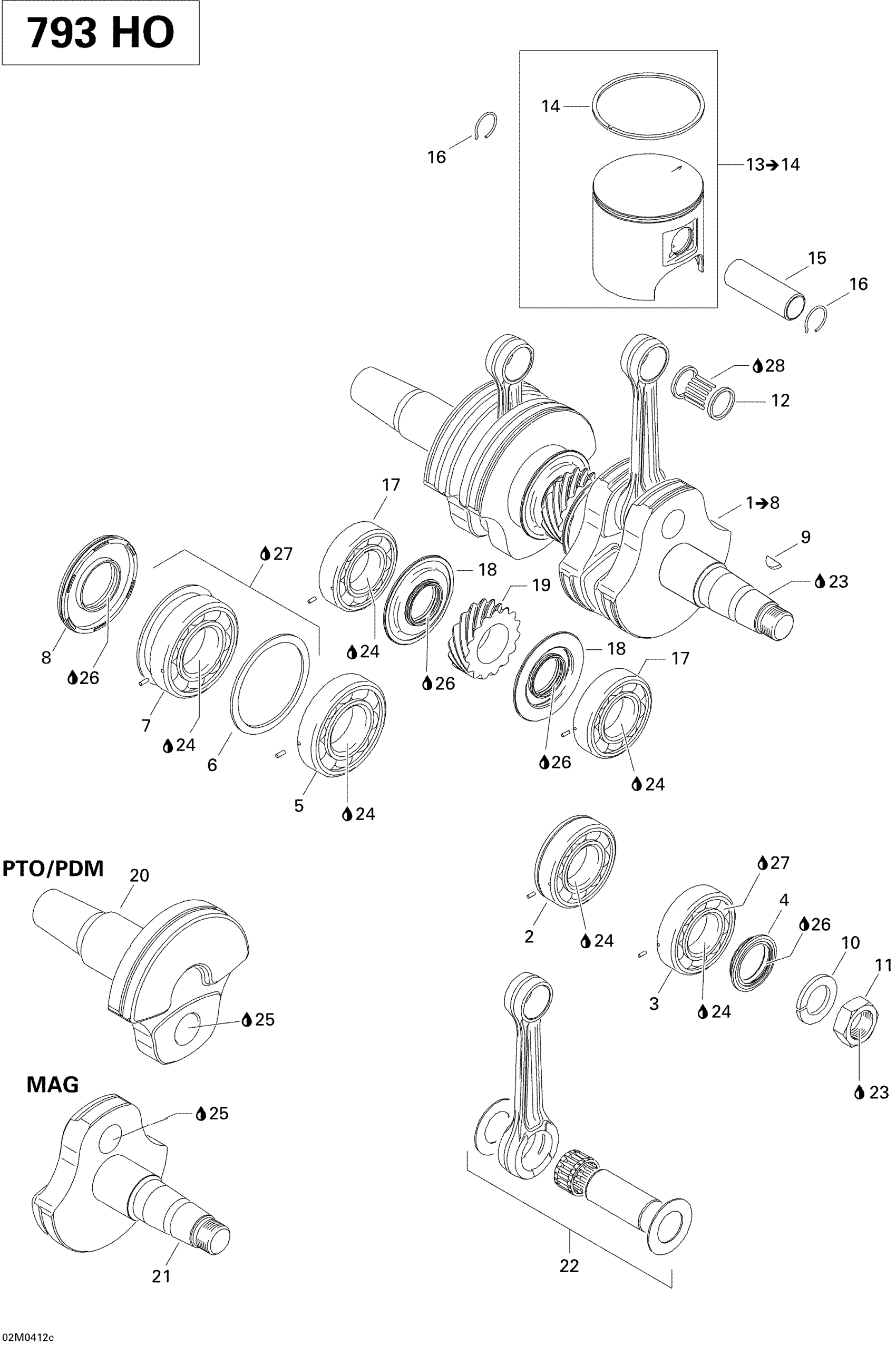

Ski-Doo Summit 800 HO, 2004 01- Crankshaft And Pistons (793 HO) Diagram

#

Description
Price

1

Crankshaft | INCLUDES ITEMS 1 TO 8

420889673

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing | With drive pin

420832702

$89.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Woodruff Key

420246015

$3.17

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

Needle Bearing

420832445

$27.49

13

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

$228.99

14

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

15

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$35.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

21

Crankshaft, Mag

420819061

Unavailable

22

Rod Repair Kit, Mag

420889108

Unavailable

Rod Repair Kit, PTO

420889109

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

Petamo Grease, GHY133N, 400 g

420899271

$67.99

27

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
