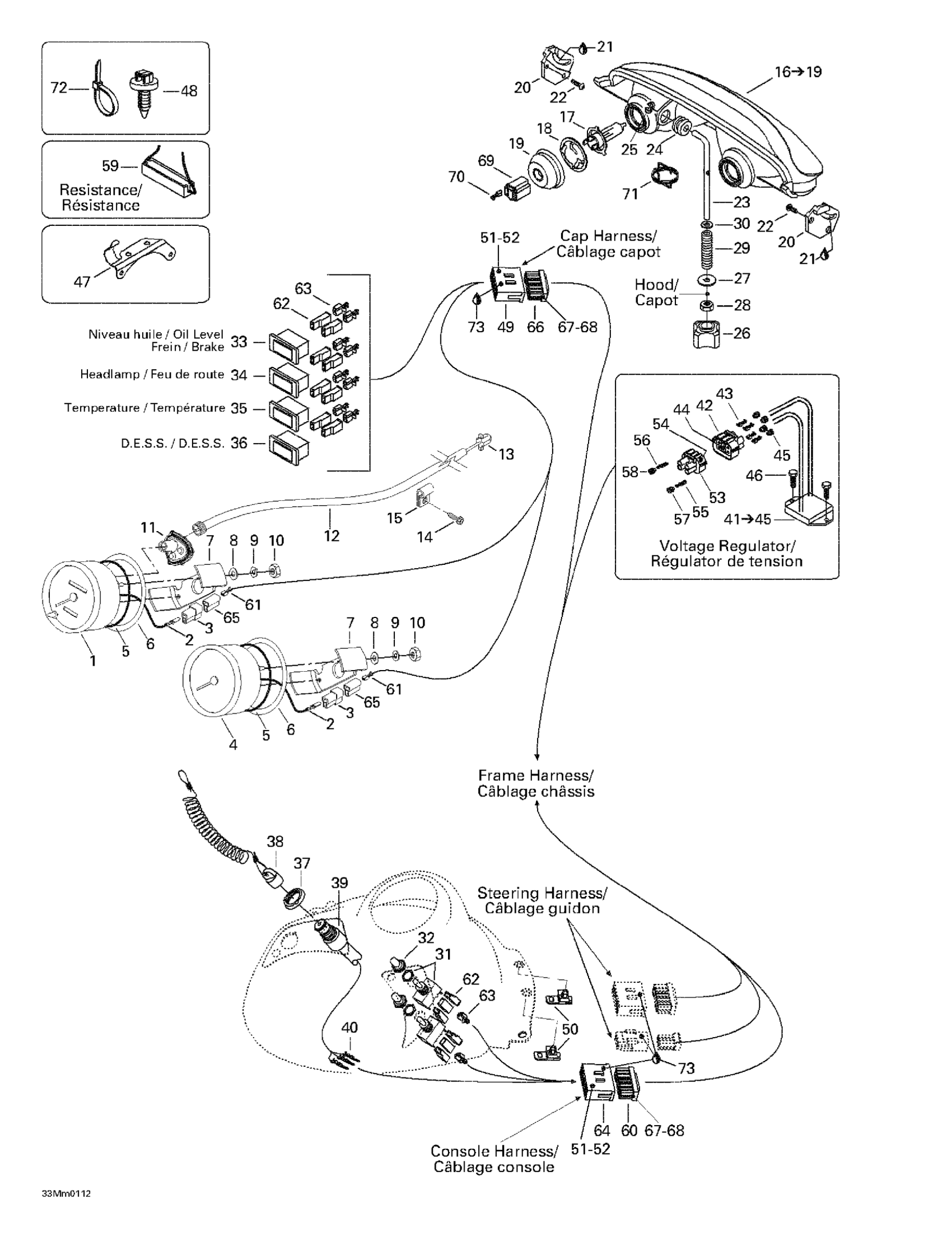

Ski-Doo Summit 600/700/800, 2001 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175340

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

415101500

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Open Clamp

414176000

$1.99

16

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

17

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

18

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

19

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

20

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Headlamp Screw

732601315

Unavailable

23

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

24

Grommet - Call your local BRP dealership

415100800

Unavailable

25

Push Nut

732610072

$2.19

26

Handle - Call your local BRP dealership

515175548

Unavailable

27

Washer

224060251

$0.58

28

Elastic Stop Nut M6

232561414

$0.55

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Flat Washer 6 mm

234061410

$1.36

31

Switch (Heating Grip) | FREERIDE

410107300

$35.99

32

Switch Cover

515175281

$15.99

33

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

34

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

35

Pilot Lamp (Temperature) | Formula Deluxe 500. Formula Deluxe 600.

515175593

Unavailable

36

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

37

Safety Nut (DESS Switch)

278002963

$3.28

38

DESS

515178284

$84.99

39

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

40

Male Terminal

515175232

$1.58

41

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

42

Female Terminal Housing (4 circuits)

409208000

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

44

Female Lock

409013400

Unavailable

45

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

46

Hex. Flange Screw M6 X 16

210261650

$1.67

47

Cable Support

515175254

Unavailable

48

Mount Dart

293730040

$1.04

49

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

50

Housing Support

515175283

$9.19

51

Male Terminal

515175232

$1.58

52

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

53

Male Terminal Housing (4 circuits)

409207700

Unavailable

54

Male Lock

409013100

Unavailable

55

Male Terminal

409013000

Unavailable

56

Male Terminal

409010900

Unavailable

57

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

58

Seal

409208300

Unavailable

59

Resistance

515175241

$17.99

60

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

61

Female Terminal

561503100

$2.41

62

Female Terminal Housing, 1 Circuit

409010400

$7.62

63

Female Terminal

409010100

$5.61

64

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

65

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

66

Female Terminal Housing, 13 Circuits

515175350

$14.24

67

Female Terminal

515175231

$4.39

68

Female Terminal

515175282

$7.86

69

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

71

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

73

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

74

Frame Harness (Not Shown)

515175549

Unavailable

75

Console Harness (Not Shown)

515175147

Unavailable

76

Hood Harness (Not Shown)

515175550

Unavailable
