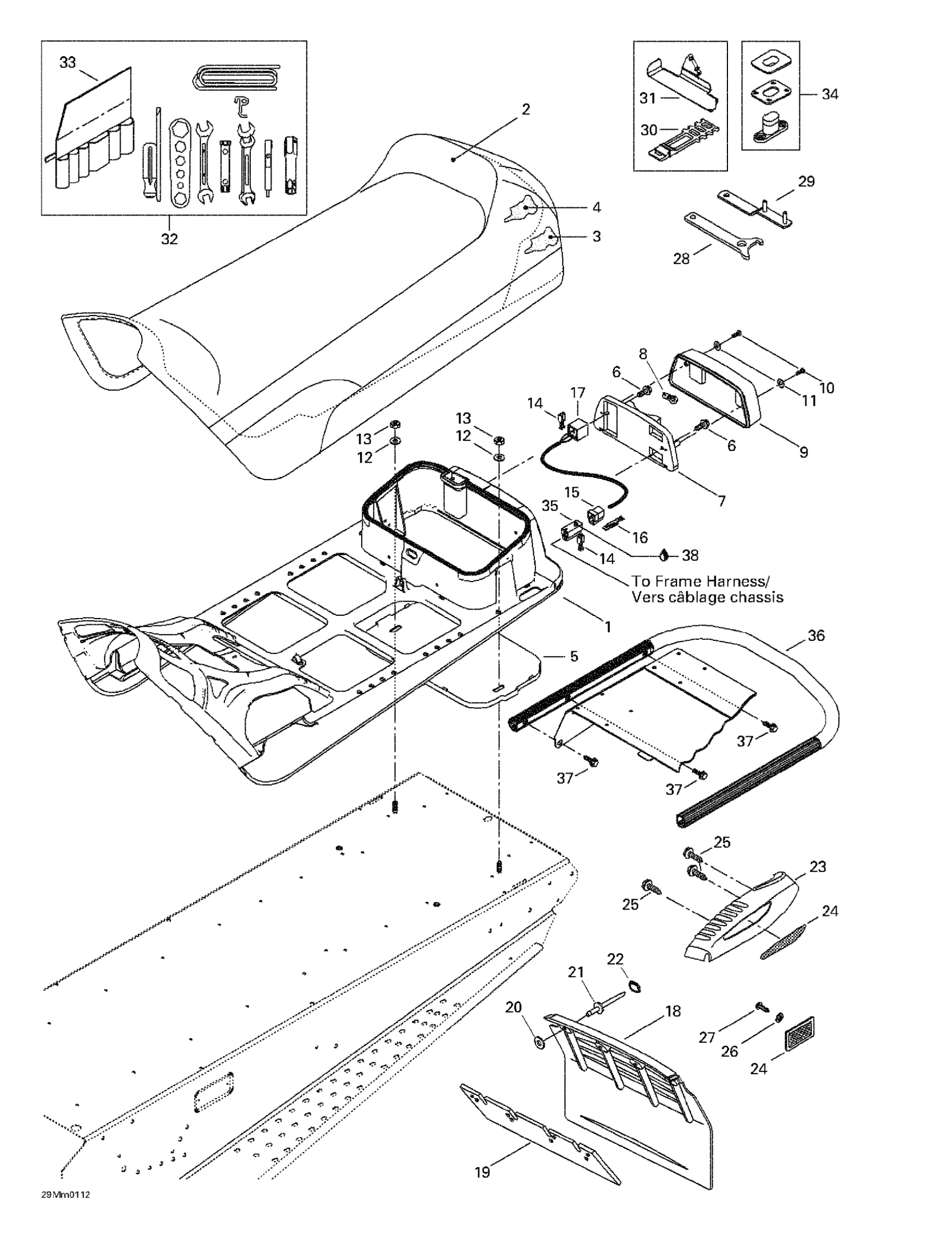

Ski-Doo Summit 600/700/800, 2001 09- Seat And Accessories Diagram
#
Description
Price
1
Seat Base
572107600
Unavailable
2
Seat Cover (STD, H.M., F.H.)
510003892
Unavailable
Seat Cover (X, H.M.X) | Summit 700. Summit 800.
510003901
Unavailable
3
Seat Foam
510003840
Unavailable
4
Seat Foam | MX Z 380 F. MX Z 500 F.
510003841
Unavailable
5
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
6
Hex. Screw #10 X 1"
732603006
Unavailable
7
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
11
Washer - Call your local BRP dealership
414516400
Unavailable
15
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
16
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
17
Female Terminal Housing, 3 Circuits
515175250
Unavailable
18
SNOW GUARD - Call your local BRP dealership
572092100
Unavailable
19
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
22
Cap
415073300
Unavailable
23
RH Moulding | RENEGADE
572097300
Unavailable
LH Moulding | RENEGADE
572097400
Unavailable
24
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
RH Reflector, Red
516000237
Unavailable
LH Reflector, Red
516000238
Unavailable
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
25
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
26
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
27
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
30
LATCH - Call your local BRP dealership
570069700
Unavailable
31
Tool Kit Support
518321999
Unavailable
33
Tool Bag
520000047
Unavailable
34
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
35
Female Housing
409204300
Unavailable
36
Rear bumper | ADRENALINE & X
518322430
Unavailable
REAR BUMPER - Call your local BRP dealership
518322438
Unavailable
Rear bumper | HIGHMARK & HIGHMARK X Summit 700. Summit 800 HO.
518322431
Unavailable
