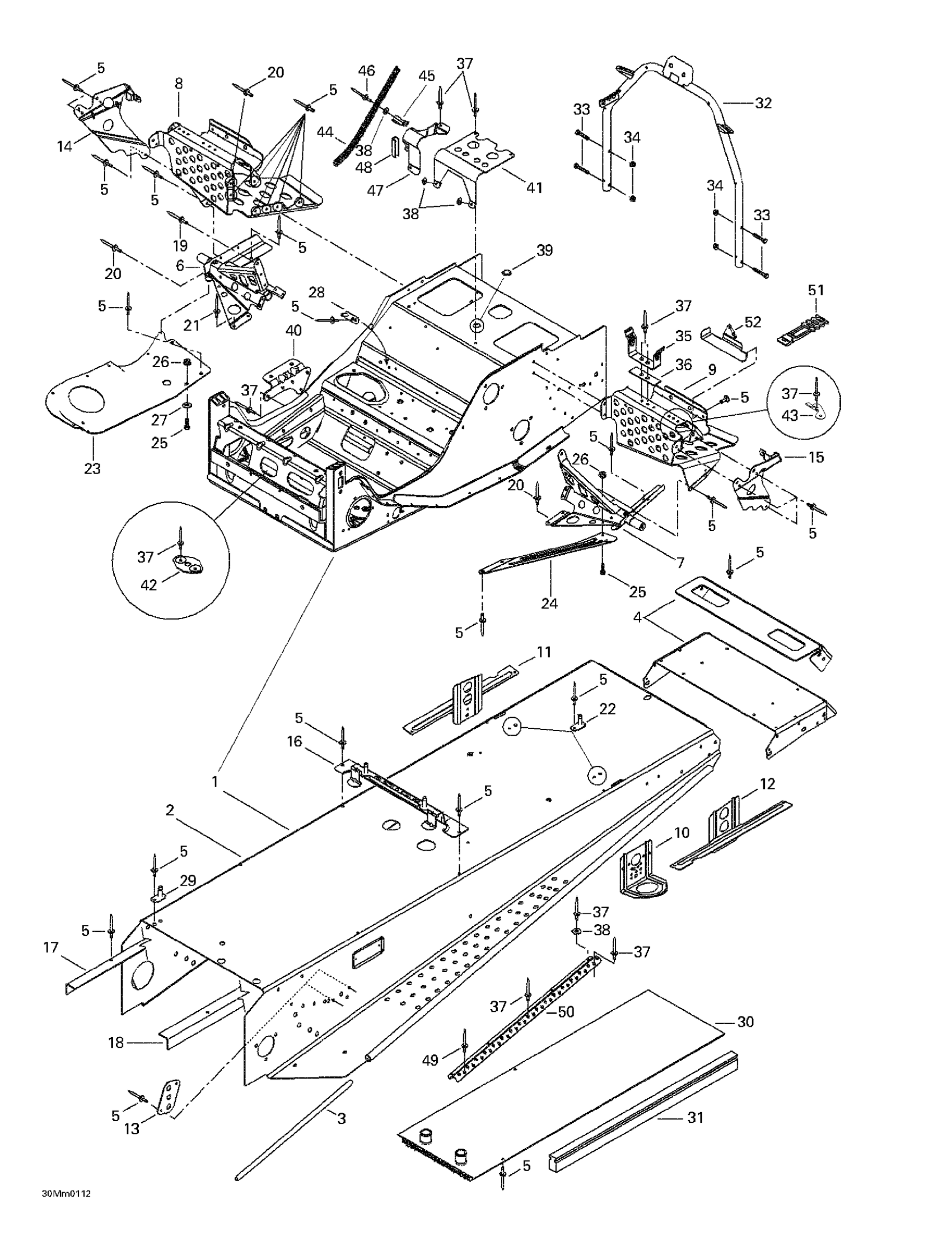

Ski-Doo Summit 600/700/800, 2001 09- Frame And Accessories Diagram

#

Description
Price

1

Frame(H.M., H.M.X) | Includes 1 - 30. Summit 700. Summit 800.

518322491

Unavailable

1

Frame(STD, X) | Includes 1 - 31.

518322492

Unavailable

1

Frame(Foothill) | Includes 1 - 31. Summit 800.

518322568

Unavailable

2

Forming Frame(STD, X) | Includes 2 - 5.

518322537

Unavailable

2

Forming Frame(H.M., H.M.X) | Includes 2 - 6. Summit 700. Summit 800.

518322536

Unavailable

2

Forming Frame (Foothill) | Summit 800.

518322452

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap (STD, X)

518322299

Unavailable

Frame Extention (H.M., H.M.X) | Summit 700. Summit 800.

518322303

Unavailable

Rear Cap (Foothill) | Summit 800.

518321304

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518322393

Unavailable

9

LH Footrest

518322394

Unavailable

10

Front Bracket

518321495

Unavailable

11

RH Rear Bracket

518321502

Unavailable

RHRear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321965

Unavailable

RH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.

518322627

Unavailable

12

LH Rear Bracket

518321506

Unavailable

LH Rear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321966

Unavailable

LH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.

518322628

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

14

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

16

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

Tank bracket | HIGHMARK & HIGHMARK X Summit 700.. HIGHMARK X EXTREME Summit 800 HO.

518322022

Unavailable

17

RH Frame Reinforcement

518322395

Unavailable

RHFrameReinforcement(STD,X,H.M.,H.M.X)

518322357

Unavailable

18

LH Frame Reinforcement (STD, X, H.M.,

518322359

Unavailable

LH Frame Reinforcement

518322396

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402300

$0.75

22

Guide

518319730

Unavailable

23

RH Bottom Pan Plate | 600

518319760

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

25

Hex. Screw M5 X 20

207152044

$0.90

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

28

Double Bracket

518322391

Unavailable

29

Guide

518321604

Unavailable

30

Rear Radiator (H.M., H.M.X) | Summit 700. Summit 800.

518322413

Unavailable

30

Rear Radiator (STD, X) | Includes 22 - 23.

518322354

Unavailable

Rear Radiator | Includes 28 - 29.

517296310

Unavailable

31

Radiator Protector

518322360

Unavailable

Radiator Protector | Grand Touring 500.

518321656

Unavailable

32

Handle Support

518321957

Unavailable

33

Hex. Flange Screw M6 X 35

207663544

$0.90

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Belt Guard Bracket

518202100

$17.49

36

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

37

Pop Rivet 3/16"

390402200

$0.35

38

Flat Washer

517225900

$0.18

39

CAP - Call your local BRP dealership

414859400

Unavailable

40

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

41

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

42

Plate Bracket

518201307

Unavailable

43

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

44

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

45

Open Clamp

518321570

$7.69

46

Pop Rivet 3/16"

390406500

$0.88

47

Hose Support

518319762

Unavailable

48

Was 271000110 Protection Trim

219704353

$15.99

49

Pop Rivet 3/16"

390402300

$0.75

50

STRIP - Call your local BRP dealership

518319405

Unavailable

51

LATCH - Call your local BRP dealership

570069700

Unavailable

52

Tool Kit Support

518321999

Unavailable
