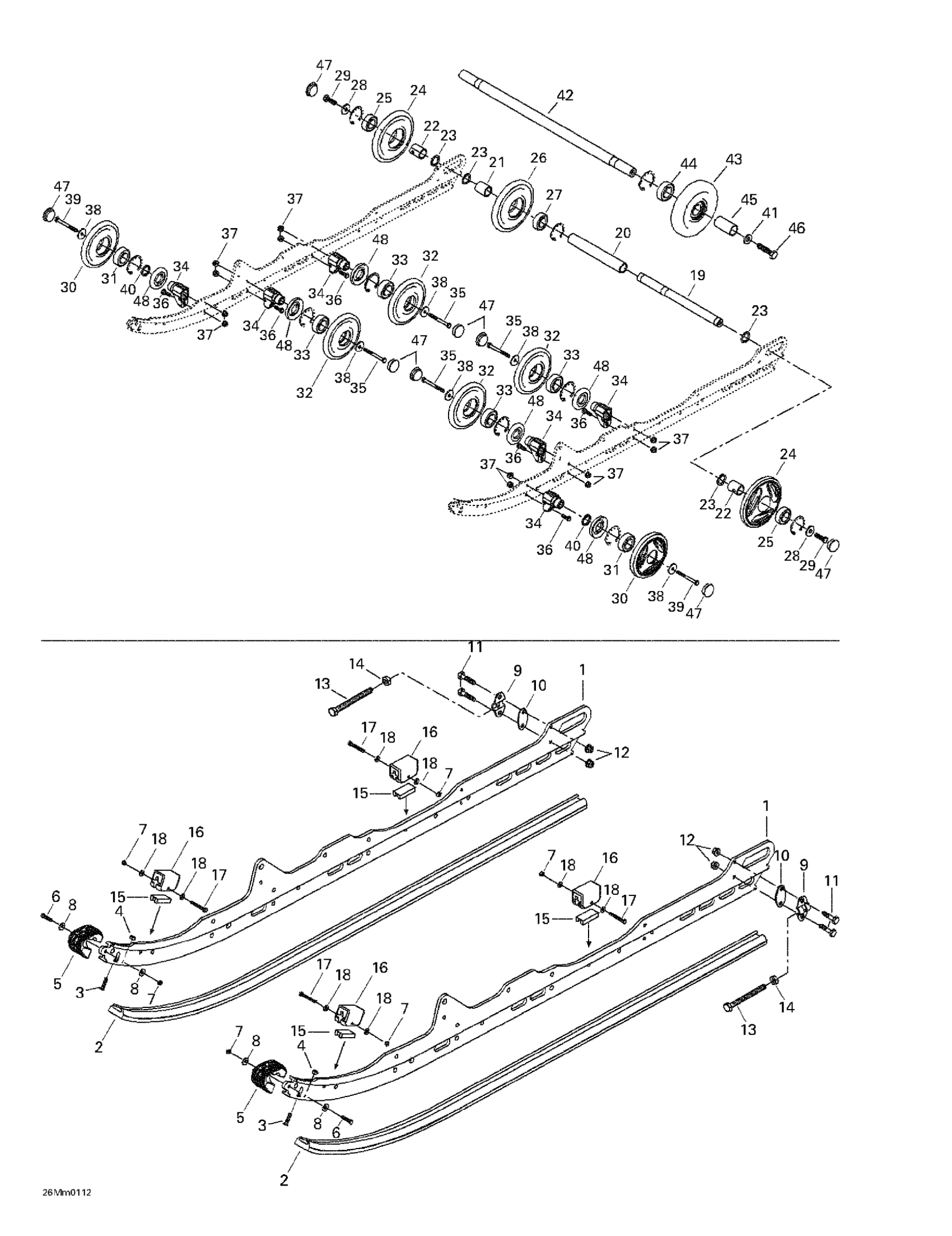

Ski-Doo Summit 600/700/800, 2001 08- Rear Suspension Diagram

#

Description
Price

1

Runner (144") | HIGHMARK & HIGHMARK X Summit 700. Summit 800 HO.

503189561

Unavailable

Runner (151") | HIGHMARK X EXTREME Summit 800 HO.

503189581

Unavailable

2

Rail | HIGHMARK (BLACK B-160) Summit 700.. HIGHMARK X (BLACK B-160) Summit 800 HO.

503189606

Unavailable

RUNNER SHOE (151) - Call your local BRP dealership | Summit 700. Summit 800.

503189631

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.26

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

Reinforcement Stopper

572084800

$12.99

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Rear Axle

503167900

$139.99

20

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

21

Inner Spacer

503182900

$12.58

22

Outer Spacer

503189809

$18.89

23

Washer

503180400

$3.49

24

Wheel 165 mm Yellow

503190817

$51.99

25

Ball Bearing

293350115

$12.11

26

Wheel 165" | Includes 670 to 670b

503194127

$51.99

27

Ball Bearing

293350115

$12.11

28

Washer

503183300

$5.82

29

Hex. Screw With Nylon

250000019

$1.69

30

Wheel 135, Yellow

503190785

$33.99

31

Ball Bearing

293350115

$12.11

32

Wheel 135

503191029

$33.99

33

Ball Bearing

293350115

$12.11

34

SUPPORT - Call your local BRP dealership

503190389

Unavailable

35

Hex. Screw M8 X 80

207088044

$1.68

36

Hex. Screw M8 X 25

207182544

$0.90

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

Washer

503183100

$3.17

39

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

40

WASHER - Call your local BRP dealership

503173700

Unavailable

41

Washer

503189157

$3.28

42

Wheel Support Axle

503153600

Unavailable

43

Idler Wheel | Includes 48 - 49.

572043500

$33.99

44

Ball Bearing

405404600

$25.99

45

Spacer

572048300

Unavailable

46

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

47

Wheel Cap

570063600

$3.49

48

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
