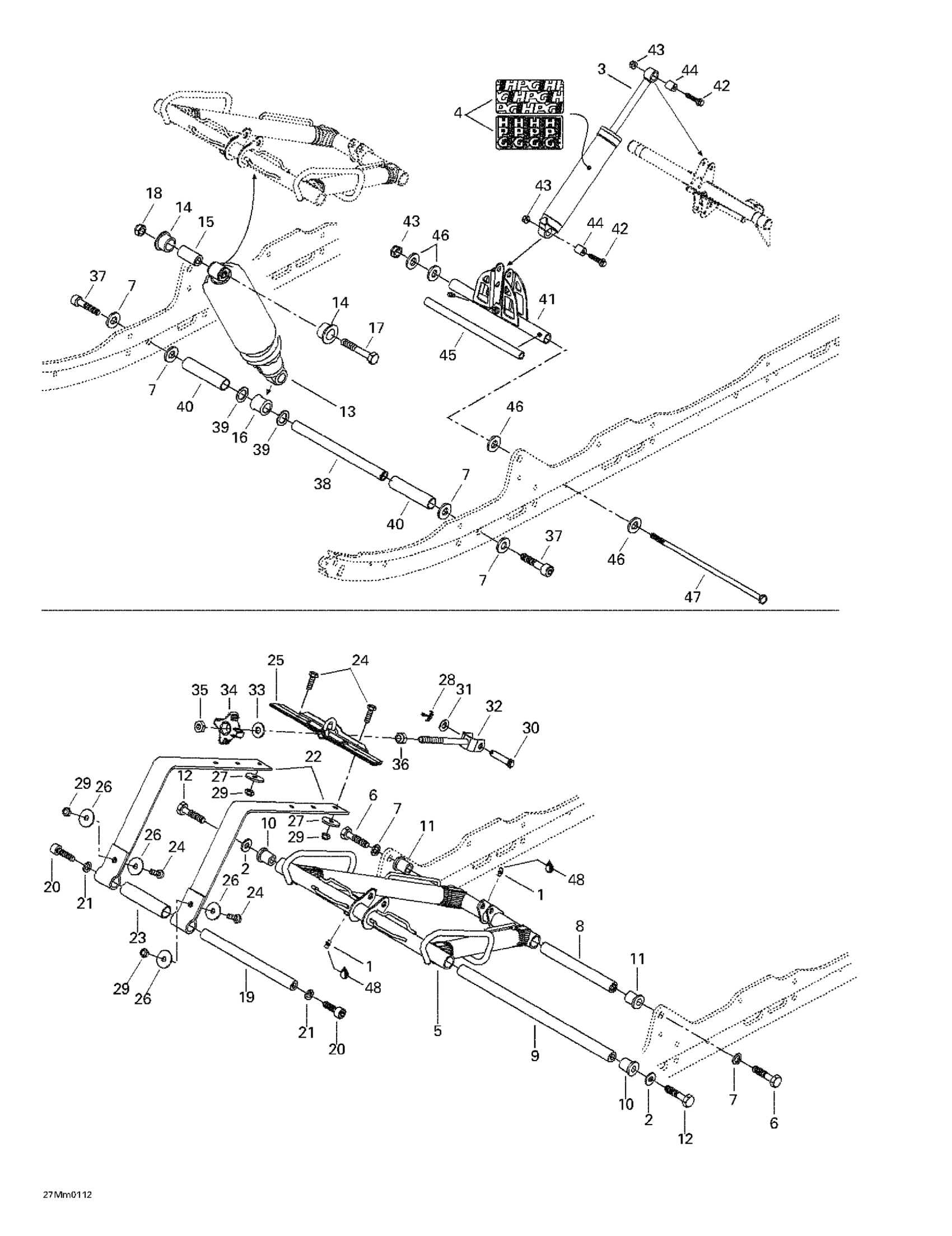

Ski-Doo Summit 600/700/800, 2001 08- Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.49

2

Washer

732900049

$0.58

3

Rear Shock (STD / H.M.)

503189395

Unavailable

Rear Shock | (Summit 600 R (Sport)) (Europe) Summit 600.

503189669

Unavailable

Rear Shock (X / H.M. X) | Summit 700. Summit 800.

503189527

Unavailable

Rear Shock (Europe)

503189492

Unavailable

4

HPG Decal (Europe)

516000182

Unavailable

Shock Decal

516000183

Unavailable

5

Front Arm

503189636

Unavailable

6

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

7

Washer

503189276

$3.28

8

SHAFT - Call your local BRP dealership

503189313

Unavailable

9

SHAFT - Call your local BRP dealership

503190387

Unavailable

10

Bushing

503189324

$14.15

11

CUSHION - Call your local BRP dealership

503189323

Unavailable

12

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

13

Center Shock (STD / H.M.)

503189394

Unavailable

Center Shock (Europe) | (Summit 600 R (Sport)) (Europe) Summit 600.

503189178

Unavailable

Center Shock (X / H.M. X) | Summit 700. Summit 800.

503189528

Unavailable

Center Shock (Europe X) | Summit 800.

503189076

Unavailable

14

Urethane Bushing

503189117

$8.19

15

Bushing | Includes 240d to 240d1

503189282

$4.34

16

Bushing

503189271

$13.99

17

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

18

Elastic Locking Nut M10 X 1.5

233601416

$1.69

19

AXLE - Call your local BRP dealership

503189562

Unavailable

20

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

21

Washer

503189564

$0.74

22

Stopper strap

503189450

Unavailable

23

Spacer

503189265

$4.99

24

Hex. Screw M8 X 25

207182544

$0.90

25

Belt Bracket

503188400

Unavailable

26

Flat Washer

224081301

$0.88

27

Washer

503183100

$3.17

28

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

Clevis Pin

415016200

Unavailable

31

Flat Washer 10 mm

234001410

$1.26

32

Stopper

503169300

Unavailable

33

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

34

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

Hex. Nut M10 X 1.5

232006414

$1.37

37

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

38

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

39

Washer

503189273

$3.28

40

SPACER - Call your local BRP dealership

503189274

Unavailable

41

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

42

Hex. Flange Screw M8 X 40

207684044

$1.48

43

Hex. Flange Elastic Nut M8

233281414

$1.47

44

Bushing

414936000

$13.99

45

Pivot Arm Axle

503189156

$21.99

46

Washer

503189157

$3.28

47

Bolt M8 X 248mm

503192440

$30.49

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
