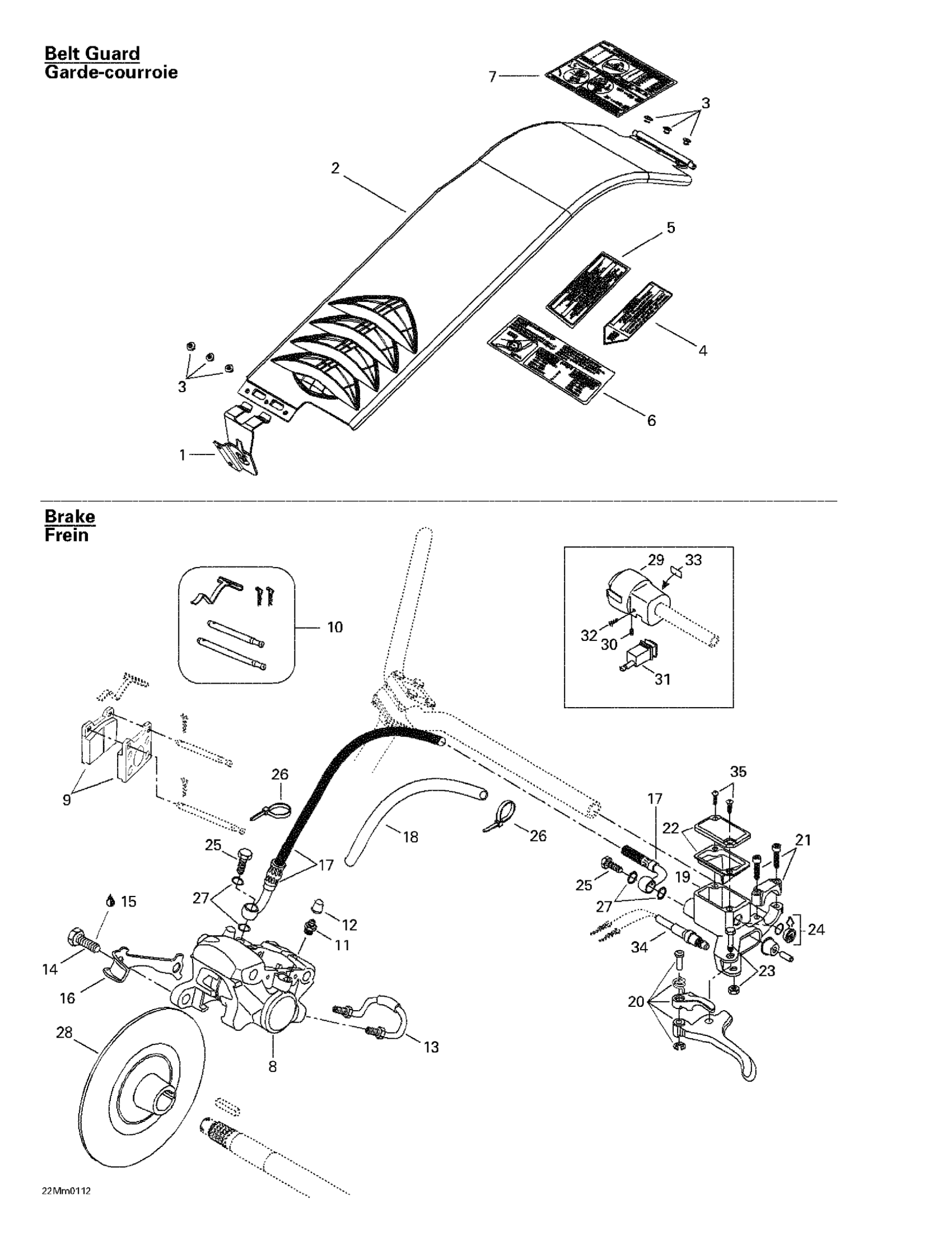

Ski-Doo Summit 600/700/800, 2001 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Bracket

417300001

Unavailable

2

Belt Guard Ass'y([Eur 700,800], F.H.) | Includes 2 - 5. Summit 700. Summit 800.

417300176

Unavailable

2

Belt Guard Ass'y (600, [Can/US 800]) | Includes 2 - 6. Summit 600. Summit 800.

417300178

Unavailable

2

Belt Guard Ass'y (Can/US 700) | Includes 2 - 6. Summit 700. Summit 800.

417300134

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Label Caution

516000681

Unavailable

Caution Label ([Eur 700,800], F.H.) | Summit 700. Summit 800.

516001014

Unavailable

6

Label Calibration

516001202

Unavailable

Calibration Label (Can/US 700) | Summit 700.

516000284

Unavailable

7

Suspension Adjustment Decal | (X, HMX) Summit 800.

516000955

Unavailable

Suspension Adjustment Decal

418001706

Unavailable

Calibration Label (RENEGADE) | MX Z 600. MX Z 700. MX Z 800.

516000709

Unavailable

8

Caliper (X) | MX Z 600. MX Z 700. MX Z 800.

507032204

Unavailable

8

Caliper | Includes 10 - 15.

414920000

Unavailable

9

Brake Pad Kit

415129172

$52.99

10

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

11

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

12

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

13

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

14

Hex. Screw M10 X 35

207103544

$1.58

15

Loctite 243, 10 ml

293800060

$21.49

16

Locking Tab

507029900

Unavailable

17

HOSE - Call your local BRP dealership

507032237

Unavailable

HOSE (RACING) - Call your local BRP dealership | MX-Z 700.

415064600

Unavailable

18

Tubing 6 Mm 3000Mm Long

219704425

$13.75

19

Master Cylinder | Includes 1 to 8

507032293

Unavailable

20

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

21

Clamp And Screw Kit

507032477

$23.99

22

Cap

415029900

$41.49

23

Pin Ass'y

415030000

$19.99

24

WINDOW - Call your local BRP dealership

414990600

Unavailable

25

Banjo Bolt

414920500

$8.68

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

27

Washer

414920600

$1.90

28

Brake Disk | X & Renegade X

507032301

Unavailable

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

29

Brake Housing

515175307

Unavailable

30

Socket Set Screw M8 X 10

414440800

$4.12

31

Light Switch | 500 F.

515175390

Unavailable

32

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

33

Switch Decal

415025500

Unavailable

34

Microswitch

507032366

$98.99

35

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
