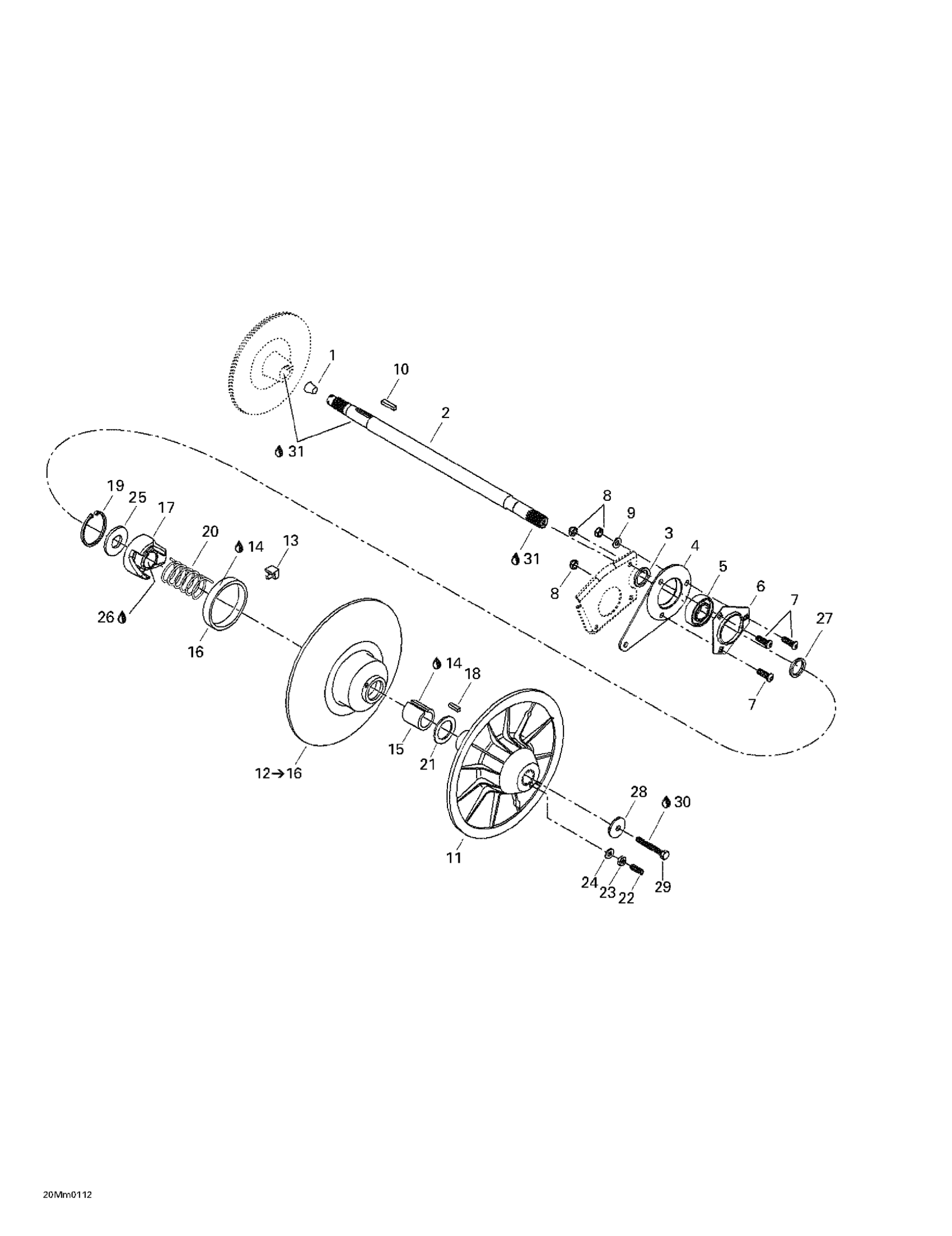

Ski-Doo Summit 600/700/800, 2001 05- Driven Pulley Diagram
#
Description
Price
1
CORK - Call your local BRP dealership
414784800
Unavailable
2
COUNTER SHAFT - Call your local BRP dealership
501026300
Unavailable
6
FLANGE - Call your local BRP dealership
501025000
Unavailable
7
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
10
KEY - Call your local BRP dealership
507021300
Unavailable
11
Fixed Flange | 380 F.
417126477
Unavailable
12
Sliding Flange Ass’Y | Includes 3 - 7.
417126486
Unavailable
13
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
15
BUSHING - Call your local BRP dealership
415011200
Unavailable
16
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
17
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
Cam 50 Deg./47 Deg | Summit 800.
417126339
Unavailable
18
Key
414820800
Unavailable
19
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
20
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
YELLOW SPRING - Call your local BRP dealership
415092800
Unavailable
21
Thrust Washer
504141900
Unavailable
22
Socket Set Screw M6 X 30
206263044
Unavailable
24
WASHER - Call your local BRP dealership
420245370
Unavailable
25
Washer
504141800
Unavailable
26
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
29
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
31
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
