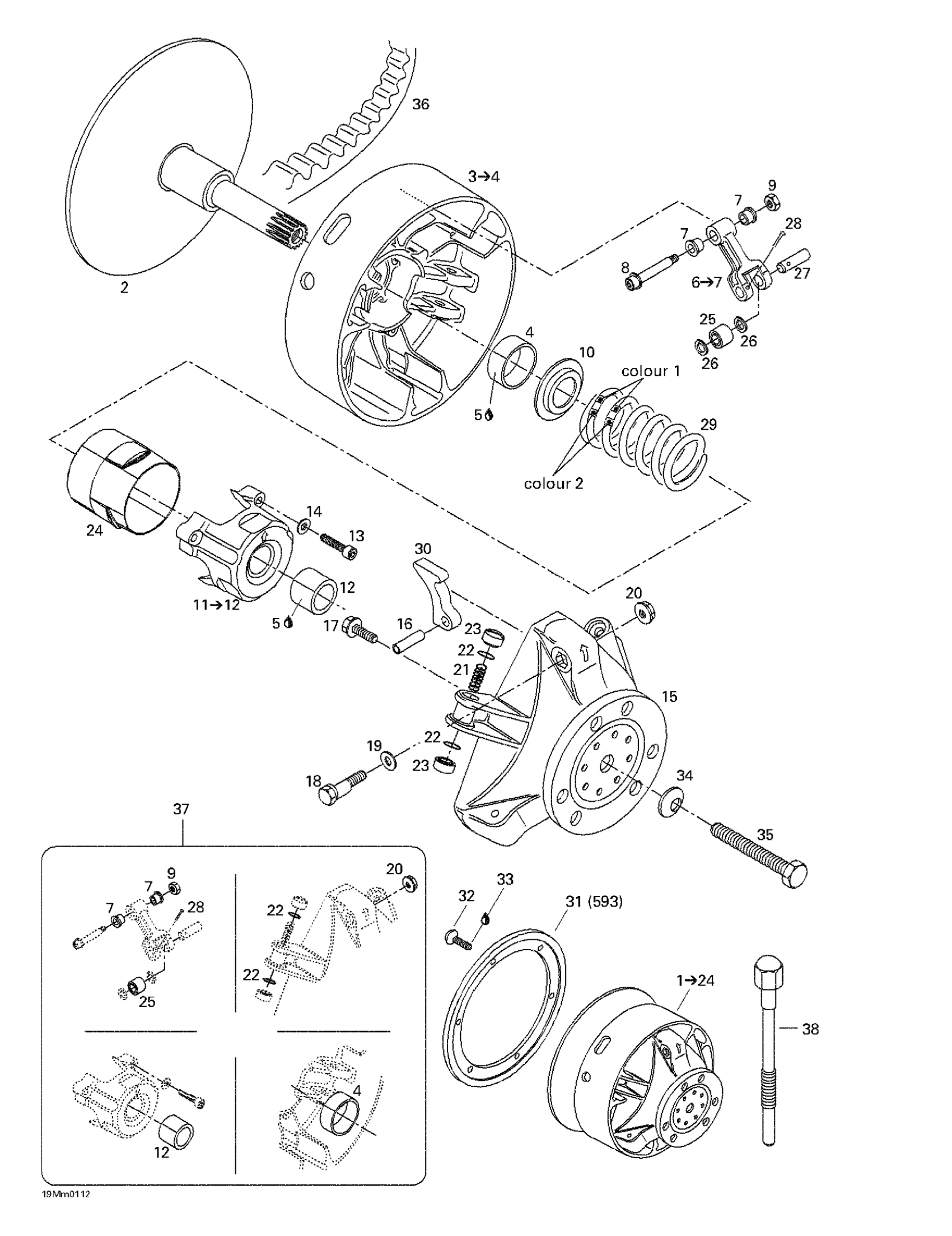

Ski-Doo Summit 600/700/800, 2001 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 24.

417222369

Unavailable

Drive Pulley Ass'y | Includes 1 - 23.

417222366

Unavailable

2

Fixed Flange

417222411

$539.99

FIXED FLANGE ASS'Y - Call your local BRP dealership

417222130

Unavailable

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

Sliding Flange Ass’Y | 800 ADRENALINE MANUEL. 800 ADRENALINE ELECTRIC. 800 RENEGADE MANUEL. 800 RENEGADE ELECTRIC MX Z 800.

417222027

Unavailable

4

Bushing

417004201

$25.99

5

Loctite 609, 10 ml

413703100

$26.99

6

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

7

Bushing

417004305

$11.52

8

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

12

Bushing

417004501

$24.99

13

Socket Head Screw M6 X 40

250000038

$7.59

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Guard

417222176

Unavailable

25

Roller

417222947

$21.99

26

Stopper Washer

417004302

$15.90

27

Pin

417004308

$13.99

Pin

417004309

$25.99

28

Cotter Pin

250400060

$2.00

29

SPRING, ROSE/WHITE - Call your local BRP dealership | North America

414991400

Unavailable

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

30

Ramp 287 | MX Z 440 F. MX Z 500 F.

417005287

Unavailable

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

31

Flywheel | 600

417222399

Unavailable

32

Hex. Screw M8 X 16

236281684

$4.12

33

Loctite 271, 10 ml

293800005

$26.99

34

Spring Washer 14 mm

250200006

$6.99

35

Drive Pulley Bolt

417120000

$65.49

36

Drive Belt

417300585

$154.99

37

Clutch Repair Kit

417006100

$189.99

38

Puller This part replaces 529022400.

529000064

$71.99
