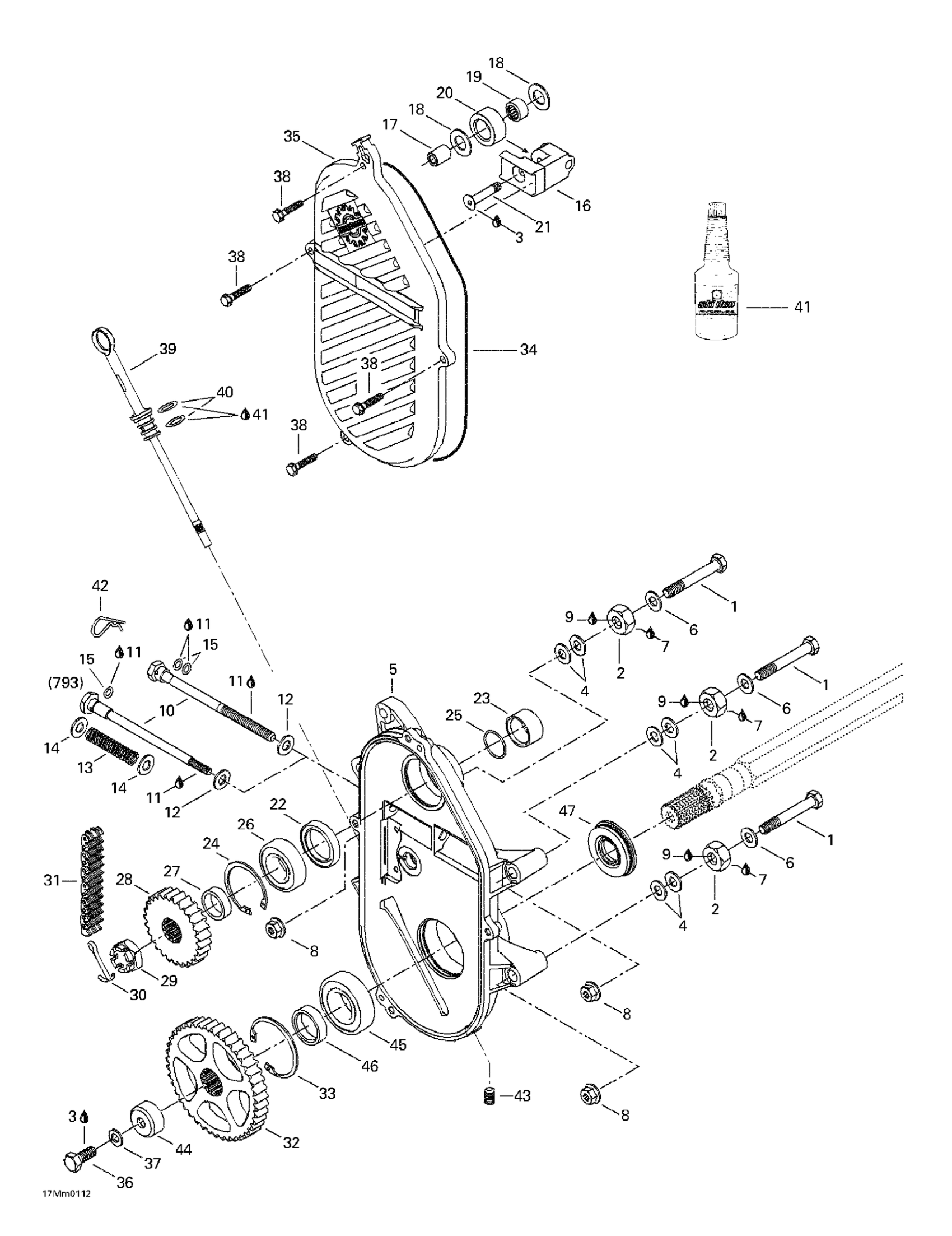

Ski-Doo Summit 600/700/800, 2001 05- Chaincase Diagram

#

Description
Price

1

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

2

Spacer

504083800

Unavailable

3

Loctite 271, 10 ml

293800005

$26.99

4

WASHER - Call your local BRP dealership

504073700

Unavailable

5

CHAINCASE - Call your local BRP dealership

504151776

Unavailable

Chaincase

504151938

Unavailable

6

Washer

503183800

$3.28

7

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

8

Hex. Flange Elastic Nut M10

233201414

$1.58

9

Loctite 243, 10 ml

293800060

$21.49

10

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

Adjustment Screw

504151946

Unavailable

11

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

12

Flat Washer 10 mm

234001410

$1.26

Washer | 7415/7416. 7417/7418.

503189148

$2.85

13

SPRING - Call your local BRP dealership

504151945

Unavailable

14

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable

15

O-Ring

414484400

$7.51

O-RING - Call your local BRP dealership

504151954

Unavailable

16

Chain Tensioner

504151940

Unavailable

17

SPACER - Call your local BRP dealership

504080200

Unavailable

18

WASHER - Call your local BRP dealership

504080300

Unavailable

19

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

20

ROLLER - Call your local BRP dealership

414531300

Unavailable

21

SCREW - Call your local BRP dealership

732601144

Unavailable

22

Oil Seal

293200158

$14.22

23

SPACER - Call your local BRP dealership

507031500

Unavailable

24

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

25

O-RING - Call your local BRP dealership

414876700

Unavailable

26

Ball Bearing

293350115

$12.11

27

SHIM - Call your local BRP dealership

504147200

Unavailable

28

Sprocket, 19 Teeth

504153783

$111.49

Sprocket, 21 Teeth

504096200

$93.99

29

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

30

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

31

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

32

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

33

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

34

O-Ring

415046400

$24.99

35

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

36

Hex. Screw M10 X 25

207102544

$1.37

37

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

38

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

39

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

40

O-RING - Call your local BRP dealership

414969400

Unavailable

41

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

42

Hair Pin

414575600

$1.89

43

Plug 1/8”-27

504151921

$4.19

44

Cap

501022400

Unavailable

45

Ball Bearing

504152005

$46.49

46

Inner Shim

501021800

Unavailable

47

Oil Seal Ass'y

504151918

$20.49
