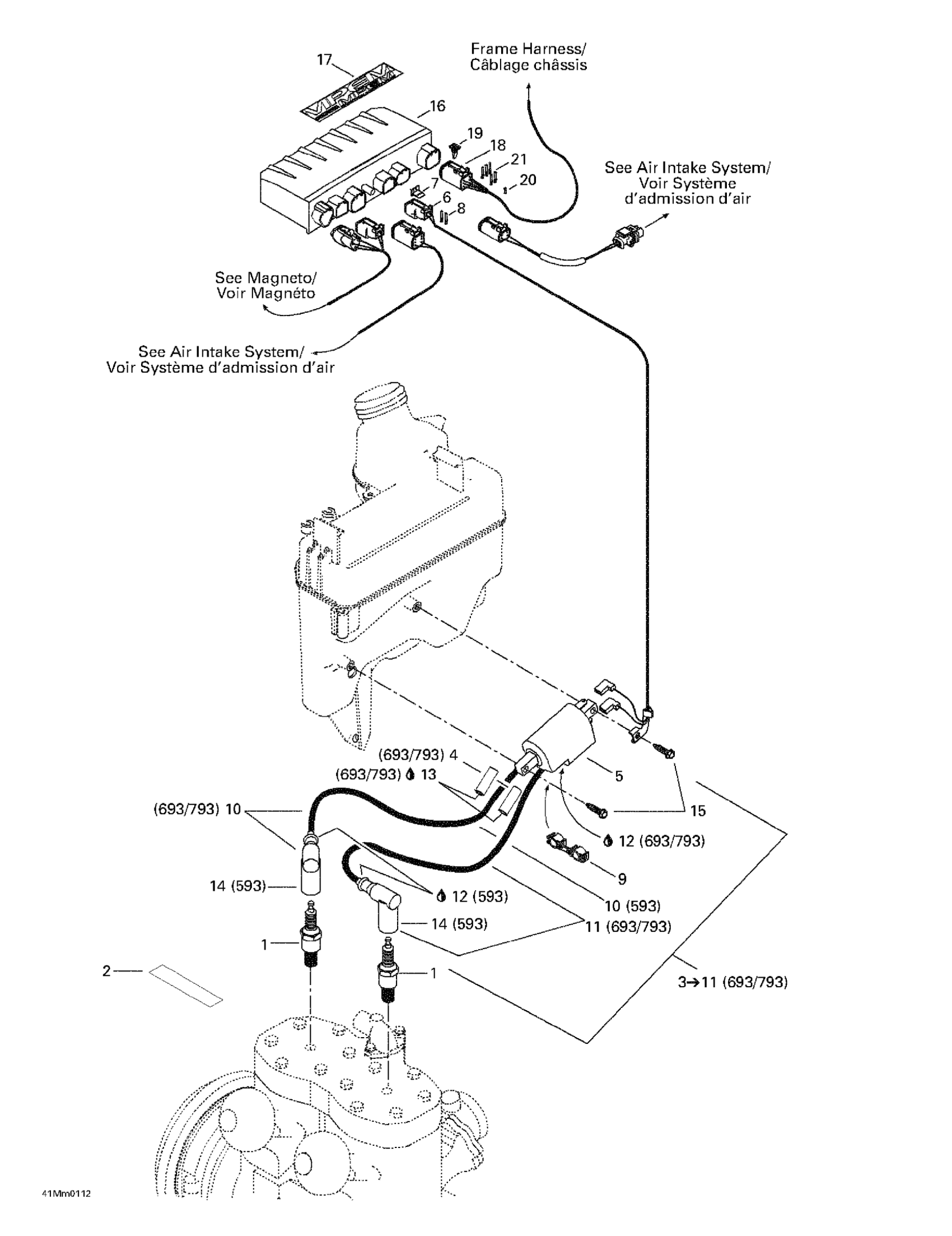

Ski-Doo Summit 600/700/800, 2001 03- Ignition Diagram

#

Description
Price

1

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

2

Spark Plug Decal

516000986

Unavailable

3

Ignition Coil Ass'y | Includes 3 - 13.

512059377

Unavailable

4

Tubing

512059376

Unavailable

5

Ignition Coil

512059363

Unavailable

5

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

6

Female Connector, 2 Circuits

409207300

$9.85

7

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

8

Female Terminal

278000632

$2.09

9

Plastic Clip, Spark Plug Wire

410914600

$5.61

10

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

Cable Ass’y, 375 mm

512059696

$80.99

11

CABLE ASSY, 455 MM - Call your local BRP dealership

512059486

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

14

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

15

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

16

Calibration Module | Summit 600.

512059296

Unavailable

Calibration Module | Summit 700.

512059380

Unavailable

Calibration Module | Summit 800.

512059360

Unavailable

17

Electrical Box Decal

516000245

Unavailable

18

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

20

Sealing Cap

293000052

$3.19

21

Female Terminal

278000632

$2.09
