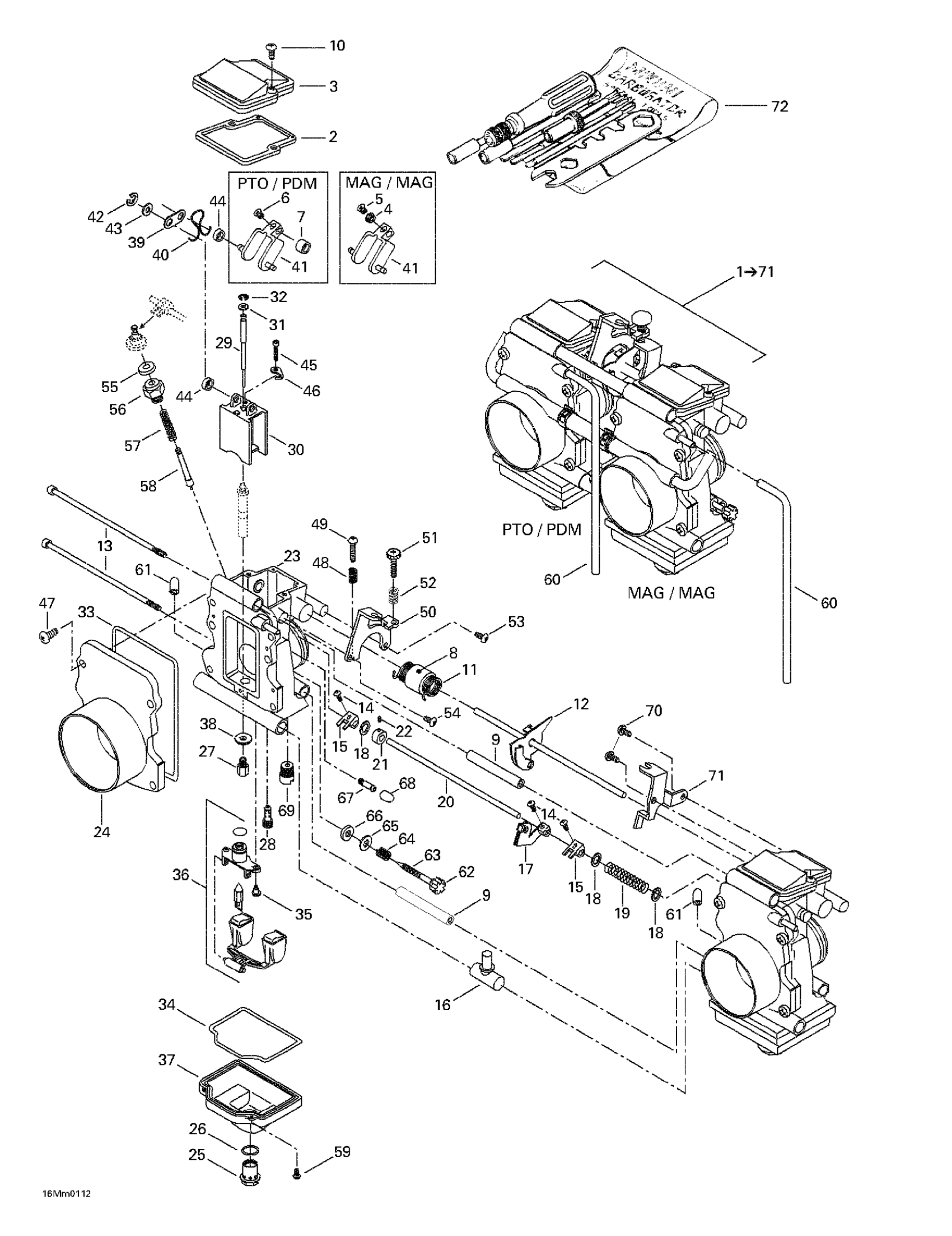

Ski-Doo Summit 600/700/800, 2001 02- Carburetors Diagram

#

Description
Price

1

Carburetor Kit TM 40-55 | Summit 600.

403138657

Unavailable

Carburetor Kit TM 40-B100 | Summit 700.

403138660

Unavailable

Carburetor Kit TM

403138661

Unavailable

Carburetor Kit TM 40 | Summit 800.

403138662

Unavailable

2

Gasket

404161940

$24.49

3

COVER - Call your local BRP dealership

404161939

$38.99

4

Ring

404161937

Unavailable

5

Screw

404161936

Unavailable

6

Screw

404161928

$12.70

7

Ring

404161926

$12.70

8

Ring

404161925

$12.70

9

RING - Call your local BRP dealership

404161924

Unavailable

10

Screw

404161923

$7.23

11

Spring

404161915

Unavailable

12

Throttle Shaft

404161914

Unavailable

13

Screw

404161911

$34.99

14

Screw

404161910

$12.70

15

Lever

404161909

$17.99

16

Nipple

404161905

$47.99

17

Starter Lever

404161901

$35.99

18

Packing

404161894

$12.70

19

Spring

404103500

$8.47

20

Shaft | Formula Deluxe 600. Formula Deluxe 700.

404161952

Unavailable

21

Ring | Formula Deluxe 600. Formula Deluxe 700.

404161951

Unavailable

22

Screw | Formula Deluxe 600. Formula Deluxe 700.

404161949

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Funnel | MX-Z 600. MX-Z 700.

404161947

Unavailable

25

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

26

O-Ring

404161945

$9.06

27

Main Jet 500 | 600

404108200

$5.21

Main Jet 520 | Formula Deluxe 700.

404115100

Unavailable

28

Pilot Jet 20 | 600

404108600

$5.21

Pilot Jet 17.5

404161944

$5.21

29

Needle J8-9hfy02-53 | Formula Deluxe 600.

404161954

Unavailable

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

404161953

Unavailable

Needle J8-9zly02-58 | Grand Touring 800.

404161962

Unavailable

30

Piston Valve 2.0

404161950

Unavailable

31

Packing

404137600

$6.38

32

E-Ring

404152200

$4.14

33

O-Ring

404161935

$24.49

34

O-RING - Call your local BRP dealership | Formula Deluxe 600.

404161934

Unavailable

O-Ring

404161961

$17.99

35

Screw

404161933

$11.18

36

Float

404161932

$122.49

37

Float Body Ass'y | Formula Deluxe 600.

404161931

Unavailable

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

38

WASHER - Call your local BRP dealership

404161862

Unavailable

39

Plate

404161930

Unavailable

40

Clip

404161929

Unavailable

41

Lever (PTO)

404161927

Unavailable

Lever (MAG)

404161938

Unavailable

42

E-Ring

404138300

$11.18

43

Washer

404161922

Unavailable

44

Ring

404161921

Unavailable

45

Screw

404161920

$12.70

46

Plate

404161919

$12.70

47

Screw

404138800

$6.06

48

Spring

404161918

$6.45

49

Screw

404161917

$12.70

50

Bracket TM 40-98 (PTO)

404161916

Unavailable

51

Adjustment Screw

404137500

$19.49

52

Spring

404161913

$12.70

53

Screw

404161912

$6.38

54

Screw

404136100

$6.38

55

Cap

404140000

$11.18

56

Guide Holder

404136900

$16.49

57

Spring

404161908

$12.77

58

Plunger Ass'y

404161907

$31.99

59

Screw

404161906

$6.38

60

HOSE - Call your local BRP dealership

404161904

Unavailable

61

Cap

404156600

$17.08

62

Cap

404161899

$12.18

63

Adjuster

404161898

$23.99

64

Spring

404161897

$5.95

65

Washer

404161896

$6.06

66

Packing

404161895

$9.06

67

Nipple

404153400

$12.16

68

CAP - Call your local BRP dealership

404154900

Unavailable

69

Jet 331-1.1 | Formula Deluxe 600.

404161900

Unavailable

70

Screw

404161903

$3.08

71

Bracket, Mag

404161902

Unavailable

72

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
