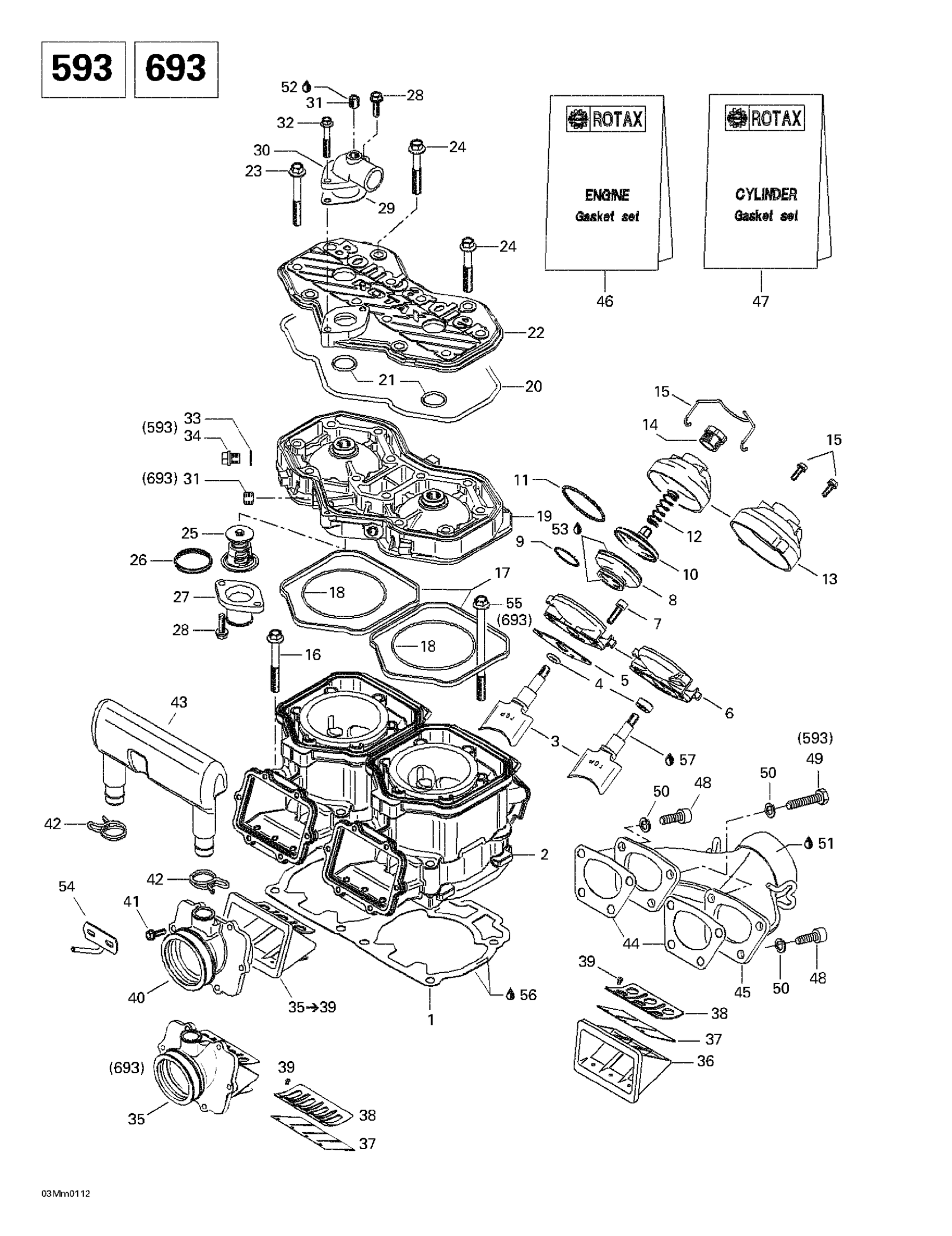

Ski-Doo Summit 600/700/800, 2001 Cylinder, Exhaust Manifold, Reed Valve (593693) Diagram

#

Description
Price

1

Gasket 0.8 mm

420431423

$24.60

Double Gasket 0.8 mm

420431163

$22.36

Gasket 0.7 mm

420431422

$26.09

Gasket 0.7 mm

420431162

$22.36

Gasket 0.6 mm

420431421

$18.63

Gasket 0.6 mm

420431161

$22.36

Gasket 0.5 mm

420431420

$23.10

Gasket 0.5 mm

420431160

$16.39

2

Cylinder With Sleeve

420613628

$435.04

Cylinder With Sleeve, Nicasil

420923695

Unavailable

3

Exhaust Valve

420854371

$55.94

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

4

O-Ring

420430110

$4.15

Oil Seal | Included in gasket kit

420950732

$8.09

5

Gasket

420250239

$6.42

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

Valve Housing

420854266

$91.01

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

Hex. Tapping Screw M5 X 20

420841555

$1.63

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$5.91

Hex. Collar Screw

420640524

$11.18

17

Rubber Ring

420931590

$5.52

18

O-Ring This part replaces 420850540.

293300026

$3.06

O-RING - Call your local BRP dealership

420931840

$11.75

19

CYLINDER HEAD - Call your local BRP dealership

420923459

Unavailable

CYLINDER HEAD (SILVER) - Call your local BRP dealership | Grand Touring 700.

420923457

Unavailable

20

O-Ring This part replaces 290950320.

420950320

$13.18

21

O-Ring

420430782

$5.06

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

23

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

24

Hex. Screw M8 X 56.5

420941627

$8.09

25

Thermostat This part replaces 414834100.

420922519

$57.43

26

SEALING RING - Call your local BRP dealership

420931270

Unavailable

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

28

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

29

Gasket

420850338

$9.97

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

31

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

32

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

33

Aluminum Sealing Ring

420250016

$5.06

34

Plug screw

420841924

$13.18

35

Reed Valve Ass'y

420924519

$49.22

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$241.01

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Reed Pedal

420924532

$42.51

Reed Pedal

420924680

$36.54

38

Reed Pedal Stop

420924539

$11.18

Reed Pedal Stop

420924695

$13.18

39

Phillips Screw M3 X 5

420941215

$1.63

Phillips Screw M3 X 5

420941215

$1.63

40

Carburetor Socket | Formula Deluxe 600.

420867880

Unavailable

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867817

Unavailable

44

Gasket

420931610

$11.04

Gasket

420850552

$7.69

45

Exhaust Manifold

420979543

Unavailable

Exhaust Manifold | Grand Touring 700.

420973591

Unavailable

46

Engine Gasket Set | Formula Deluxe 600.

420888582

Unavailable

Engine Gasket Set | Formula Deluxe 700.

420888602

Unavailable

47

Gasket Set, Cylinder

420893075

$161.91

Cylinder Gasket Set | Formula Deluxe 700.

420888607

Unavailable

48

Socket Head Screw M8 X 25

205082544

$1.06

Socket Head Screw M6 X 20

205062044

$1.22

49

Hex. Screw M8 X 20

207182044

$0.70

50

Lock Washer 8 mm

234181401

$0.87

Lock Washer M6, Black

234161471

$0.51

51

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

52

Loctite 243, 10 ml

293800060

$21.49

53

Dow Corning 111, 150 g

413707000

$59.99

54

Carburetor Bracket | Formula Deluxe 600. Formula Deluxe 700.

512059369

Unavailable

55

Hex. Collar Screw

420640534

$13.18

56

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

57

Molykote G-N, 50 g

420297433

$26.09
