Partiron

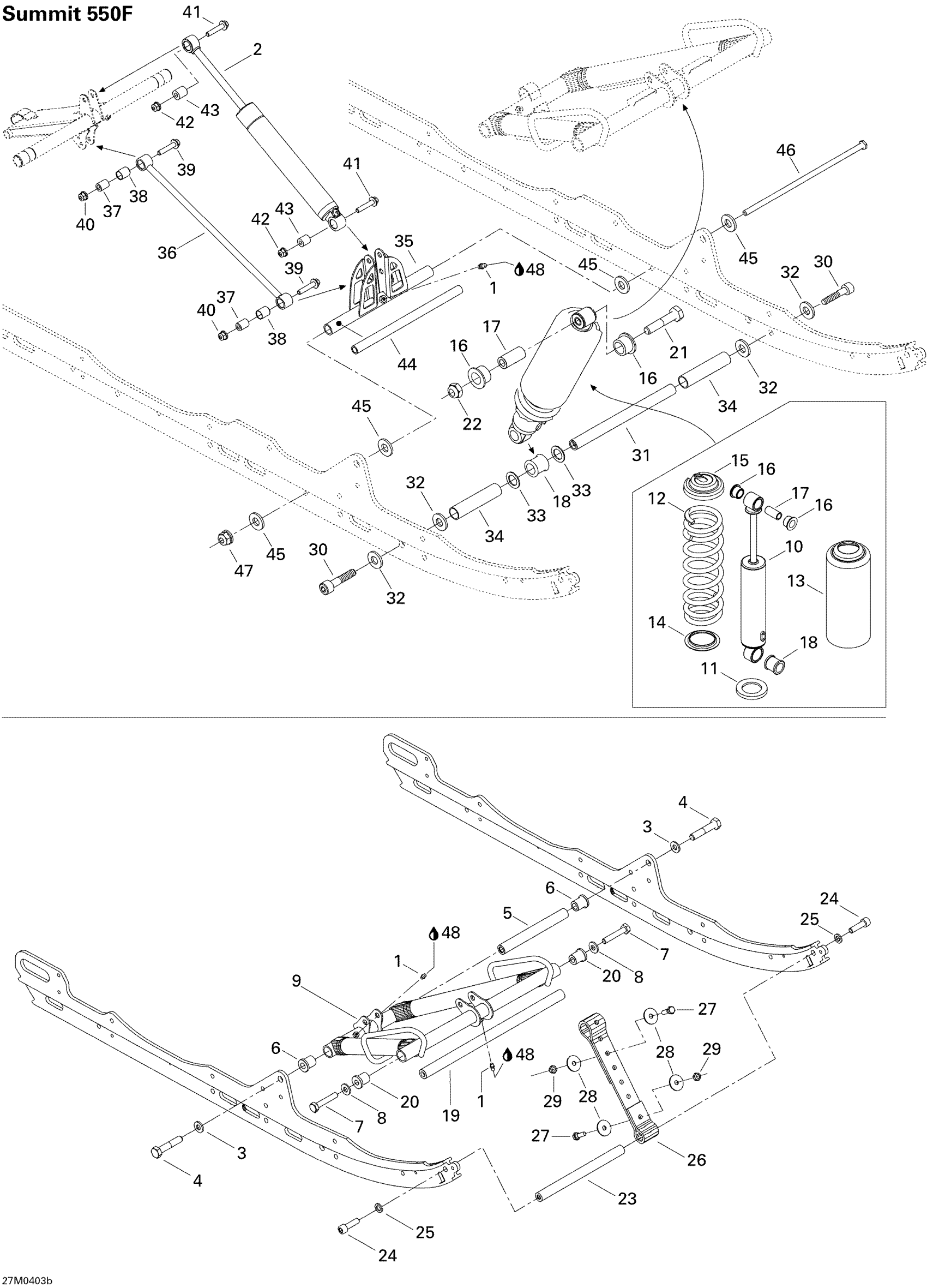

Ski-Doo Summit 550F, 2004 Front Arm SUMMIT 550F Diagram

#

Description
Price

1

Grease Fitting

408200700

$2.80

2

Rear Shock

503191582

$157.66

2

Rear Shock | Europe

503190475

Unavailable

3

Washer

503189276

$3.20

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

8

Washer

732900049

$0.57

9

Front Arm

503189782

Unavailable

10

Center Shock

503189910

Unavailable

11

WASHER - Call your local BRP dealership

505070401

Unavailable

12

SPRING - Call your local BRP dealership

415070100

Unavailable

12

SPRING - Call your local BRP dealership | Except Europe

503190546

Unavailable

13

Protector

503193663

$35.35

14

Spring Guide

503187500

$7.37

15

Spring Stopper

706200881

$10.30

16

Urethane Bushing

503189117

$6.88

17

Bushing | Includes 240d to 240d1

503189282

$4.18

18

Bushing

503189271

$10.46

19

SHAFT - Call your local BRP dealership

503190387

Unavailable

20

Bushing

503189324

$11.17

21

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

22

Elastic Locking Nut M10 X 1.5

233601416

$1.68

23

AXLE - Call your local BRP dealership

503189562

Unavailable

24

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

25

Washer

503189564

$0.72

26

Stopper Strap, Large

503190563

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.74

28

Flat Washer

224081301

$0.86

29

Hex. Elastic Stop Nut M8

232581414

$0.47

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

31

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

32

Washer

503189276

$3.20

33

Washer

503189273

$3.20

34

SPACER - Call your local BRP dealership

503189274

Unavailable

35

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

36

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

37

BUSHING - Call your local BRP dealership

503189133

Unavailable

38

CUSHION - Call your local BRP dealership

503189625

Unavailable

39

Hex. Flange Screw M8 X 40

207684044

$1.25

40

Elastic Flange Nut M8

250100025

$1.25

41

Hex. Flange Screw M8 X 40

207684044

$1.25

42

Elastic Flange Nut M8

250100025

$1.25

43

Bushing

414936000

$11.55

44

Pivot Arm Axle

503189156

$20.74

45

Washer

503189157

$3.20

46

Bolt M8 X 248mm

503192440

$29.97

47

Elastic Flange Nut M8

250100025

$1.25

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
