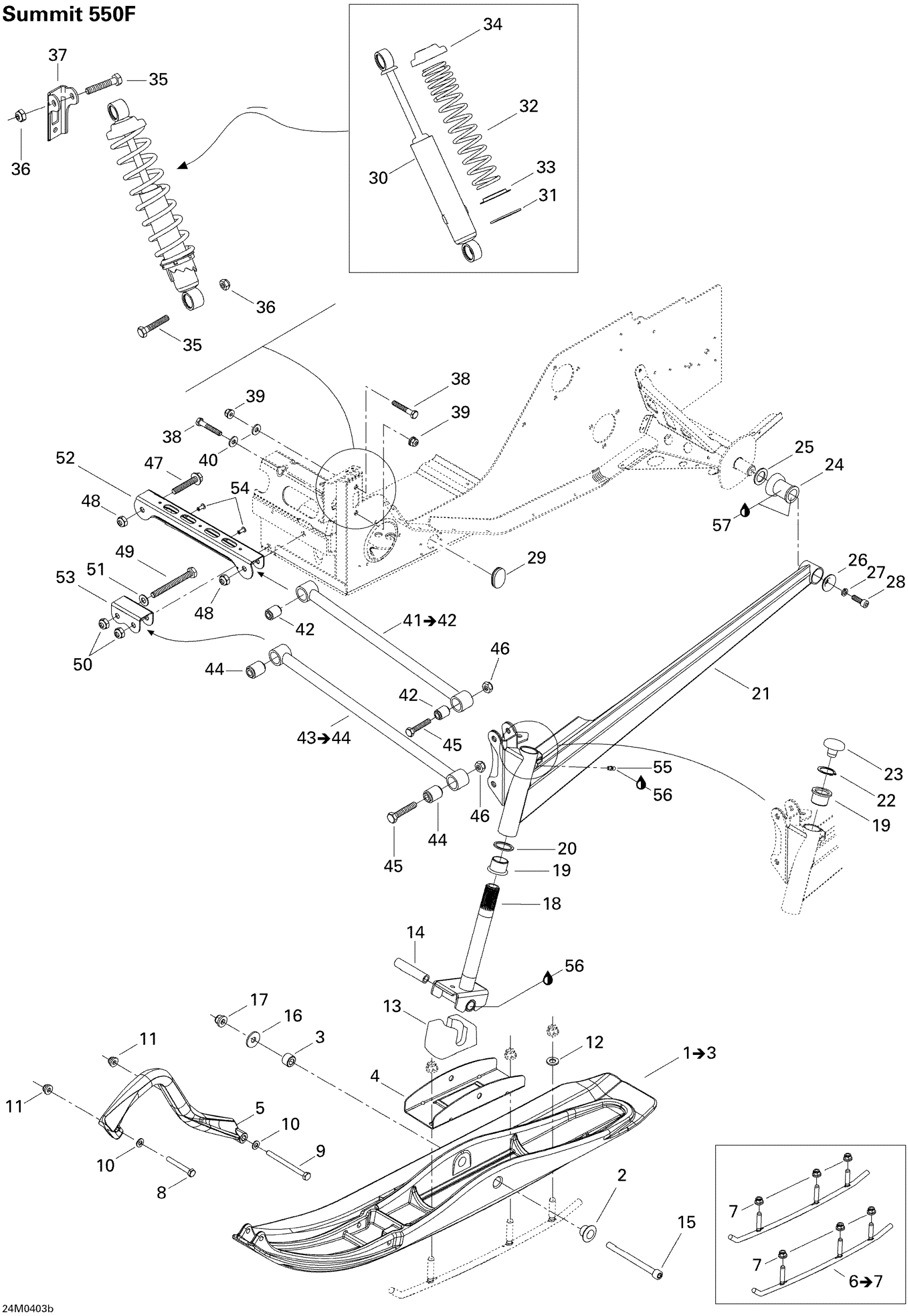

Ski-Doo Summit 550F, 2004 Front Suspension SUMMIT 550F Diagram

#

Description
Price

1

RH Ski Ass'y | INCLUDES 1 TO 3 This part replaces 505071046.

505071391

Unavailable

LH Ski, Black Ass'y | INCLUDES 1 TO 3

505071047

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Ski Renforcement

505070745

Unavailable

5

Black, Handle

505070963

Unavailable

6

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

Unavailable

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Screw M8 X 50

207085044

Unavailable

9

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

10

Flat Washer 8 mm

234081410

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Flat Washer

399910100

Unavailable

13

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

14

Spacer

506133300

Unavailable

15

Socket Head Screw M10 X 125

250000069

Unavailable

16

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

17

Flange Nut M10

732610084

Unavailable

18

Ski Leg

505070672

Unavailable

19

Cushion

505070003

Unavailable

20

WASHER - Call your local BRP dealership

505070004

Unavailable

21

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

22

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

23

Cap

572091300

$8.97

24

DAMPER - Call your local BRP dealership

570062200

Unavailable

25

WASHER - Call your local BRP dealership

503146700

$4.42

26

CUP - Call your local BRP dealership

506079600

Unavailable

27

Lock Washer 8 mm

234181401

Unavailable

28

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

Unavailable

29

Black, Nylon Cap

414916600

$4.32

30

Front Shock

505070694

Unavailable

31

WASHER - Call your local BRP dealership

505070401

Unavailable

32

Spring

505070762

Unavailable

33

Spring Guide

503187500

Unavailable

34

Spring Stopper

706200881

$10.30

35

Hex. Screw M10 X 55

207005544

$1.85

36

Elastic Locking Nut M10 X 1.5

233601416

$1.68

37

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

38

Hex. Screw M8 X 50

207085044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Washer

506151245

Unavailable

41

UPPER ARM ASSY - Call your local BRP dealership | INCLUDES 41 TO 42

505070746

Unavailable

42

Bushing

505070025

Unavailable

43

LOWER ARM ASSY - Call your local BRP dealership | INCLUDES 43 TO 44

505070748

Unavailable

44

Bushing

505070025

Unavailable

45

Hex. Screw M10 X 55

207005544

$1.85

46

Elastic Locking Nut M10 X 1.5

233601416

$1.68

47

Hex. Flange Screw M10 X 55

207605544

Unavailable

48

Elastic Locking Nut M10 X 1.5

233601416

$1.68

49

Hex. Screw M10 X 95

207009544

Unavailable

50

Elastic Locking Nut M10 X 1.5

233601416

$1.68

51

Flat Washer 10 mm

234001410

Unavailable

52

Upper Arm Bracket

505070010

Unavailable

53

Lower Arm Bracket

505070011

Unavailable

54

Pop Rivet 3/16"

390402200

$0.26

55

Grease Fitting

408200700

Unavailable

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

57

Grease, Super Lube

293550030

Unavailable
