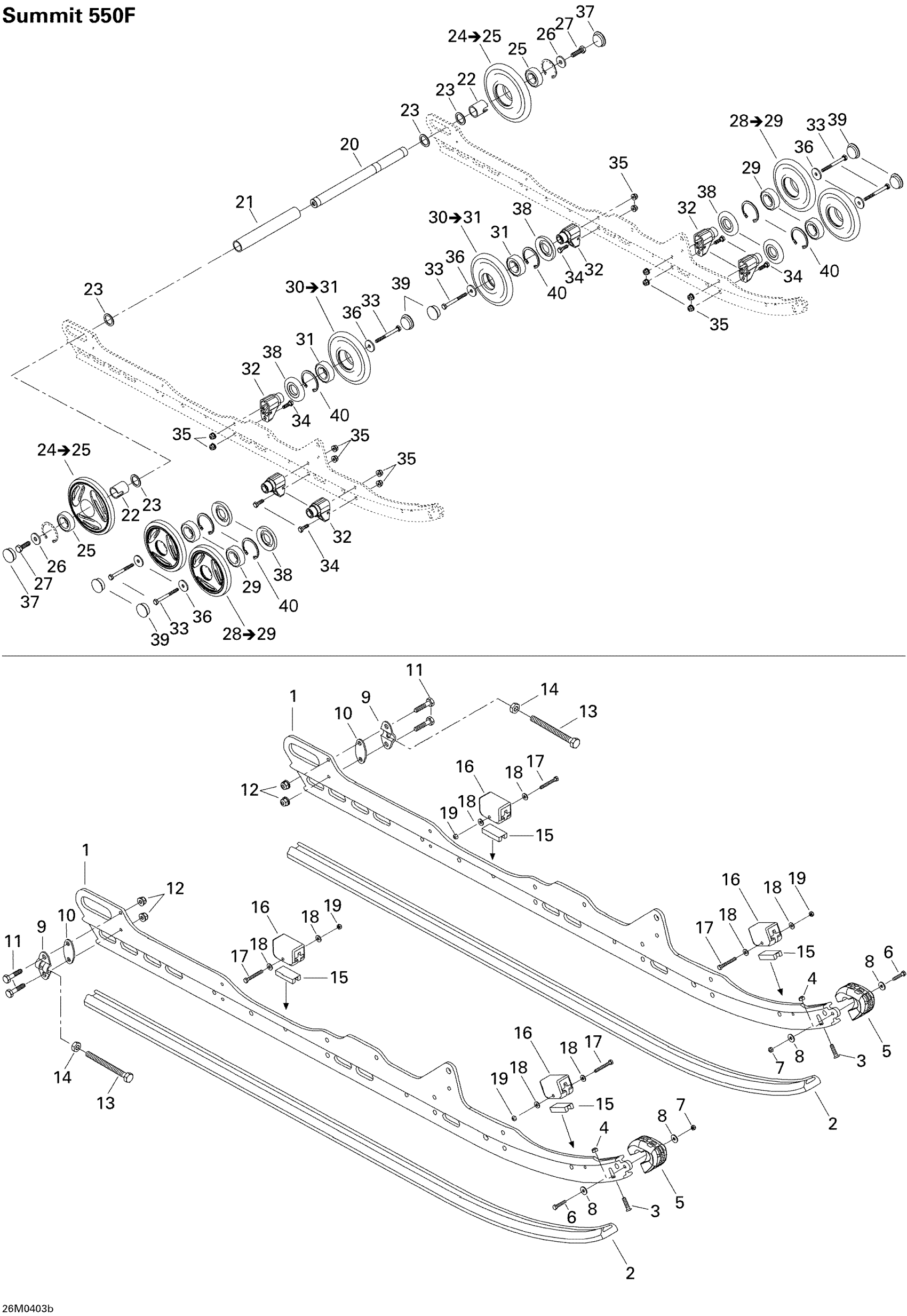

Ski-Doo Summit 550F, 2004 Rear Suspension SUMMIT 550F Diagram

#

Description
Price

1

Runner, 136”

503189582

Unavailable

2

Slide Shoe

605355362

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$0.98

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

Reinforcement Stopper

572084800

$5.25

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

$0.72

20

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

21

SPACER - Call your local BRP dealership

503188941

Unavailable

22

Outer Spacer

503189809

$15.35

23

Washer

503180400

$3.37

24

Wheel 165 mm Yellow

503190817

$49.97

25

Ball Bearing

293350115

$11.15

26

Washer

503183300

$5.68

27

Hex. Screw With Nylon

250000019

$1.42

28

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

29

Ball Bearing

293350115

$11.15

30

Wheel 139 mm Ass'y

503190798

$32.28

31

Ball Bearing

293350115

$11.15

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

Hex. Screw M8 X 80

207088044

$1.58

34

Hex. Screw M8 X 25

207182544

$0.74

35

Hex. Flange Elastic Nut M8

233281414

$1.14

36

Washer

503183100

$3.08

37

Wheel Cap

570063600

$3.28

38

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

39

Wheel Cap

570063600

$3.28

40

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
