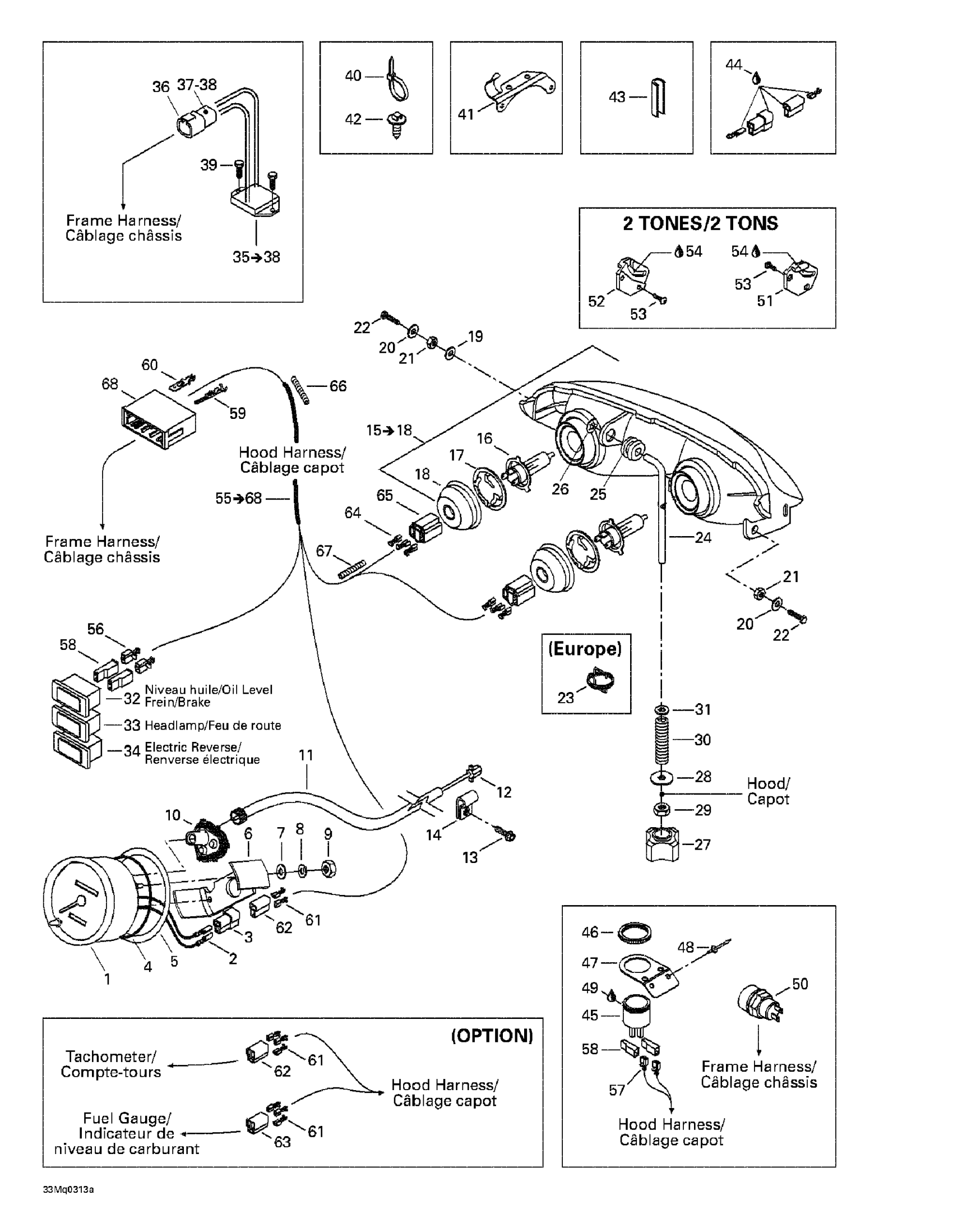

Ski-Doo Summit 550 F, 2003 10- Hood Harness Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

O-Ring

414807100

Unavailable

5

Washer

517258500

Unavailable

6

Case Holder

414806500

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Lock Washer

414806700

Unavailable

9

Nut

414806900

Unavailable

10

Drive Angle

515175400

Unavailable

11

Speedometer Cable

415101500

Unavailable

12

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Open Clamp

414176000

$1.99

15

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

17

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

18

COVER - Call your local BRP dealership

515175911

Unavailable

19

Flat Washer 10 mm

234001410

$1.26

20

Flat Washer M5

234051410

$0.53

21

NUT M5 - Call your local BRP dealership

250100018

$6.99

22

Hex. Screw M5 X 35

207053544

$1.15

23

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

24

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

25

Grommet - Call your local BRP dealership

415100800

Unavailable

26

Push Nut

732610072

$2.19

27

Handle - Call your local BRP dealership

515175548

Unavailable

28

Washer

224060251

$0.58

29

Elastic Stop Nut M6

232561414

$0.55

30

SPRING - Call your local BRP dealership

415100600

Unavailable

31

Flat Washer 6 mm

234061410

$1.36

32

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

35

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

36

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

37

Male Terminal

515175568

$9.12

38

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

39

Hex. Flange Screw M6 X 16

210261650

$1.67

40

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

41

Cable Support

515175254

Unavailable

42

Mount Dart

293730040

$1.04

43

Was 271000110 Protection Trim

219704353

$15.99

44

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

PLATE - Call your local BRP dealership

515175688

Unavailable

48

Pop Rivet 3/16"

390402200

$0.35

49

Silicone Sealant 51388, 300 ml

296000309

$36.99

50

Push Button

415130372

$122.49

51

RH Support

517289300

Unavailable

52

LH Support

517289400

Unavailable

53

Headlamp Screw

732601315

Unavailable

54

Grease Tube Lmz, 400 G

413707500

Unavailable

55

Hood Harness, Not Shown

515175847

Unavailable

56

Female Terminal

409010100

$5.61

57

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

58

Female Terminal Housing, 1 Circuit

409010400

$7.62

59

Male Terminal

515175232

$1.58

60

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

61

Female Terminal

561503100

$2.41

62

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

63

Female Housing

409204300

Unavailable

64

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

65

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

66

Was 409901800 Tubing (13 mm)

219704400

$14.49

67

Tubing 10 MM 1000MM Long

219704407

$2.79

68

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable
