2003 Ski-Doo Summit 550 F CAB, Console Diagram

← All diagrams

Find the part on the CAB, Console diagram for your 2003 Ski-Doo Summit 550 F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

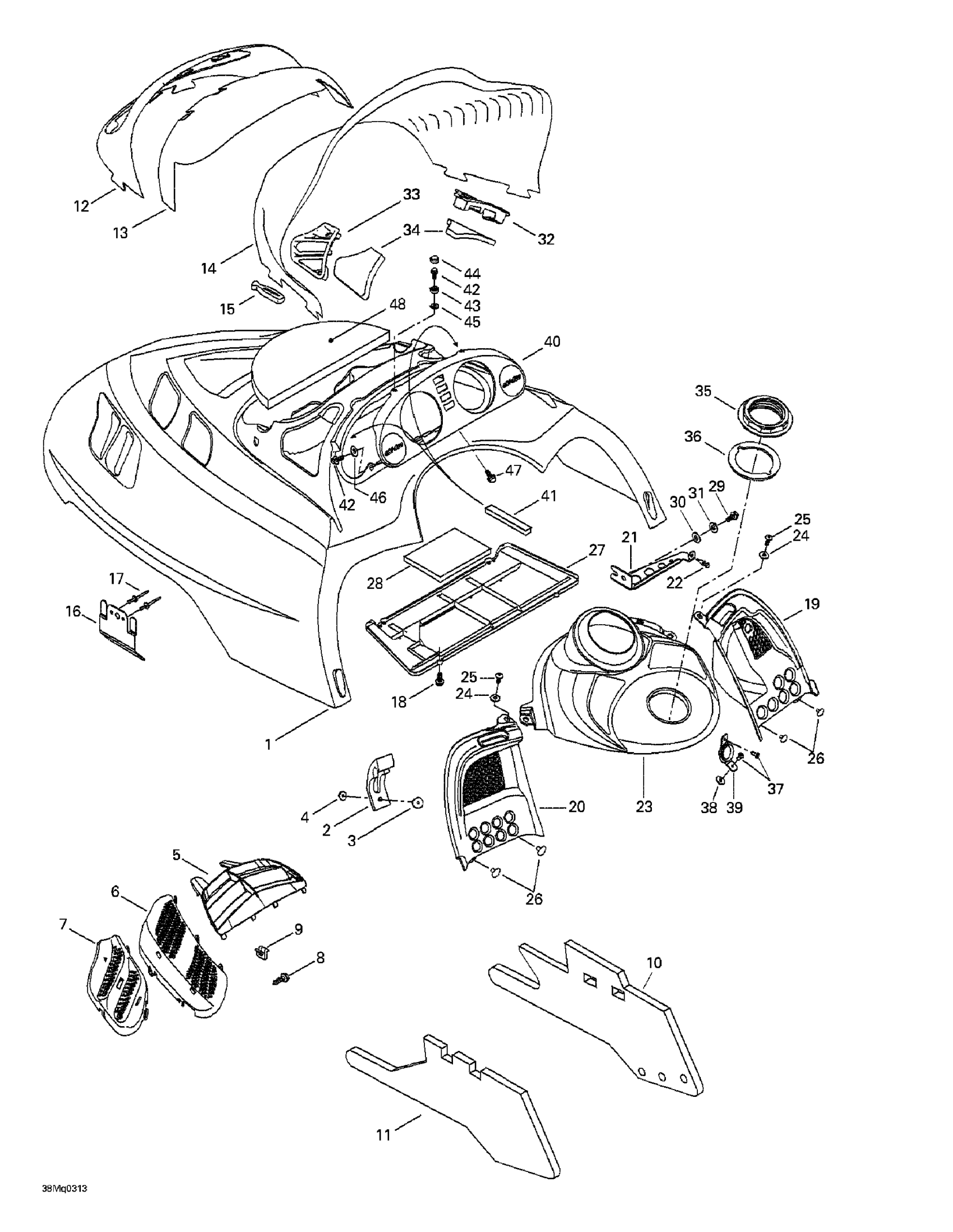

2003 Ski-Doo Summit 550 F CAB, Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Hood (BLACK/ORANGE (B-228))

517302734

—
Out of stock

Deep Black, Hood

517302846

—
Out of stock

2

Hood Latch

570027100

2
Out of stock

3

Pop Rivet 3/16”

293150108

2
Out of stock

4

Washer

517124300

2
Out of stock

5

Center Grill, Black

517302676

—
Out of stock

6

RH Intermediate Grill, Black

517302567

—
Out of stock

LH Intermediate Grill, Black

517302568

—
Out of stock

7

RH Side Grill

517302569

—
Out of stock

LH Side Grill

517302570

—
Out of stock

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

9

Edge Clip

517302785

4
Out of stock

10

RH Side Foam

517302669

—
Out of stock

11

LH Side Foam

517302670

—
Out of stock

12

Headlamp Moulding

517302582

—
Out of stock

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

—
Out of stock

14

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

1
Out of stock

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

1
Out of stock

15

Windshield Latch

570023800

8
Out of stock

16

Hood Guide

517302615

—
Out of stock

17

Pop Rivet 3/16”

390910000

4
Out of stock

18

Hex. Plastic Screw M4.8 X 16

243141630

4
Out of stock

19

RH Console

517302561

—
Out of stock

20

LH CONSOLE - Call your local BRP dealership

517302006

—
Out of stock

21

RH Console Support

517302621

—
Out of stock

22

Rubber Stopper

517302624

—
Out of stock

23

Center Console | SUMMIT

517302633

—
Out of stock

24

Washer | DS 650 X

391301600

2
Out of stock

25

2

$0.83

In stock

26

Pop Rivet 3/16"

293150103

4
Out of stock

27

AIR INTAKE PLATE - Call your local BRP dealership

517302836

—
Out of stock

28

Secondary Foam

517302425

—
Out of stock

29

Hex. Flange Screw M6 X 12

210261250

1
Out of stock

30

Flat Washer 6 mm

234061410

1
Out of stock

31

1

$0.52

In stock

32

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

—
Out of stock

33

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

—
Out of stock

34

Air Intake Foam

517302151

—
Out of stock

35

CONSOLE NUT - Call your local BRP dealership

517302043

—
Out of stock

36

Gasket

293250029

1
Out of stock

37

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

—
Out of stock

38

Rubber Stopper

517302286

—
Out of stock

39

Rope Guide

517302129

—
Out of stock

40

Indicator Support

517302536

—
Out of stock

41

Foam

517302420

—
Out of stock

42

Screw K40 X 10

241140060

4
Out of stock

43

RETAINER CAP - Call your local BRP dealership

414436800

—
Out of stock

44

BLACK SNAP CAP - Call your local BRP dealership

414436900

—
Out of stock

45

Flat Washer 4 mm, Stainless

234042600

2
Out of stock

46

Washer

517124300

2
Out of stock

47

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

—
Out of stock

48

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

—
Out of stock
