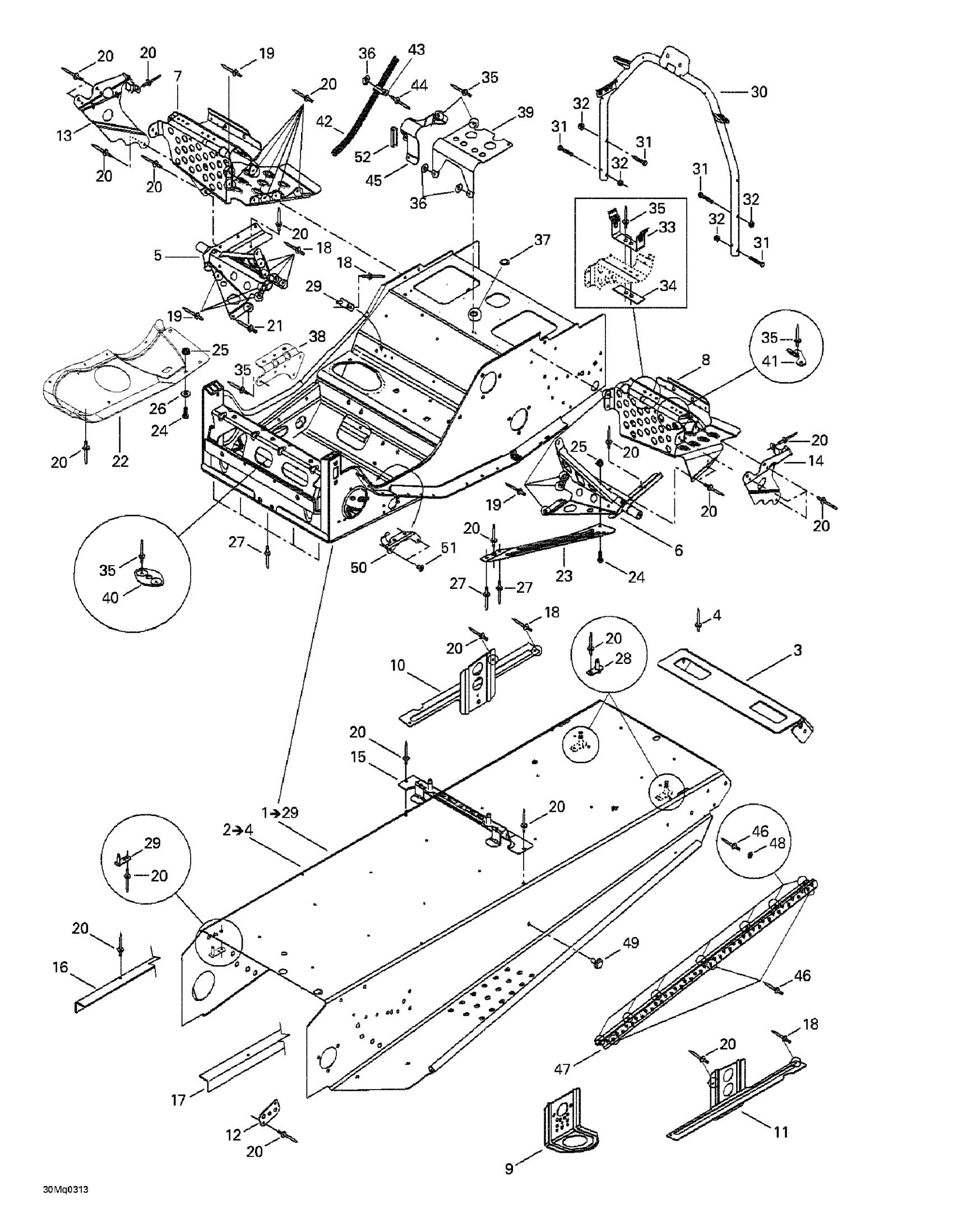

Ski-Doo Summit 550 F, 2003 Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 34.

415128556

Unavailable

2

Tunnel | GT, Includes Items 2 to 4

415128616

Unavailable

3

REAR CAP - Call your local BRP dealership

518321303

$40.74

4

Pop Rivet 3/16"

390402200

$0.26

5

RH Footrest Support

518320506

Unavailable

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

$104.58

7

RH Footrest

518323563

Unavailable

8

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

9

Front Bracket

518321495

Unavailable

10

RH Slide Bracket, Black

518323280

Unavailable

11

LH Slide Bracket, Black

518323283

Unavailable

12

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

$12.65

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

$12.65

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

$17.66

16

RH Frame Reinforcement

518316769

Unavailable

17

LH Frame Reinforcement

518316768

Unavailable

18

Avex Rivet

390909200

Unavailable

19

Avex Rivet

390909100

$0.29

20

Pop Rivet 3/16"

390402200

$0.26

21

Pop Rivet 3/16"

390402300

Unavailable

22

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

$25.35

23

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

$11.06

24

Hex. Screw M5 X 20

207152044

$0.88

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

27

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

28

Seat Bracket

518323321

Unavailable

29

Double Bracket

518323173

Unavailable

30

Handle Support

518322755

Unavailable

31

Hex. Flange Screw M6 X 35

207663544

$0.74

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Belt Guard Bracket

518202100

$16.12

34

REINFORCEMENT - Call your local BRP dealership

518207500

$6.31

35

Pop Rivet 3/16"

390402200

$0.26

36

Flat Washer

517225900

$0.17

37

CAP - Call your local BRP dealership

414859400

$2.78

38

Muffler Support

518322635

Unavailable

39

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

40

Plate Bracket

518201307

Unavailable

41

TOOL KIT BRACKET - Call your local BRP dealership

518322031

$3.82

42

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

43

Open Clamp

518321570

Unavailable

44

Pop Rivet 3/16"

293150103

Unavailable

45

Hose Support

518322699

Unavailable

46

Pop Rivet 3/16"

390402200

$0.26

47

STRIP - Call your local BRP dealership

518319405

Unavailable

48

Flat Washer

517225900

$0.17

49

Panel Fastener

518321954

Unavailable

50

Cable Support

515175254

Unavailable

51

Pop Rivet 3/16"

390402300

Unavailable

52

Was 271000110 Protection Trim

219704353

Unavailable
