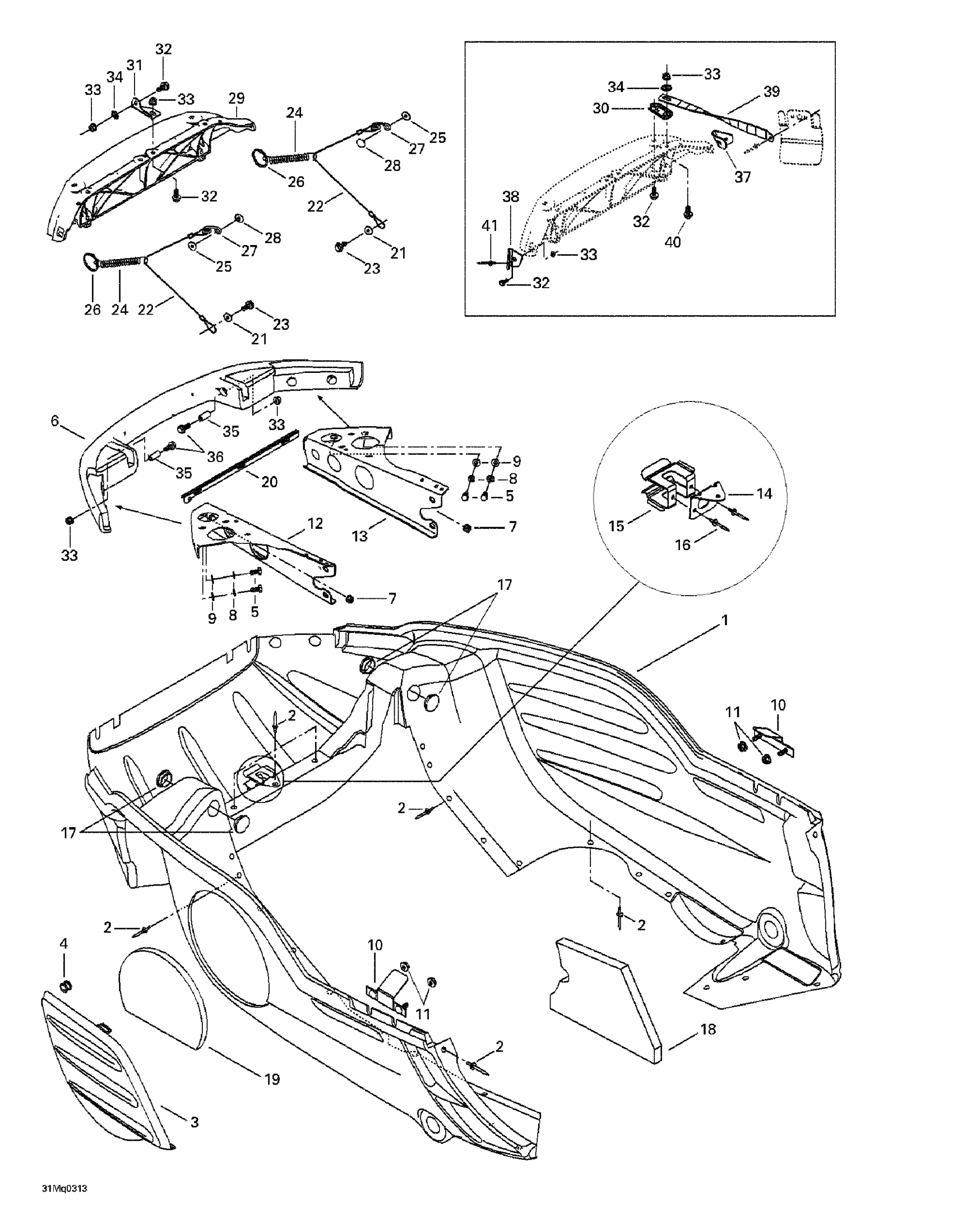

Ski-Doo Summit 550 F, 2003 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black, Bottom Pan

502006633

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

4

Grommet

414036300

$2.79

5

Hex. Screw M6 X 14

207161444

$0.58

6

Bumper, Black

502006719

$101.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lock Washer M6, Black

234161471

$0.53

9

Flat Washer

224061121

$0.53

10

LH Bracket

502006645

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

13

RH Support

502006602

Unavailable

14

Belt Support

502006599

Unavailable

15

Bracket

517281905

$18.49

16

Pop Rivet 3/16"

390402400

$0.35

17

Black, Nylon Cap

414916600

$4.69

18

Bottom Foam

502006558

Unavailable

19

Bottom Pan Door Foam

502006559

Unavailable

20

Bottom Pan Reinforcement

502006647

Unavailable

21

Washer | DS 650 X

391301600

$0.48

22

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Spring

415043300

Unavailable

25

Washer

517124300

$0.19

26

RING - Call your local BRP dealership

415058300

Unavailable

27

Bracket

517262800

Unavailable

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

29

Hinge

517302631

$48.99

30

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

31

Hinge Center Plate

517302045

Unavailable

32

Hex. Flange Screw M6 X 16

207661654

$2.11

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Lock Washer Serrated M6

250200041

$1.15

35

BUSHING - Call your local BRP dealership

517302179

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.90

37

RH Corner Support

517302254

Unavailable

38

LH Corner Support

517302255

Unavailable

39

HOOD CLAMP - Call your local BRP dealership

517302837

Unavailable

40

Hex. Flange Screw M6 X 25

207662544

$0.64

41

Pop Rivet 3/16"

390406500

$0.88
