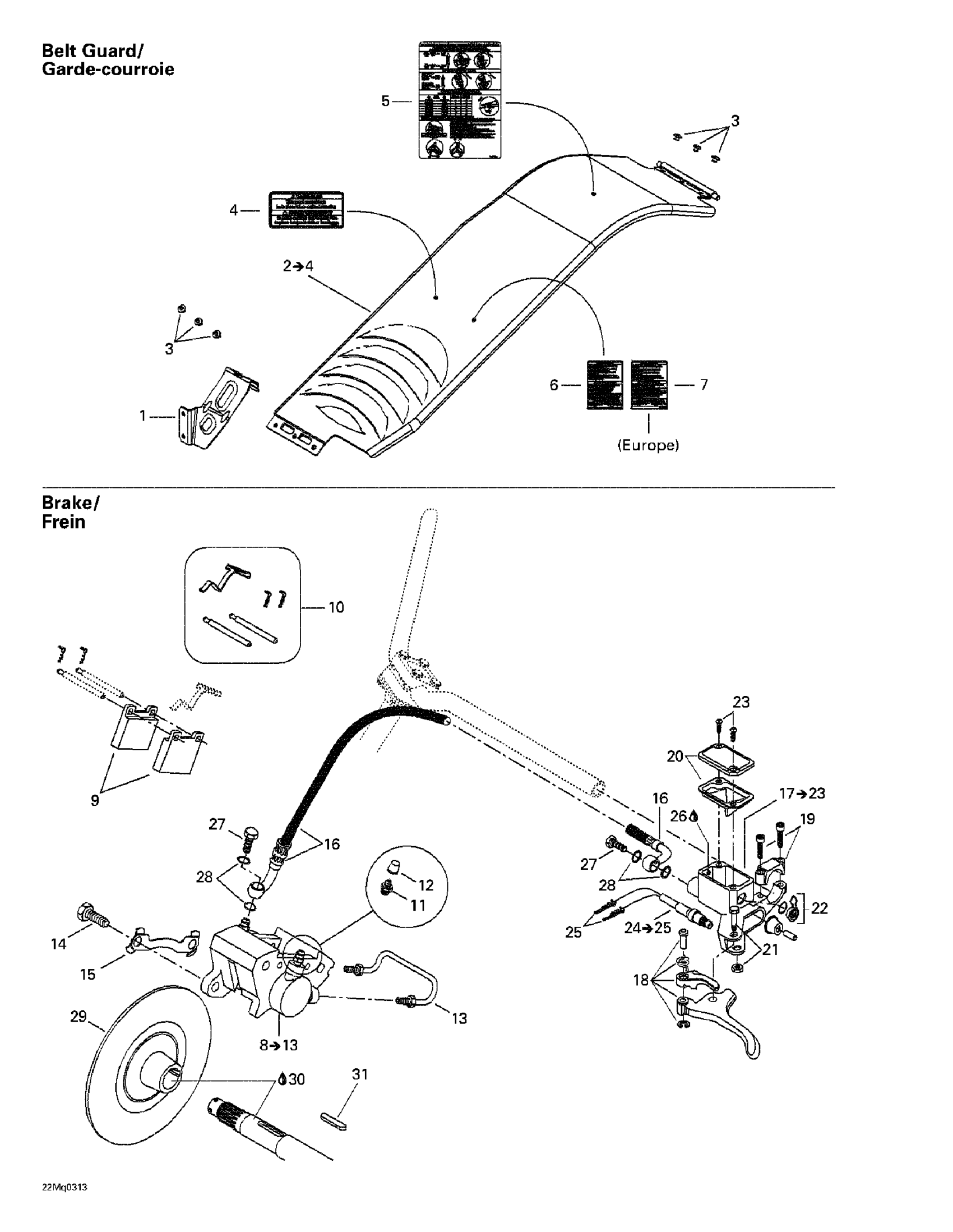

Ski-Doo Summit 550 F, 2003 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Bracket

417300172

Unavailable

2

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Decal, Suspension Adjustment

516001639

Unavailable

6

Installation Label | SUMMIT 550 F

516001754

Unavailable

7

Installation Label | SUMMIT 550 F EUROPE

516001755

Unavailable

8

Caliper | Includes 1 to 6

507032349

Unavailable

9

Brake Pad Kit

415129172

$52.99

10

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

11

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

12

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

13

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

14

Hex. Screw M10 X 35

207103544

$1.58

15

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

16

HOSE - Call your local BRP dealership

507032237

Unavailable

17

Master Cylinder | Includes 1 to 8

507032293

Unavailable

18

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

19

Clamp And Screw Kit

507032477

$23.99

20

Cap

415029900

$41.49

21

Pin Ass'y

415030000

$19.99

22

WINDOW - Call your local BRP dealership

414990600

Unavailable

23

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

24

Microswitch

507032366

$98.99

25

Male Terminal

515175232

$1.58

26

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

27

Banjo Bolt

414920500

$8.68

28

Washer

414920600

$1.90

29

Brake Disk

507032203

Unavailable

30

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

31

KEY - Call your local BRP dealership

507021300

Unavailable
