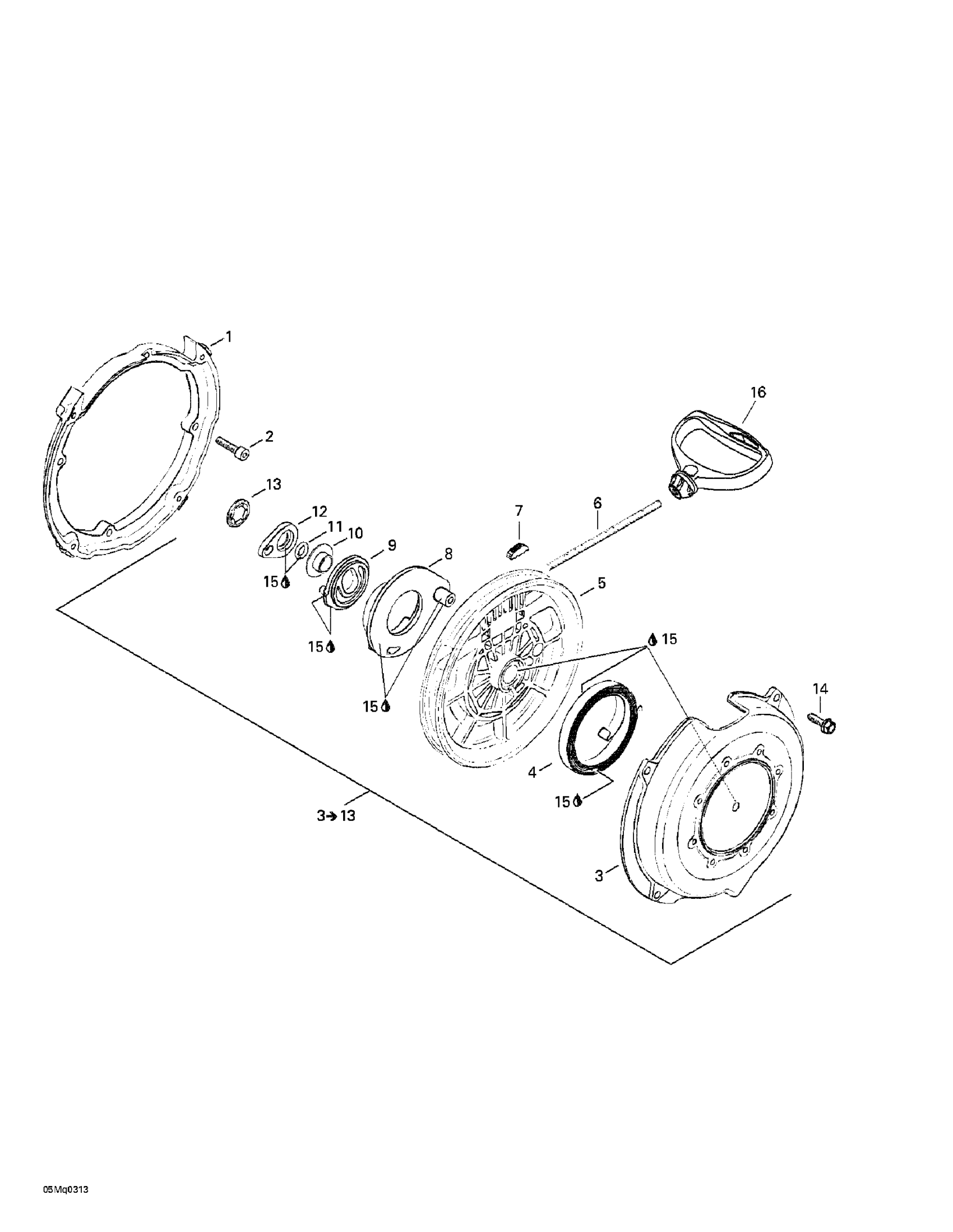

Ski-Doo Summit 550 F, 2003 04- Rewind Starter Diagram

Flange Connector

420810955

$110.99

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

Rewind Spring

420939115

$30.49

Rope Sheave

420852480

$63.99

Was 412500100 Rope-Starter

219704403

$158.99

Key Clamp

420852070

$4.23

Pawl

420852296

$20.99

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

Stage Sleeve

420847926

$16.33

O-Ring

420250400

$5.39

Lock Ring

420852520

$9.27

Locking Element

420845560

$2.11

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

Molykote PG 54, 10 g

420899763

$21.99

Starter Grip

572084400

$14.83
