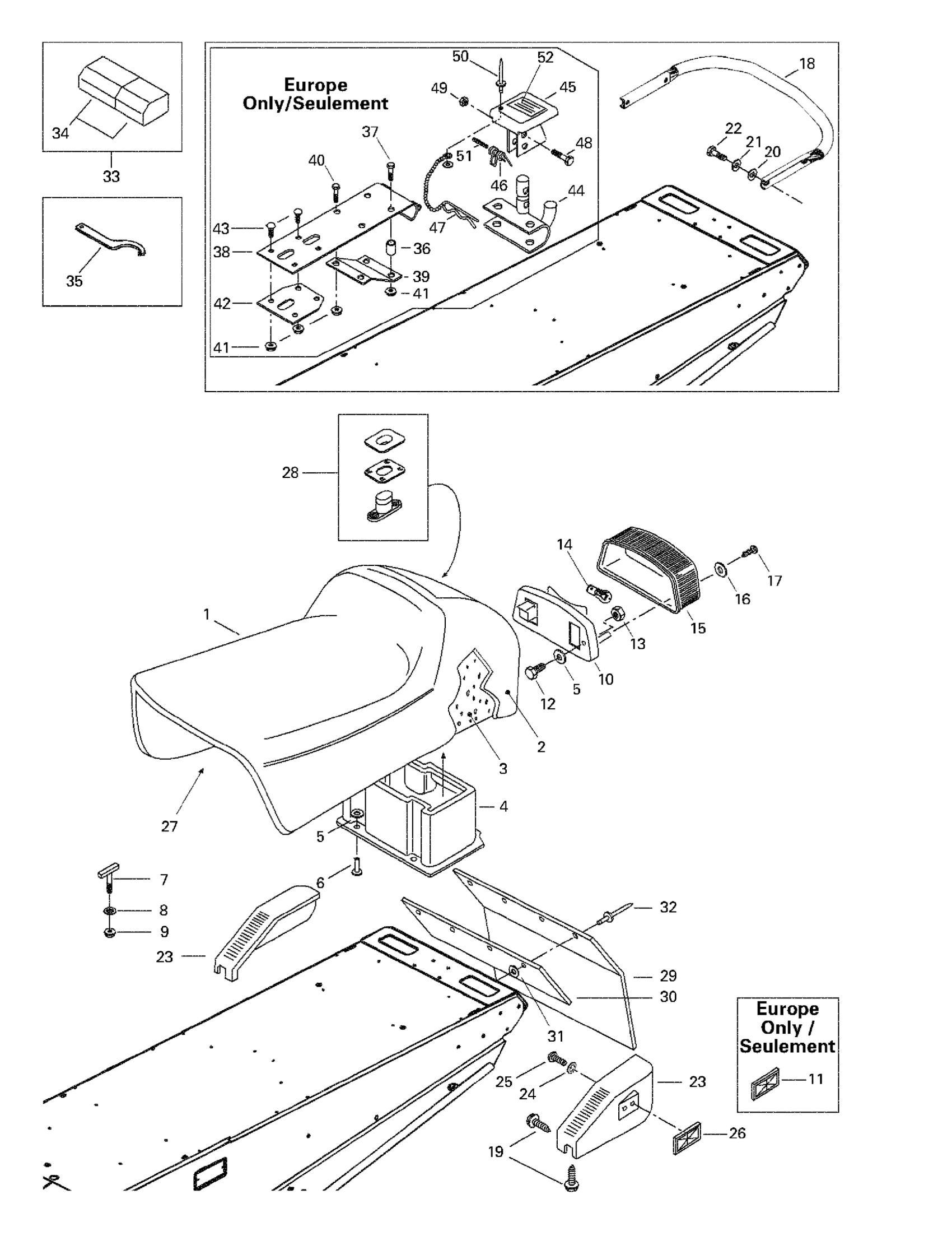

Ski-Doo Summit 500/583/670, 1998 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover

415090703

Unavailable

3

Foam Seat

414837100

Unavailable

4

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

Rear Bumper

517243800

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

RH Moulding Ass'y | Includes 25 - 28.

580641600

Unavailable

LH Moulding Ass'y

580641700

Unavailable

24

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

25

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

26

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

27

Sub-Seat

572099300

Unavailable

28

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

29

Snow Gard (Yellow)

572101500

Unavailable

30

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

31

Flat Washer

517225900

$0.18

32

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

33

Tool Kit

529027900

Unavailable

34

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

35

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

36

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

37

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

38

Hitch Bracket

517294700

Unavailable

39

Reinforcement

517294800

Unavailable

40

Hex. Screw M6 X 18

207161844

$0.76

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

42

Inner Plate

517256100

Unavailable

43

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

44

Hitch | Europe

517199300

Unavailable

45

Hitch Protector | Europe

517152700

Unavailable

46

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

47

Hair Pin

114045200

$11.11

48

Hex. Screw M6 X 30

207063044

$1.26

49

Elastic Stop Nut M6

232561414

$0.55

50

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

51

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

52

Instruction Label (Hitch)

414998500

Unavailable
