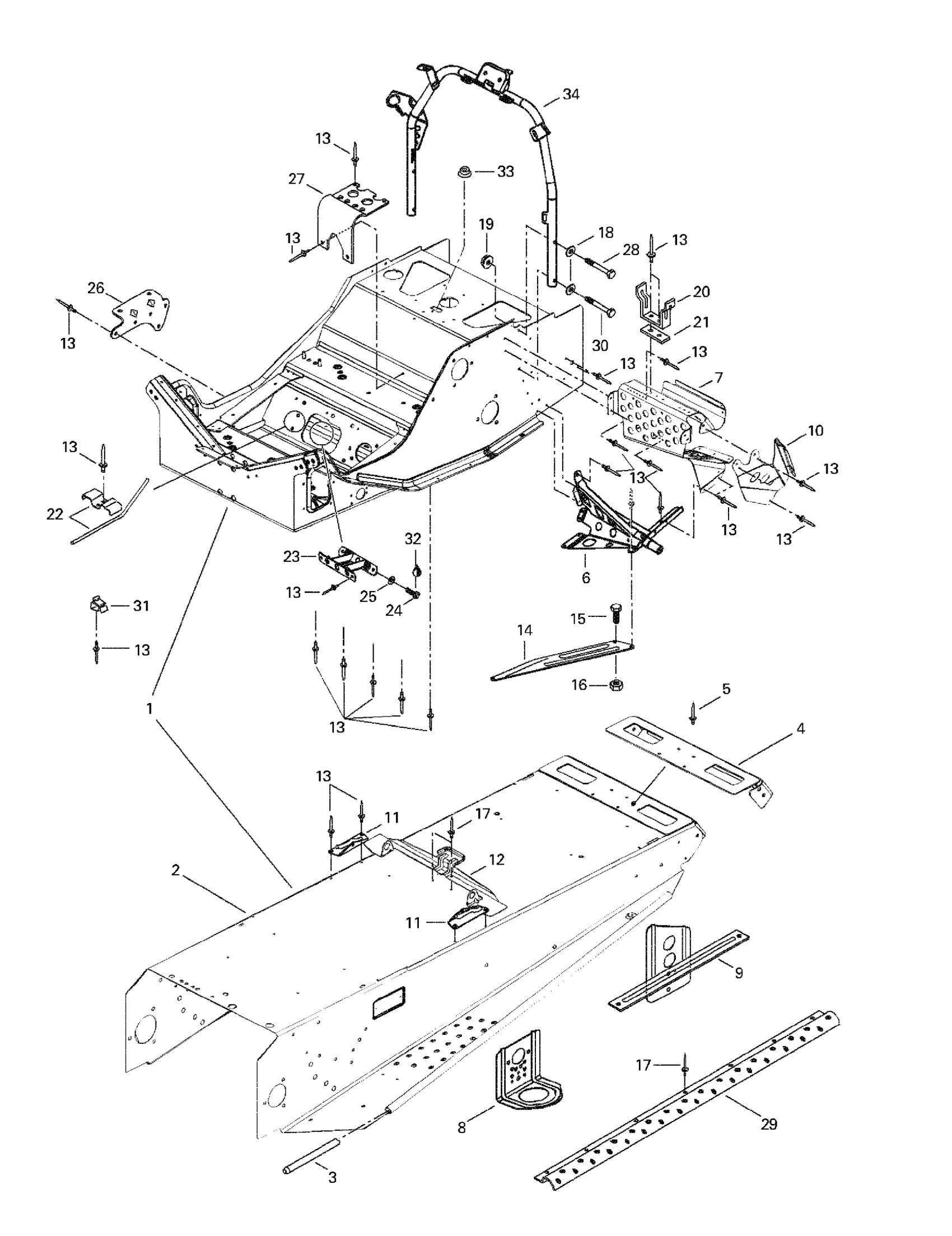

Ski-Doo Summit 500/583/670, 1998 09- Frame And Accessories Diagram

Frame Ass'y | Includes 1 - 17.

518319051

Unavailable

Tunnel | Includes 2 - 5.

518318864

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

Cap-End | Formula III 600 LT.

518317551

Unavailable

Pop Rivet 3/16"

390402200

$0.35

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Footrest Support

518320506

Unavailable

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

Front Bracket

518312910

Unavailable

LH Rear Bracket

518318912

Unavailable

RH Rear Bracket

518318911

Unavailable

Upper Plate L.H

518308729

Unavailable

Upper Plate R.H

518308730

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

Seat Bracket

518317560

Unavailable

Pop Rivet 3/16"

390402200

$0.35

RH Reinf. Plate

518316772

Unavailable

LH Reinf. Plate

518316773

Unavailable

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Elastic Nut M5

233251414

$1.04

Pop Rivet 3/16"

390402400

$0.35

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

518313700

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

Hex. Flange Screw M6 X 35

207063544

$1.37

Non-Skid Strip

518319401

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Clip

414227300

$1.67

Loctite 271, 10 ml

293800005

$26.99

CAP - Call your local BRP dealership

414859400

Unavailable

Handle Steering Support

518309200

Unavailable
