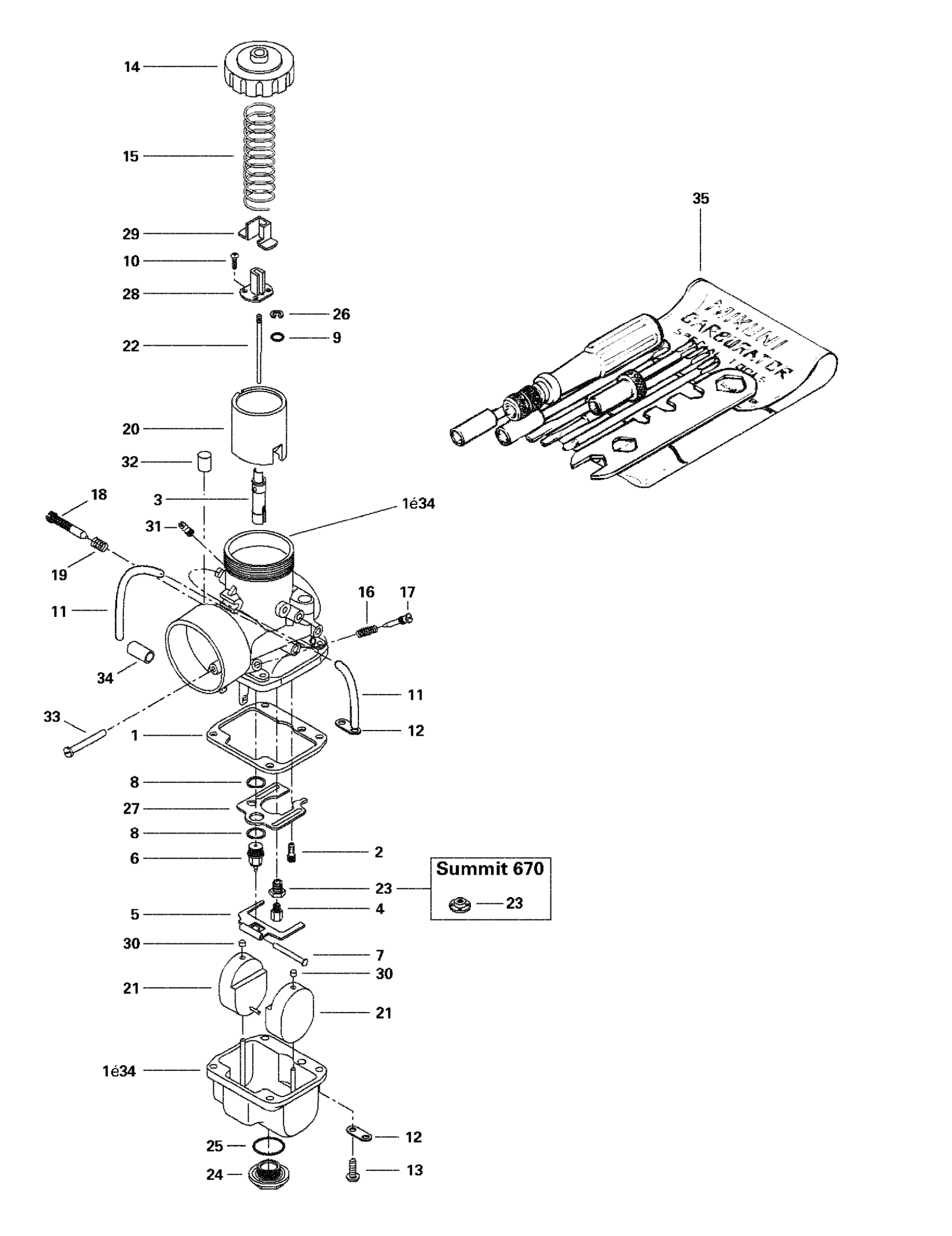

Ski-Doo Summit 500/583/670, 1998 02- Carburetors Diagram

#

Description
Price

1

Carburetor VM 38-384 (PTO) | Includes 1 - 34. Summit 500.

403134800

Unavailable

Carburetor VM 38-385 (MAG) | Summit 500.

403134900

Unavailable

1

Carburetor VM 38-388 (PTO) | Includes 1 - 34. Summit 583.

403136500

Unavailable

Carburetor VM 38-389 (MAG) | Summit 583.

403136600

Unavailable

1

Carburetor VM 40-103 (PTO) | Includes 1 - 34. Summit 670.

403136900

Unavailable

Carburetor VM 40-104 (MAG) | Summit 670.

403137000

Unavailable

1

GASKET - Call your local BRP dealership

404104700

Unavailable

2

Pilot Jet PJ 75 | Summit 500.

404148100

Unavailable

3

Needle Jet NJ-480-Q6 | Summit 500.

404157600

Unavailable

NEEDLE JET 480-P-8 - Call your local BRP dealership | Formula Deluxe 500.

404161700

Unavailable

Needle Jet 224-AA-2 | Formula Z 583.

404148300

Unavailable

4

Main Jet 350

404106000

$5.21

Main Jet 330

404101400

$8.36

Main Jet 330

404101400

$8.36

Main Jet MJ 320 (PTO) | Grand Touring 500.

404101300

$8.36

Main Jet 380

404106300

$5.21

Main Jet MJ 370 (MAG) | Summit 670.

404106200

$5.21

5

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

6

Needle Valve 1.5

404147400

$42.49

7

Lever Pin

404103300

$6.27

8

Seat Washer

404101600

$3.29

9

Packing

404117000

$3.29

10

Screw With Washer

404121300

$4.14

11

Hose | Grand Touring SE.

404109800

Unavailable

12

PLATE - Call your local BRP dealership

404103000

Unavailable

13

Screw With Lock Washer

404102000

$3.18

14

COVER - Call your local BRP dealership

404105100

Unavailable

Cover

404126800

Unavailable

15

Spring

404154800

$23.99

Spring

404156500

Unavailable

16

SPRING - Call your local BRP dealership

404139800

Unavailable

17

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

18

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

Throttle Adjustment Screw | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

404151900

Unavailable

19

Spring

404101700

$4.14

20

Throttle Valve 2.5

404161600

Unavailable

Throttle Valve CA 2.5 | Formula Z 583.

404161300

Unavailable

21

FLOAT - Call your local BRP dealership

404105400

Unavailable

22

Jet Needle J8-6DHY48 | Summit 500.

404161500

Unavailable

Jet Needle J8 6FEY1 | Summit 583.

404156800

Unavailable

Jet Needle J8 7DPI1-3 | Summit 670.

404157700

Unavailable

23

Guide Screw

404105500

$31.99

Washer

404116700

Unavailable

24

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

Drain Plug Screw | Formula Deluxe 500.

404112900

Unavailable

25

O-RING - Call your local BRP dealership

404101500

Unavailable

Washer | Formula Deluxe 500.

404112800

Unavailable

26

E-Ring

404152400

$7.27

E-Ring

404152200

$4.14

27

Not Available As Spare Part - Friction Washer

Unavailable

Baffle

404112700

Unavailable

28

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

29

Cover

404122100

$19.49

Cover

404128100

Unavailable

30

Cap

404105800

$6.38

31

Nipple

404153400

$12.16

32

Filter | Formula Deluxe 380.

404158900

Unavailable

33

Plug Screw

404131700

Unavailable

34

Cap

270500095

$9.59

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
