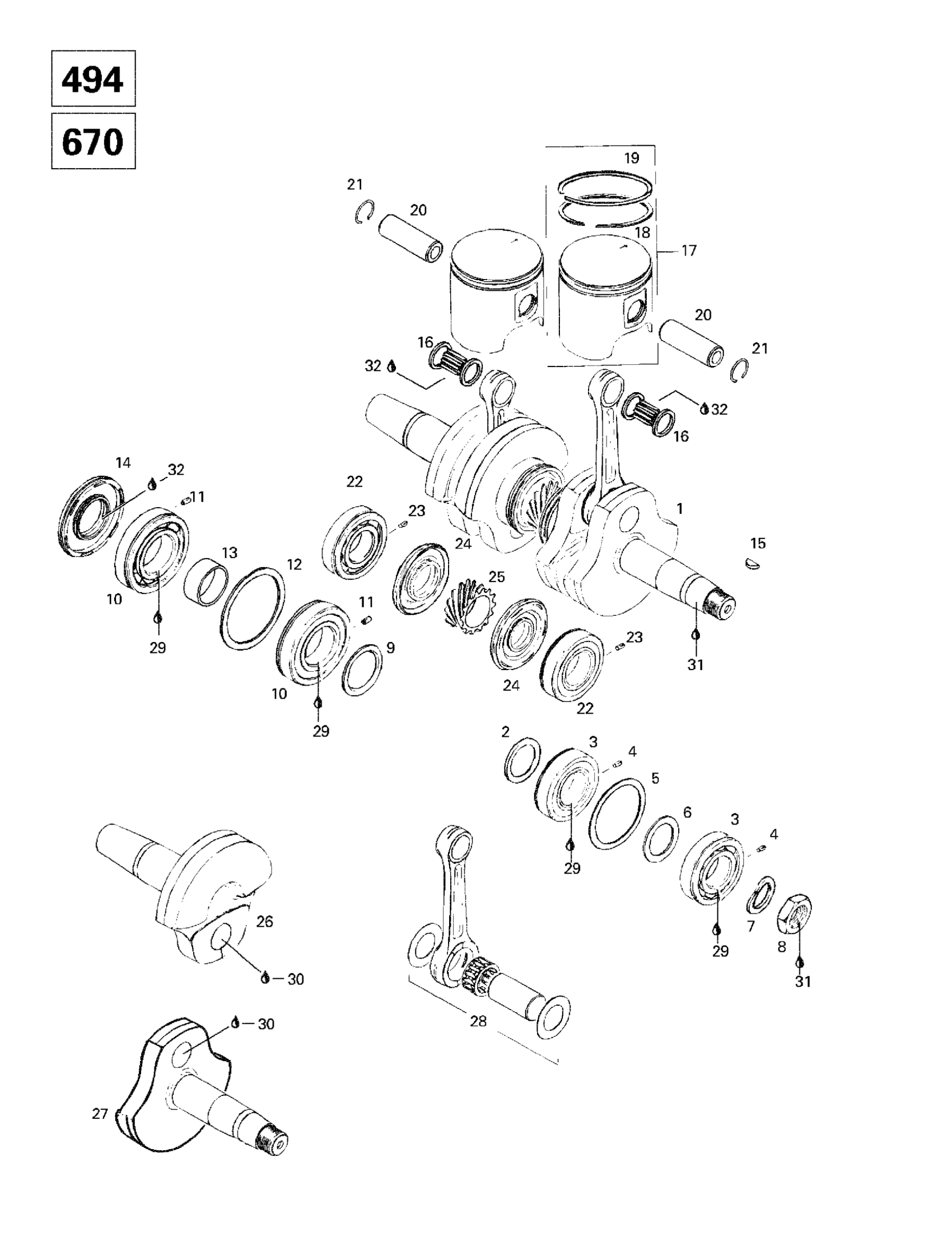

Ski-Doo Summit 500/583/670, 1998 01- Crankshaft And Pistons (494, 670) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 15. Formula Deluxe 500 LC.

420886932

Unavailable

Crankshaft Ass'y | Includes 1 - 15.

420887980

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Lock Washer, 22 mm

420945759

$1.90

8

Hex. Nut, M22 X 1.5

420842239

$17.53

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

Ball Bearing

420832573

$44.49

11

Dowel Pin

420929972

Unavailable

12

Retaining Disk

420927710

$7.41

13

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

14

Oil Seal This part replaces 290831952.

420831952

$18.01

15

Woodruff Key

420246015

$3.17

16

Needle Bearing

420832438

Unavailable

Needle Bearing

420832445

$27.49

17

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Piston Ass'y (2 rings 77.90 mm) | Formula Deluxe 670.

420887610

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

Oversize Pist. Ass'y (2 rings 78.15 mm) | Formula Deluxe 670.

420887611

Unavailable

18

Rectangular Ring 69.5 mm

420915985

Unavailable

Rectangular Ring 78.0 mm | Formula Deluxe 670.

420815025

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.

420815021

Unavailable

19

Semi-trapez Ring 69.5 mm

420815045

Unavailable

SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.

420815090

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

Oversize Semi-trapez Ring 78.25 mm | Formula Deluxe 670.

420815091

Unavailable

20

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

21

Piston Circlip

420945735

$4.46

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

22

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

23

Dowel Pin

420929972

Unavailable

24

Oil Seal

420831990

$20.49

25

Central Gear 14 Teeth

420935748

Unavailable

26

Crankshaft (PTO side)

420818660

Unavailable

Half Crankshaft (P.T.O.)

420818702

Unavailable

27

Crankshaft (MAG side)

420818690

Unavailable

Half Crankshaft (MAG)

420818732

Unavailable

28

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

Crankshaft Rod Repair Kit (MAG)

420887038

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

Crankshaft Rod Repair Kit (P.T.O.)

420887039

Unavailable

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Sealant Loctite 648

219703000

$45.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Dow Corning 111, 150 g

413707000

$59.99
