1981 Yamaha SS440E Track Suspension 1 Diagram

← All diagrams

Find the part on the Track Suspension 1 diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

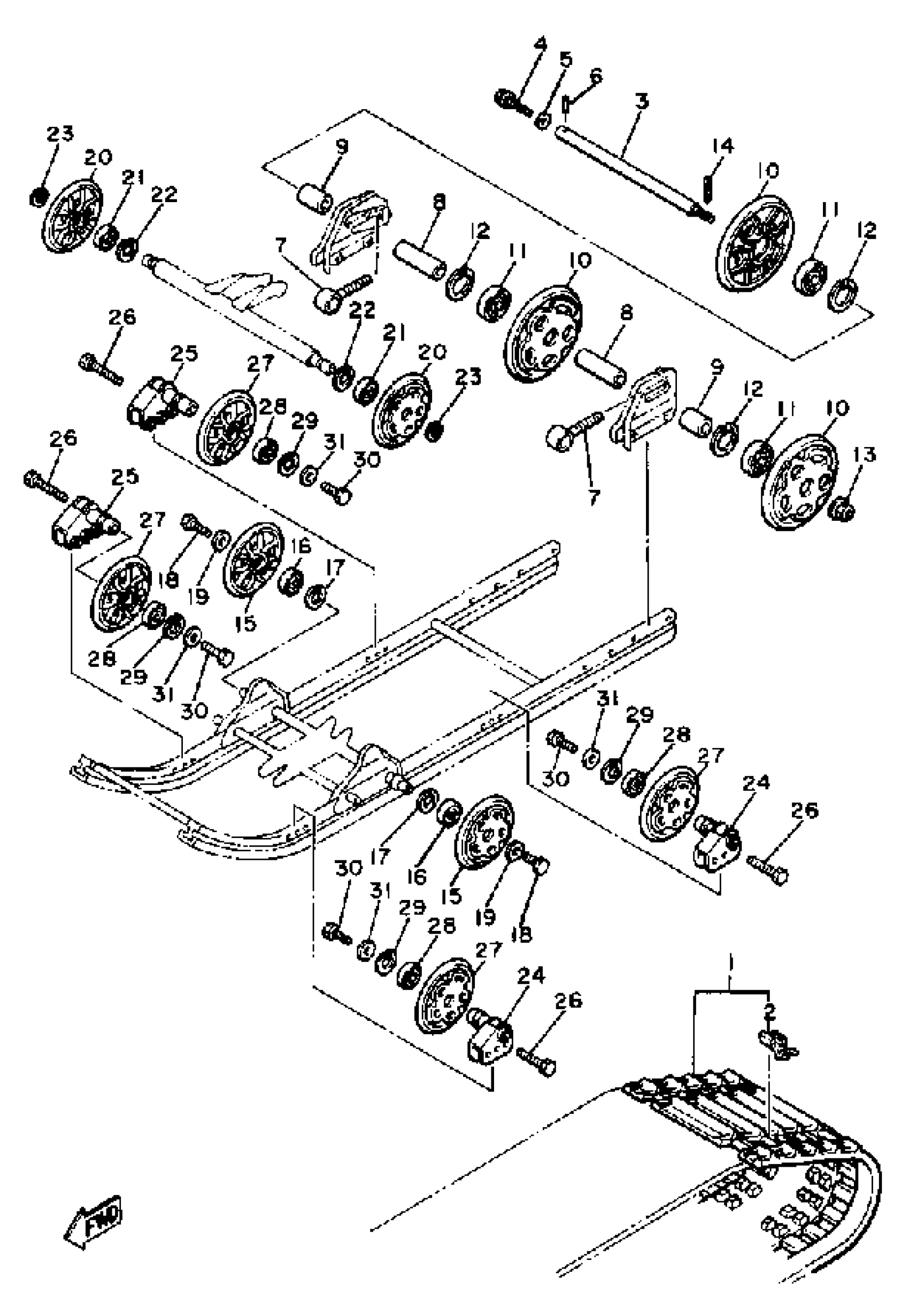

1981 Yamaha SS440E Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASY

8V0-47110-00-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

REAR AXLE COMP.

8L8-47520-02-00

1

$83.57

In stock

4

BOLT,FLANGE

95817-12025-00

—

$6.09

In stock

5

WASHER, PLATE (8K2)

90201-120A5-00

1

$5.00

In stock

6

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock

7

COLLAR 3

8K2-47479-01-00

1

$25.69

In stock

8

GUIDE WHEEL COMP.

8K2-47530-00-00

1

$117.57

In stock

8

COLLAR

90387-20756-00

1
Out of stock

8

COLLAR

90387-21757-00

1
Out of stock

11

1

$33.86

In stock

12

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

13

NUT, SELF-LOCKING (8BF)

95607-14200-00

1
Out of stock

14

PIN COTTER

91490-30025-00

1
Out of stock

15

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

16

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

17

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

18

BOLT (8K2)

90109-08559-00

—

$6.92

In stock

19

WASHER (8G1)

90201-08681-00

—

$6.22

In stock

20

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

21

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

22

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

23

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

24

BRACKET 4

8L8-47418-00-00

1
Out of stock

25

. BRACKET 7

8L8-47419-00-00

1
Out of stock

26

BOLT(21W)

97017-06035-00

—

$2.91

In stock

27

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

28

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

29

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

30

BOLT (8K2)

90109-08559-00

—

$6.92

In stock

31

WASHER (8G1)

90201-08681-00

—

$6.22

In stock
