1981 Yamaha SS440E Pump Drive - Gear Diagram

← All diagrams

Find the part on the Pump Drive - Gear diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

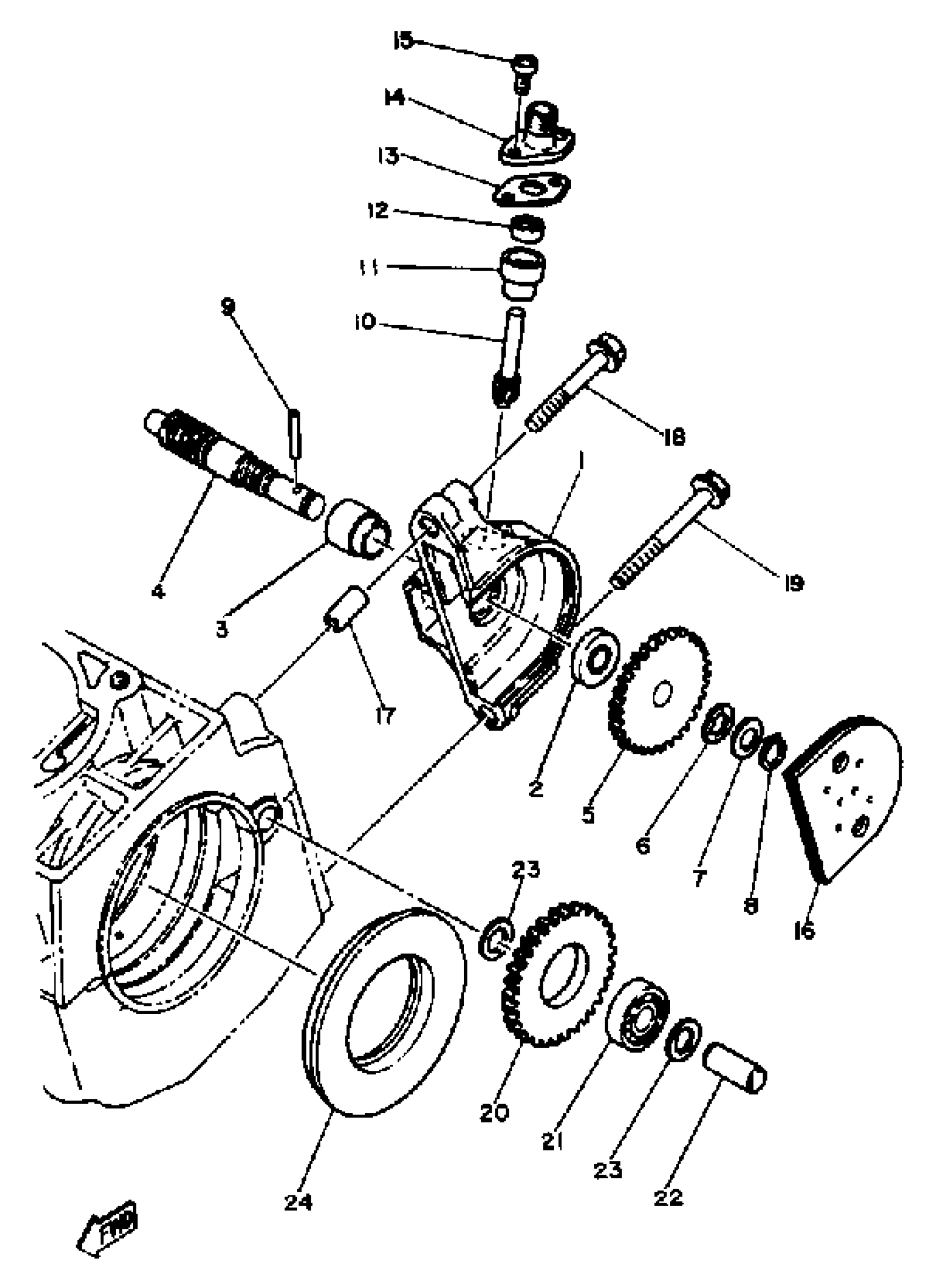

1981 Yamaha SS440E Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8H8-15416-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

SHAFT, WORM

866-13175-00-00

—

$28.00

In stock

5

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

6

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

11

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

12

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

13

GASKET

821-17818-02-00

1

$5.66

In stock

14

CAP, HOUSING

821-17819-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

COVER, OIL PUMP 2

8K4-15426-00-00

—
Out of stock

17

PIN, DOWEL(3XW)

91808-16023-00

—

$5.48

In stock

18

BOLT, FLANGE

95817-06040-00

—

$4.54

In stock

19

BOLT, FLANGE

95817-06055-00

—

$2.00

In stock

20

GEAR, IDLE (34T)

8H8-13179-00-00

—
Out of stock

21

—

$29.35

In stock

22

SHAFT, IDLE GEAR

8G8-13342-00-00

—
Out of stock

23

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

24

SEAL, GREASE

8K4-13119-00-00

—
Out of stock
