TRACK DRIVE 2

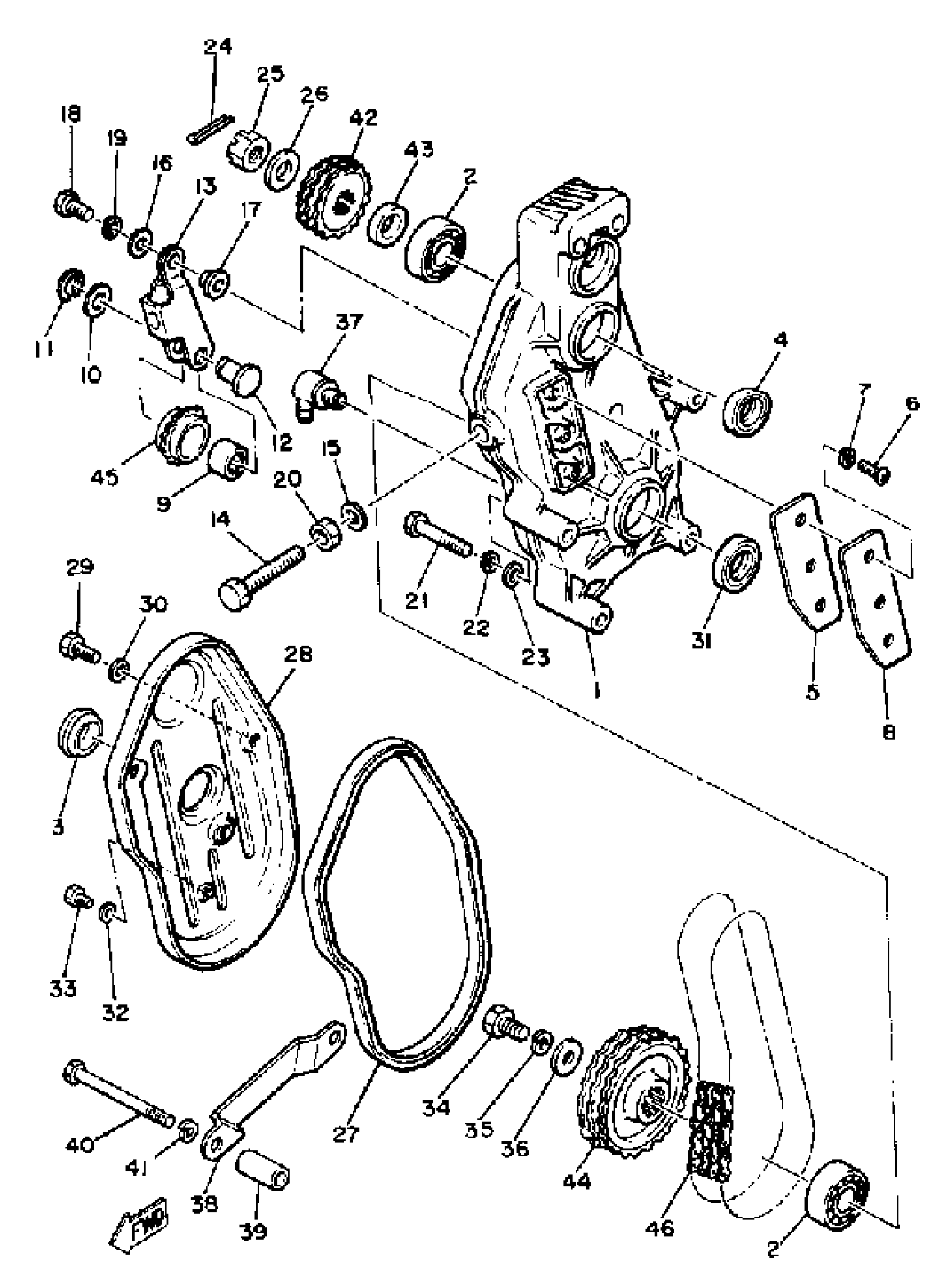

1981 Yamaha SS440E Track Drive 2 Diagram
Find the part on the Track Drive 2 diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HOUSING, CHAIN
8K4-47541-00-00
2
CAP
8L8-22315-00-00
5
GASKET (8K4-47592-00)
86K-47592-00-00
8
PLATE
8K4-47591-00-00
10
WASHER, PLATE (583)
90201-12631-00
12
PIN, SPECL SHAPE
90249-12135-00
13
HOLDER
8K4-47613-00-00
21
BOLT
97021-08065-00
26
WASHER (853)
90208-20008-00
27
UNAVAILABLE IN PRICE BOOK (8L8-47558-00)
8K8-47558-00-00
28
CAP, HOUSING
8K4-47543-00-00
29
BOLT, HEXAGON
97017-08016-00
31
OIL SEAL (25X44X6-810)
93102-25081-00
37
PIPE, JOINT
8E4-24461-00-00
38
STAY 1
8K4-47565-00-00
40
BOLT (97321-08090)
97023-08090-00
42
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
42
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
42
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
42
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
42
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
42
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
42
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
42
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
43
COLLAR
90387-25798-00
44
SPROCKET,CHN DRVN
8U9-47548-90-00
44
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
44
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
44
SPROCKET, CHN DRVN (878-47587-20) (35T)
8U9-47587-30-00
45
WHEEL
8L0-47612-00-00
46
CHAIN 66 (RS35V-3 66L)
94850-35066-00
46
CHAIN 68 (RS35V-368L)
94850-35068-00
46
CHAIN 8H8
94890-03064-00
