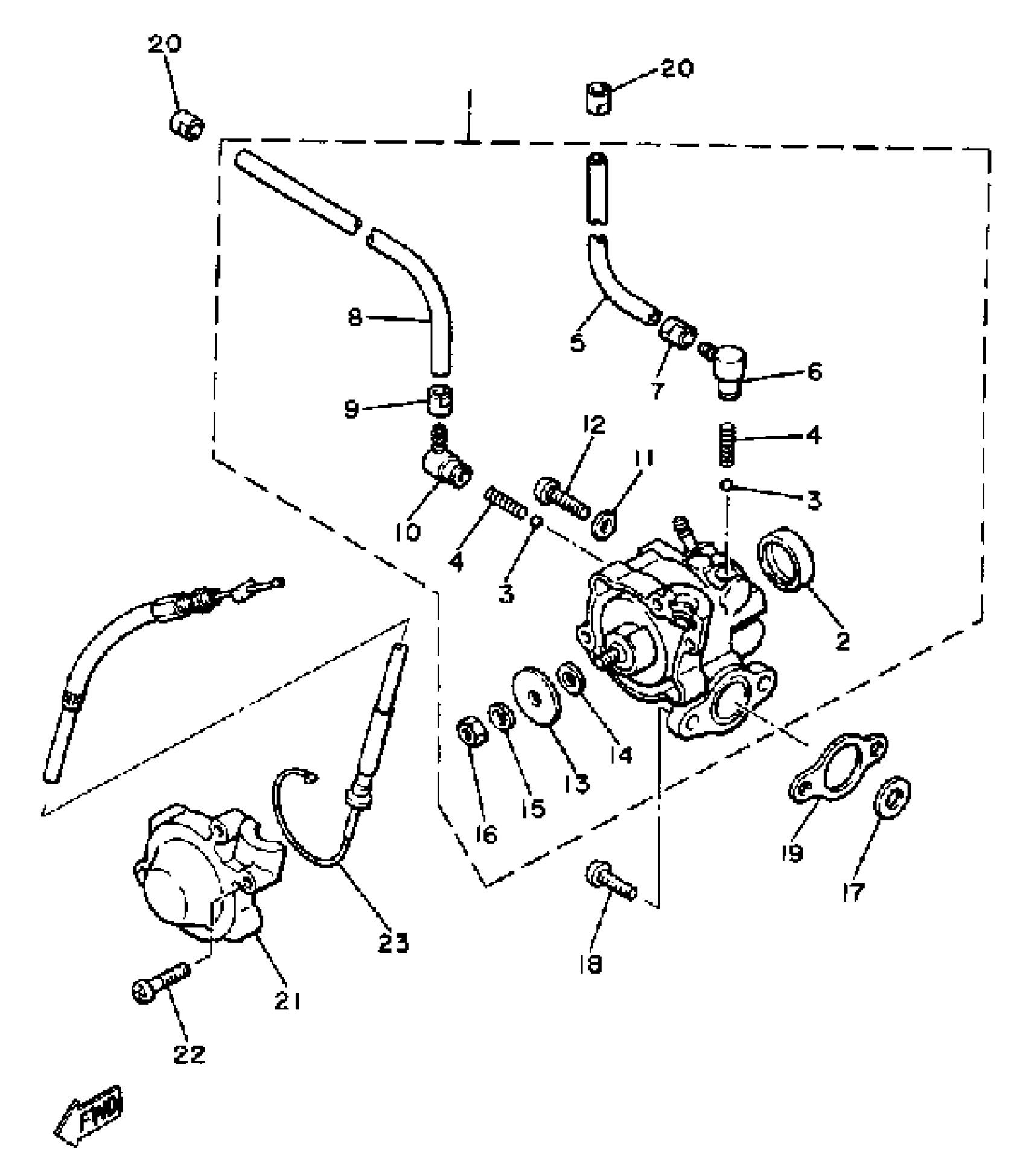

Find the part on the OIL Pump diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SS440E OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8K4-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

8

HOSE (L700)

90445-05M07-00

1
Out of stock

9

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

10

NOZZLE

353-13552-01-00

1
Out of stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

14

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

14

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

18

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock

19

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

20

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

21

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

22

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

23

PUMP CABLE ASSY

8L8-26320-05-00

—
Out of stock
