1981 Yamaha SS440E Guard - Luggage BOX Diagram

← All diagrams

Find the part on the Guard - Luggage BOX diagram for your 1981 Yamaha SS440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

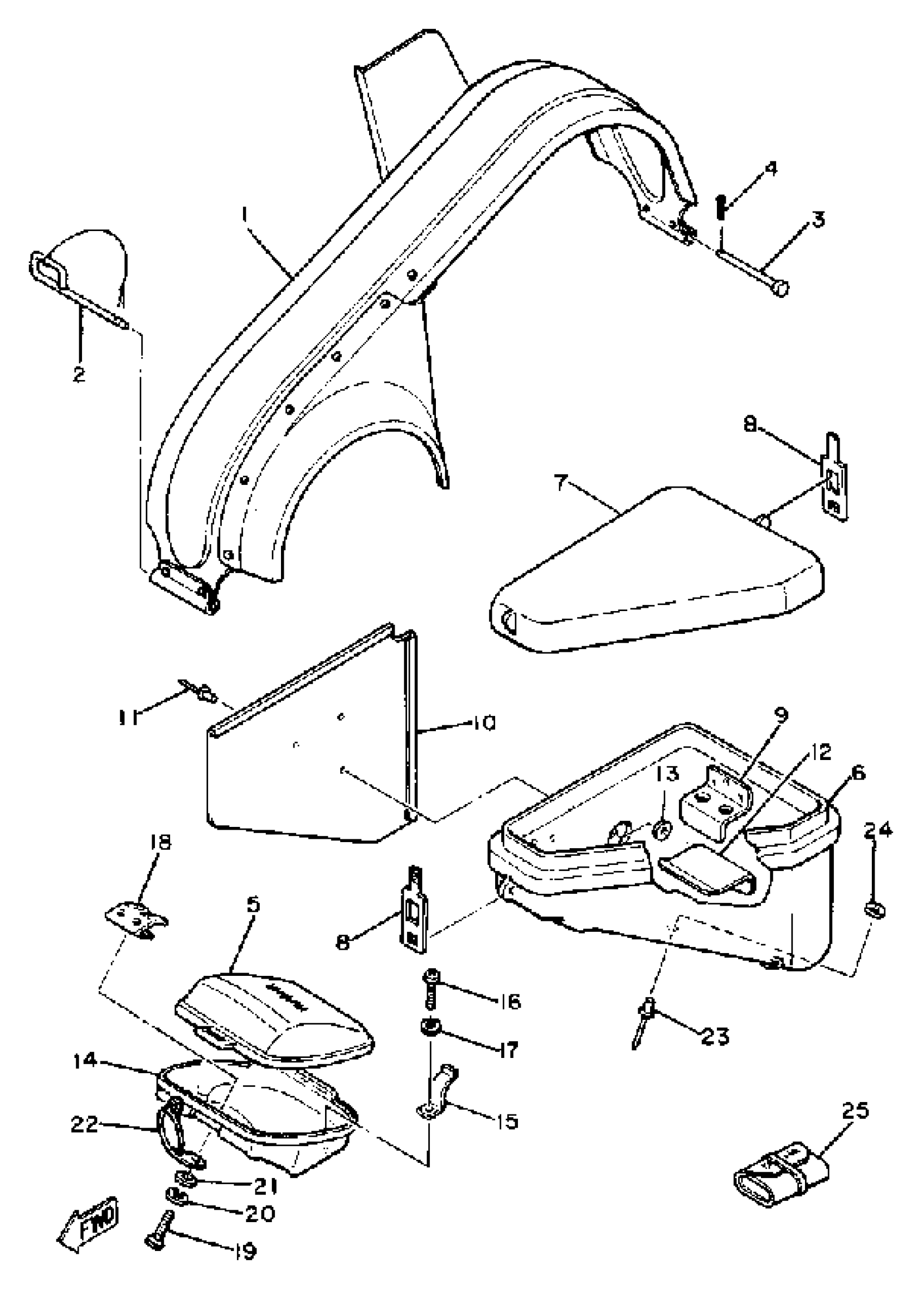

1981 Yamaha SS440E Guard - Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

(8L8-77311-00-00)

1
Out of stock

2

SHAFT

8F3-77327-00-00

1
Out of stock

3

PIN(8E7)

91701-06082-00

1

$4.60

In stock

4

CLIP

90468-18008-00

1

$1.35

In stock

5

LID

1T4-2177E-00-00

1
Out of stock

6

BOX, TOOL

8H8-77381-00-00

1
Out of stock

7

LID, TOOL BOX

8H8-77382-00-00

1
Out of stock

8

HOOK

J10-14436-00-00

1

$3.08

In stock

9

BRACKET, SPARK PLUG

8H8-77376-00-00

1
Out of stock

10

PROTECTOR

(8H8-77373-01-00)

1
Out of stock

11

RIVET, BLIND

90267-48032-00

1
Out of stock

12

HOLDER, TOOL

8H8-28175-00-00

—

$2.42

In stock

13

WASHER, PLATE

90201-04027-00

1
Out of stock

14

BOX

1T4-2177A-00-00

1
Out of stock

15

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

HOOK 1

8K4-77386-00-00

1
Out of stock

23

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

24

WASHER, PLATE

90201-04027-00

1
Out of stock

25

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
