1980 Yamaha SS440D Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

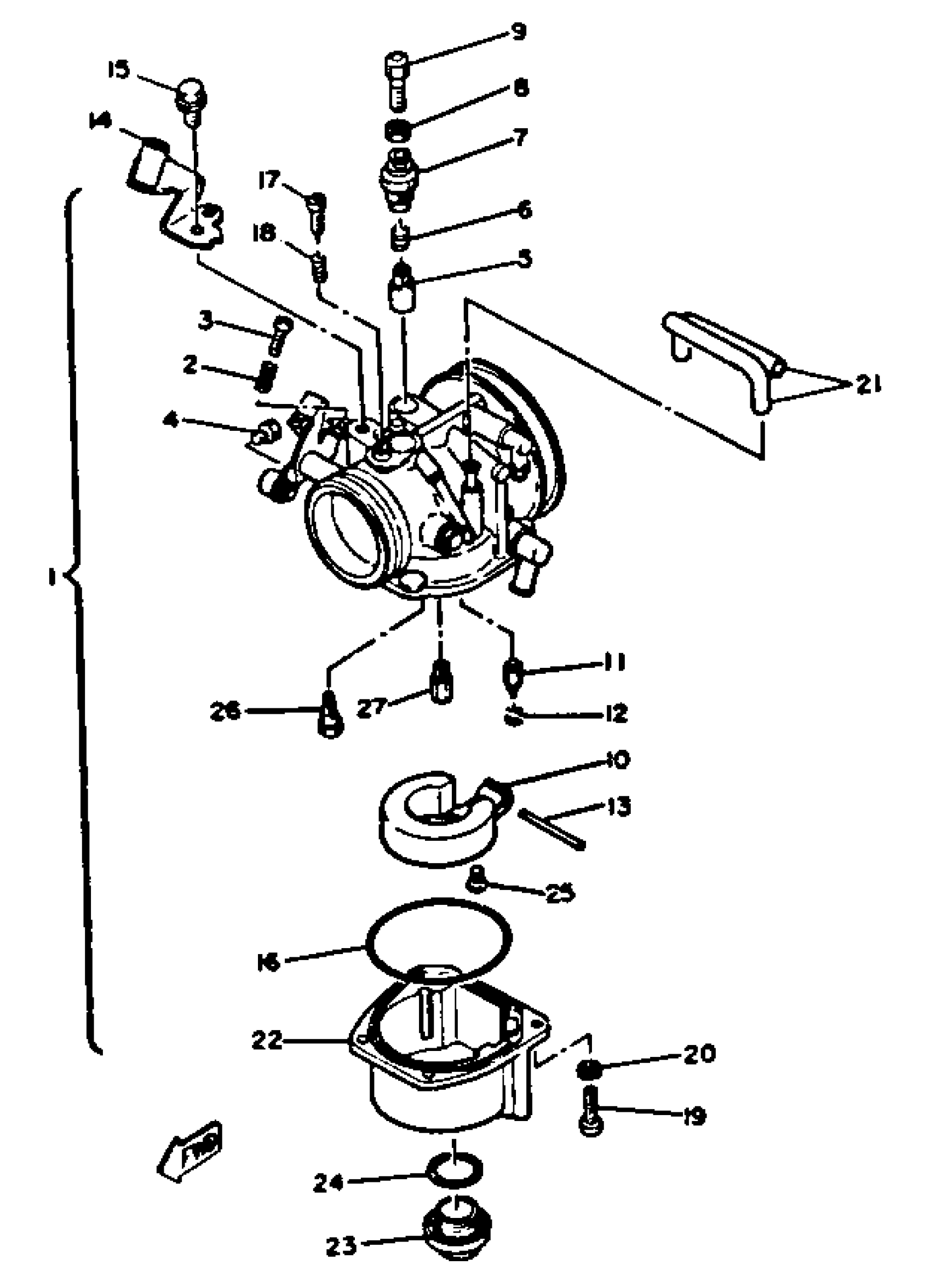

1980 Yamaha SS440D Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASS''Y 1

8K-41410-10-00

1
Out of stock

2

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

3

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

4

SCREW

(8F3-14591-00-00)

1
Out of stock

5

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

6

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

7

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

8

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

9

1

$19.06

In stock

10

FLOAT

8G6-14985-01-00

1

$32.43

In stock

11

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

12

CLIP

633-14159-00-00

1

$13.88

In stock

13

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

14

. PLATE, STAY

8G6-14572-00-00

1
Out of stock

15

. SCREW

8G6-14592-00-00

1
Out of stock

16

WASHER, FLOAT CHAMBER

8G6-14984-00-00

—

$16.62

In stock

17

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

18

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

19

. SCREW, pan head (98502-04040)

97-60204-11-40

1
Out of stock

20

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

21

. NET, FILTER

8G6-14994-01-00

1
Out of stock

22

. BODY, FLOAT CHAMBER

8K4-14980-00-00

1
Out of stock

23

. ROD

8M7-14992-00-00

1
Out of stock

24

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

25

SCREW, FLAT

98707-04008-00

1
Out of stock

26

. JET #80

8G6-14948-19-00

1
Out of stock

27

. JET, main (#115)

8A6-14516-15-00

1
Out of stock

27

. JET, MAIN #120

8A6-14516-20-00

1
Out of stock

27

. JET, MAIN #125

8A6-14516-25-00

1
Out of stock

27

. JET, MAIN #130

8A6-14516-30-00

1
Out of stock

27

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

27

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock
← AIR Cleaner Fuel Tank →
