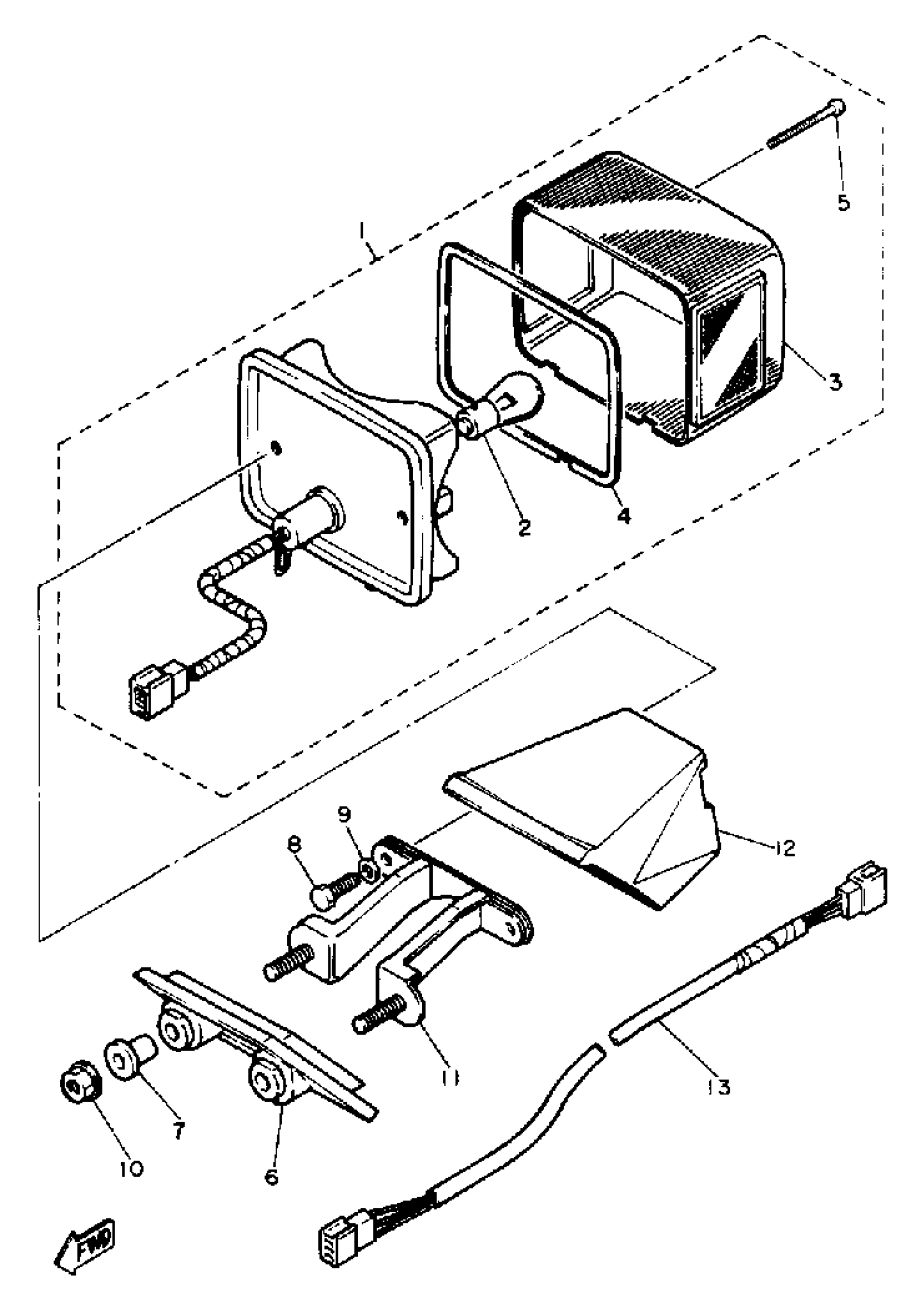

Find the part on the Taillight diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha SRX600 CA (SRX600SC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1UV-84710-60-00

1
Out of stock

2

BULB

5FC-84714-00-00

1
Out of stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

6

DAMPER

34X-84527-00-00

1
Out of stock

7

COLLAR

90387-06158-00

1

$6.17

In stock

8

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

11

BRACKET 1

2EF-84781-00-00

1
Out of stock

12

SEAT, BASE

2EF-84742-00-00

1
Out of stock

13

CORD, TAILLIGHT

2EF-84517-00-00

1
Out of stock
