1986 Yamaha SRX600 CA (SRX600SC) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

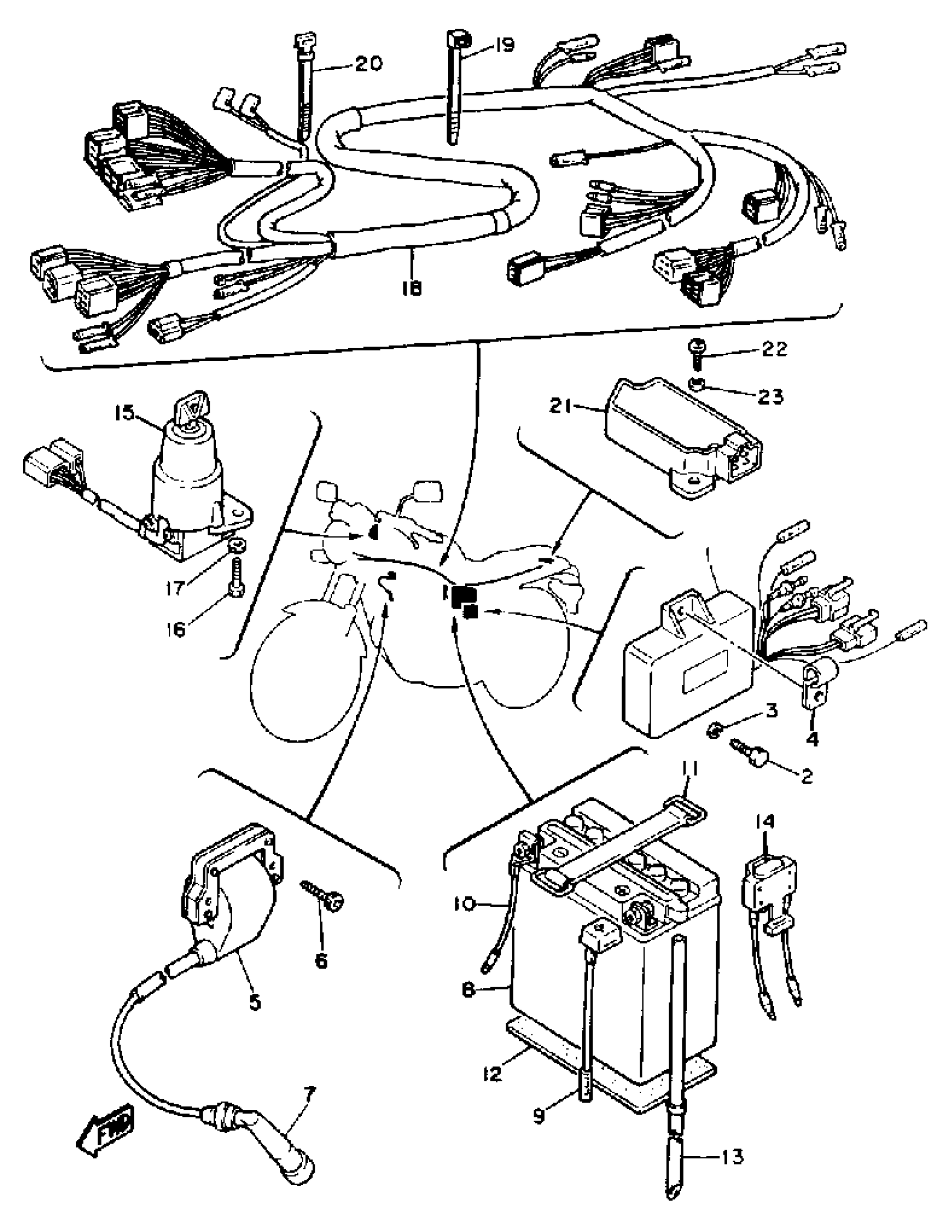

1986 Yamaha SRX600 CA (SRX600SC) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

1XL-85540-50-00

1
Out of stock

2

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

CLAMP

90462-08042-00

1
Out of stock

5

IGNITION COIL ASSEMBLY

43F-82310-51-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

PLUG CAP ASSY

4VW-82370-00-00

1
Out of stock

8

12N53B YUASA BATTERY

12N-53BY0-00-00

1
Out of stock

9

WIRE, PLUS LEAD

1M1-82115-00-00

—
Out of stock

10

WIRE, MINUS LEAD

2J2-82116-00-00

1
Out of stock

11

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

12

SEAT, BATTERY

5Y1-82122-00-00

1

$6.52

In stock

13

HOSE

90445-08782-00

1
Out of stock

14

CIRCUIT BREAKER ASSEMBLY

5Y1-82180-00-00

1
Out of stock

15

MAIN SWITCH ASSEMBLYASSEMBLY

3GW-82501-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

WIRE HARNESS ASSEMBLY

2EF-82590-00-00

1
Out of stock

19

CLAMP(MF1)

90464-15152-00

—

$4.37

In stock

20

BAND

1UA-82591-00-00

—
Out of stock

21

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

—
Out of stock

22

SCREW, PAN

98507-06014-00

—

$6.18

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
