1986 Yamaha SRX600 CA (SRX600SC) Steering Diagram

← All diagrams

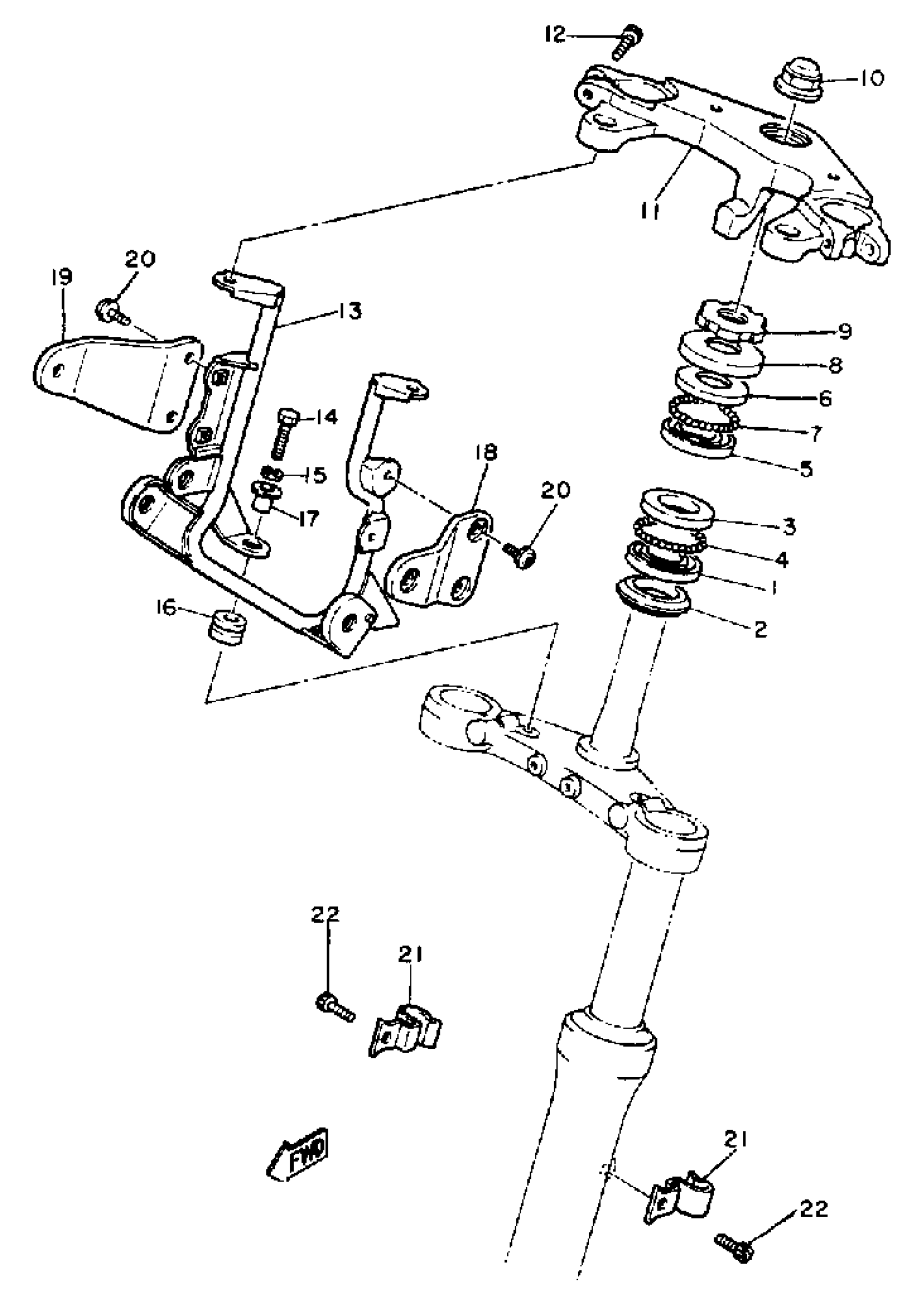

Find the part on the Steering diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha SRX600 CA (SRX600SC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

256-23411-00-00

1
Out of stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

4

BALL

93501-04011-00

1
Out of stock

5

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

6

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

7

BALL

93501-04011-00

1
Out of stock

8

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

11

CROWN, HANDLE

1JK-23435-00-00

1
Out of stock

12

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

13

STAY, HEADLIGHT

1JK-23174-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

15

WASHER, SPRING

92907-06100-00

1
Out of stock

16

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

17

COLLAR

90387-06158-00

—

$6.17

In stock

18

COVER, UPPER 1

3XC-23121-01-00

1
Out of stock

19

COVER,UPPER 2

3XC-23131-01-00

1
Out of stock

20

SCREW(1XL)

90149-06264-00

—
Out of stock

21

PLATE 2

1JK-21524-00-00

1
Out of stock

22

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock
