1986 Yamaha SRX600 CA (SRX600SC) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

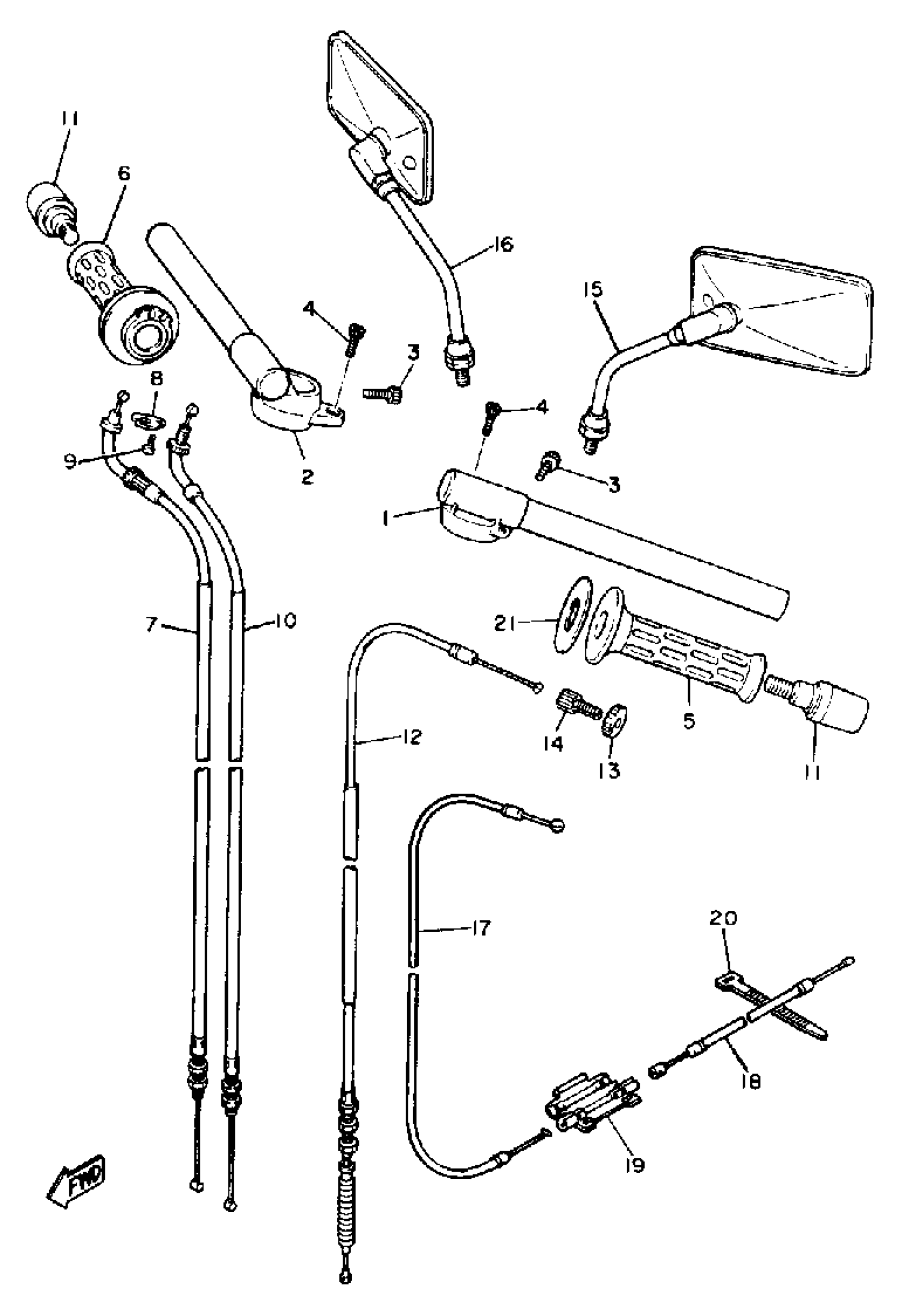

1986 Yamaha SRX600 CA (SRX600SC) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR LH (1JK-26121-00)

1JK-26121-01-00

1
Out of stock

2

HANDLEBAR RH (1JK-26122-00)

1JK-26122-01-00

1
Out of stock

3

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

4

1

$7.05

In stock

5

GRIP (L.H)

51Y-26241-00-00

—

$36.60

In stock

6

GRIP ASSY

51Y-26240-00-00

—

$46.38

In stock

7

CABLE, THROTTLE 1

1JK-26311-00-00

1

$30.80

In stock

8

HOLDER

5H0-26393-00-00

1

$6.72

In stock

9

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

10

CABLE, THROTTLE

1JK-26312-01-00

—

$56.98

In stock

11

END, GRIP

51Y-26246-00-00

1
Out of stock

12

WIRE, CLUTCH

1JK-26335-01-00

—
Out of stock

13

NUT

90179-08030-00

1

$3.78

In stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

—

$160.88

In stock

16

—

$77.08

In stock

17

CABLE, STARTER 1 (1JK-26331-00)

1JK-26331-01-00

1
Out of stock

18

CABLE, STARTER 2

1JK-26334-00-00

1
Out of stock

19

CONNECTOR, CABLE

53L-26261-01-00

—
Out of stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

RING, LEAF

31A-26249-00-00

1
Out of stock
