1986 Yamaha SRX600 CA (SRX600SC) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Yamaha SRX600 CA (SRX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

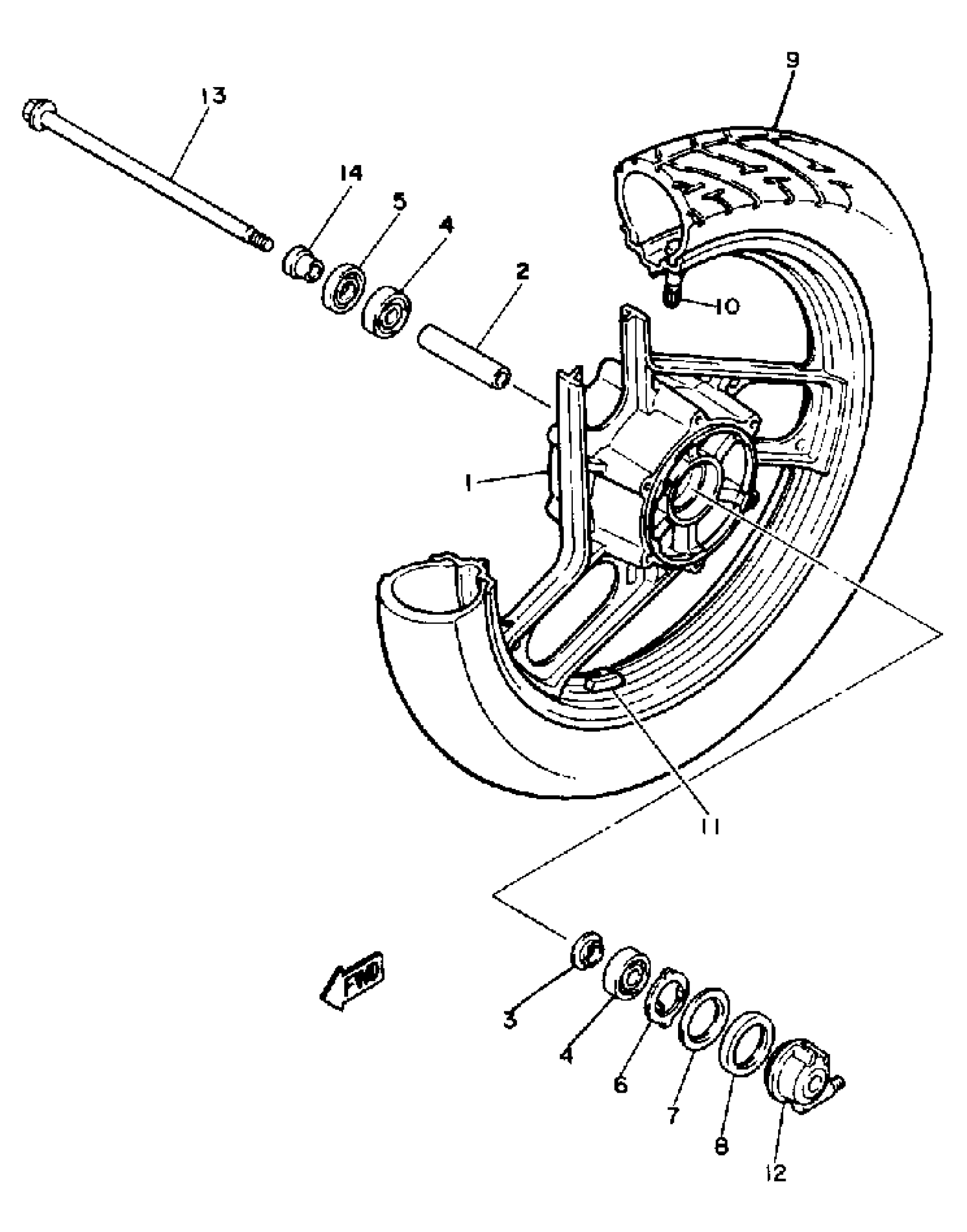

1986 Yamaha SRX600 CA (SRX600SC) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

1JK-25168-00-MA

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

6

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

8

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

9

100/80-18G527A BS

94110-182H2-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

94-11018-2H-30

1
Out of stock

10

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

10

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

11

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

11

BALANCER, WHEEL

5MT-25398-10-00

1

$15.37

In stock

11

BALANCER, WHEEL

5MT-25398-20-00

—

$38.22

In stock

12

GEAR UNIT ASSY

4X8-25190-10-00

—
Out of stock

13

AXLE, WHEEL

10W-25381-00-00

—
Out of stock

14

COLLAR (1L9)

90387-15550-00

—
Out of stock
