1981 Yamaha SRX440E Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

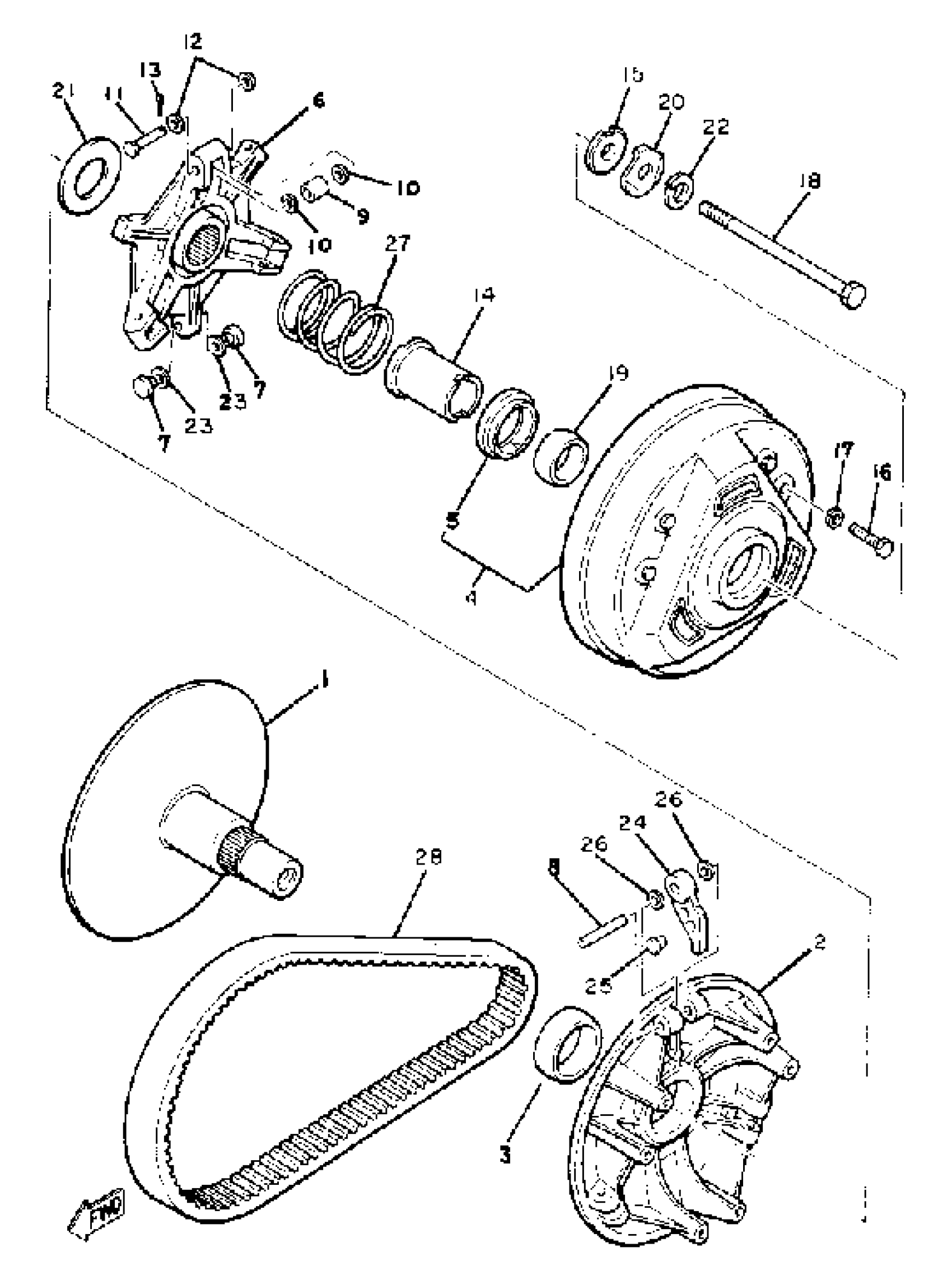

1981 Yamaha SRX440E Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8J0-17610-01-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-41021-00

1
Out of stock

4

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

5

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

6

SPIDER

8J0-17627-00-00

1
Out of stock

7

SLIDER

8F2-17653-00-00

1

$10.03

In stock

8

PIN, DOWEL (8V8)

93607-44190-00

1
Out of stock

9

COLLAR

8K2-17645-00-00

1
Out of stock

10

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

11

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

COLLAR

90387-28721-00

1
Out of stock

15

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT

90101-13406-00

1
Out of stock

19

BUSH, SPEC''L SHAPE

90389-34020-00

1
Out of stock

20

WASHER, LOCK

90215-13047-00

1
Out of stock

21

WASHER, PLATE

90201-32710-00

1
Out of stock

22

WASHER, SPRING

90204-13010-00

1
Out of stock

23

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

24

WEIGHT, CLUTCH (STD) (8M6-17632-00)

8M6-17632-00-00

1
Out of stock

24

WEIGHT, CLUTCH

8M6-17632-70-00

1
Out of stock

25

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

26

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

27

SPRING, YEL/YEL

(90501-55355-00)

1
Out of stock

27

SPRING, COMPRESSION

(90501-55403-00)

1
Out of stock

28

CLUTCH SUB ASSEMBLY

8K2-17602-09-00

1
Out of stock

28

CLTCH TUNE UP KIT

8L9-00000-50-00

1
Out of stock

28

CLUTCH WEIGHT KIT

8M6-17000-10-00

1
Out of stock

28

V-BELT

8M6-17641-00-00

1
Out of stock
