1981 Yamaha SRX440E Track Suspension 2 Diagram

← All diagrams

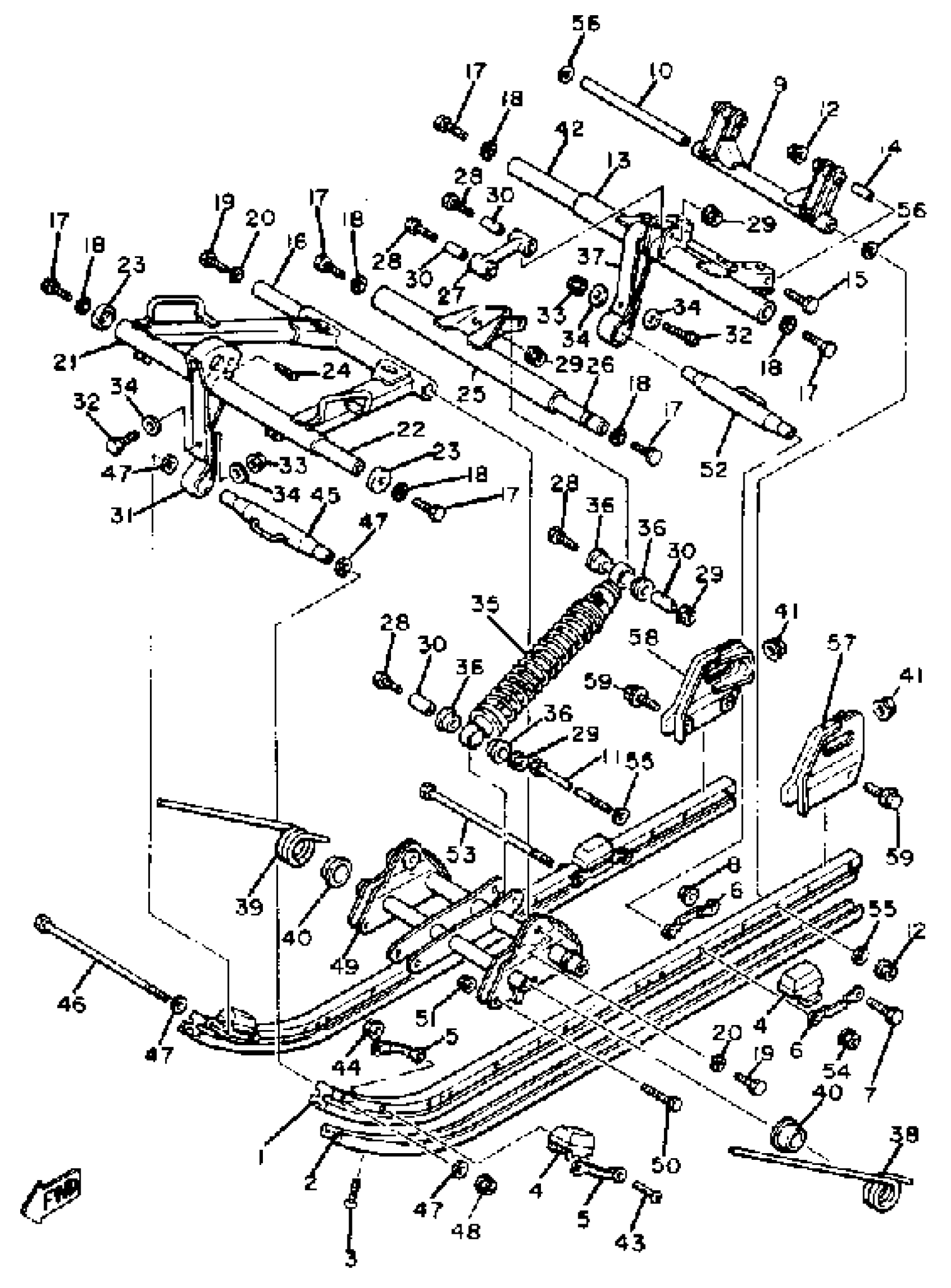

Find the part on the Track Suspension 2 diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

8M6-47411-00-00

1
Out of stock

2

RUNNER,SLIDING 1

8R9-47421-00-XX

1
Out of stock

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

4

DAMPER 1

8L8-47456-00-00

1
Out of stock

5

PLATE, DAMPER

885-47458-01-00

1
Out of stock

6

PLATE, DAMPER

8H8-47458-00-00

1
Out of stock

7

BOLT

97013-08035-00

1

$4.80

In stock

8

NUT, NYLON

95717-08300-00

1

$2.57

In stock

9

BRACKET 3

8L8-47417-00-00

1
Out of stock

10

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

11

BOLT (8M8)

90101-08374-00

—
Out of stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

ARM, PIVOT 2

8K2-47332-01-00

1
Out of stock

14

COLLAR (8K2)

90387-08754-00

1

$5.75

In stock

15

. BOLT

90101-08557-00

1
Out of stock

16

SHAFT 3

82M-47485-02-00

1
Out of stock

17

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

18

WASHER, TTH

92907-10400-00

1
Out of stock

19

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

20

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

21

ARM, PIVOT 1

8K2-47331-00-00

1
Out of stock

22

SHAFT 1

885-47465-03-00

1
Out of stock

23

SPACER

885-47341-00-00

1
Out of stock

24

PIN, COTTER

(91402-30045-00)

1
Out of stock

25

BRACKET 5

8K2-47463-00-00

1
Out of stock

26

SHAFT 2

8L8-47475-00-00

—

$86.18

In stock

27

BRACKET 6

8K2-47464-00-00

1
Out of stock

28

. BOLT

90101-08557-00

1
Out of stock

29

NUT, NYLON

95717-08300-00

1

$2.57

In stock

30

COLLAR (8K2)

90387-08754-00

1

$5.75

In stock

31

STOPPER 1

8E3-47495-00-00

1
Out of stock

32

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

33

NUT, NYLON

95707-06300-00

—

$3.20

In stock

34

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

35

SHOCK ABSORBER

8L8-47480-00-00

1
Out of stock

36

COLLAR

90387-13758-00

1
Out of stock

37

STOPPER 1

888-47495-02-00

—

$41.20

In stock

38

SPRING, TORSION

90508-99482-00

1
Out of stock

39

SPRING, TORSION

90508-99483-00

1
Out of stock

40

COLLAR

90387-30570-00

1
Out of stock

41

NUT, NYLON

95707-10300-00

—

$6.68

In stock

42

SHAFT 1

8L8-47465-00-00

1
Out of stock

43

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

44

NUT, NYLON

95707-05300-00

—

$2.74

In stock

45

BRACKET 1

899-47415-00-00

1
Out of stock

46

BOLT (8M8)

90101-08374-00

—
Out of stock

47

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

48

NUT, NYLON

95717-08300-00

1

$2.57

In stock

49

BRACKET 2

(8L9-47416-00-00)

1
Out of stock

50

BOLT(21W)

97017-06035-00

—

$2.91

In stock

51

NUT, NYLON

95707-06300-00

—

$3.20

In stock

52

COLLAR 1

8L8-47469-00-00

1
Out of stock

53

BOLT (8M8)

90101-08374-00

—
Out of stock

54

NUT, NYLON

95717-08300-00

1

$2.57

In stock

55

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

56

WASHER (1T1)

90201-08649-00

—
Out of stock

57

FRAME, SLIDING 2

8L8-47412-00-00

1
Out of stock

58

FRAME, SLIDING 3

8L8-47413-00-00

1
Out of stock

59

BOLT, WITH WASHER

90119-08008-00

1
Out of stock
