1981 Yamaha SRX440E Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

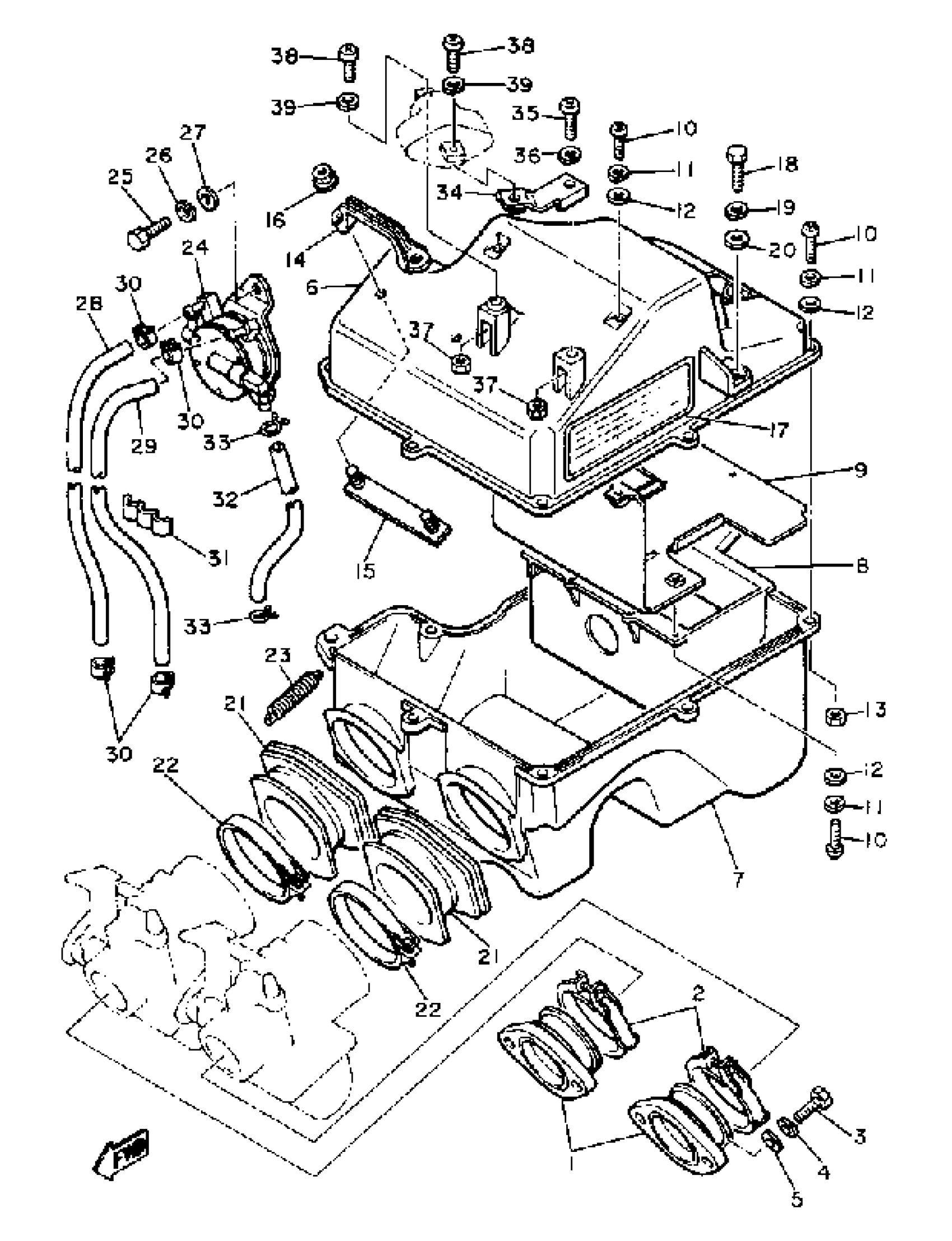

1981 Yamaha SRX440E Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

2

CLAMP, HOSE

90460-60084-00

1
Out of stock

3

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

SILENCER, INTAKE 1

8M6-14431-00-00

1
Out of stock

7

SILENCER,INTAKE 2

8M6-14441-01-00

1
Out of stock

8

PLATE, ELEMENT

8M6-14472-00-00

1
Out of stock

9

PLATE

(8M6-14477-00-00)

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

13

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

14

STAY, THRTL VALVE

8M6-14497-00-00

1
Out of stock

15

PLATE, CLNR CS FTNG

8M6-14484-00-00

1
Out of stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

21

JOINT 1

(99999-01173-00)

1
Out of stock

22

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

23

SPRING, TENSION

90506-06243-00

1
Out of stock

24

FUEL PUMP ASSEMBLY

8M6-24410-00-00

1
Out of stock

25

BOLT (661)

97013-06012-00

—

$4.71

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

28

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

—

$8.80

In stock

29

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

30

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

31

CLIP

(90468-15076-00)

1
Out of stock

32

HOSE (L450)

90445-10144-00

—

$4.52

In stock

33

CLIP

90467-090A2-00

—

$2.51

In stock

34

BRACKET, IGN COIL

8M6-82316-00-00

1
Out of stock

35

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

SCREW, PAN

98507-06014-00

—

$6.18

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
