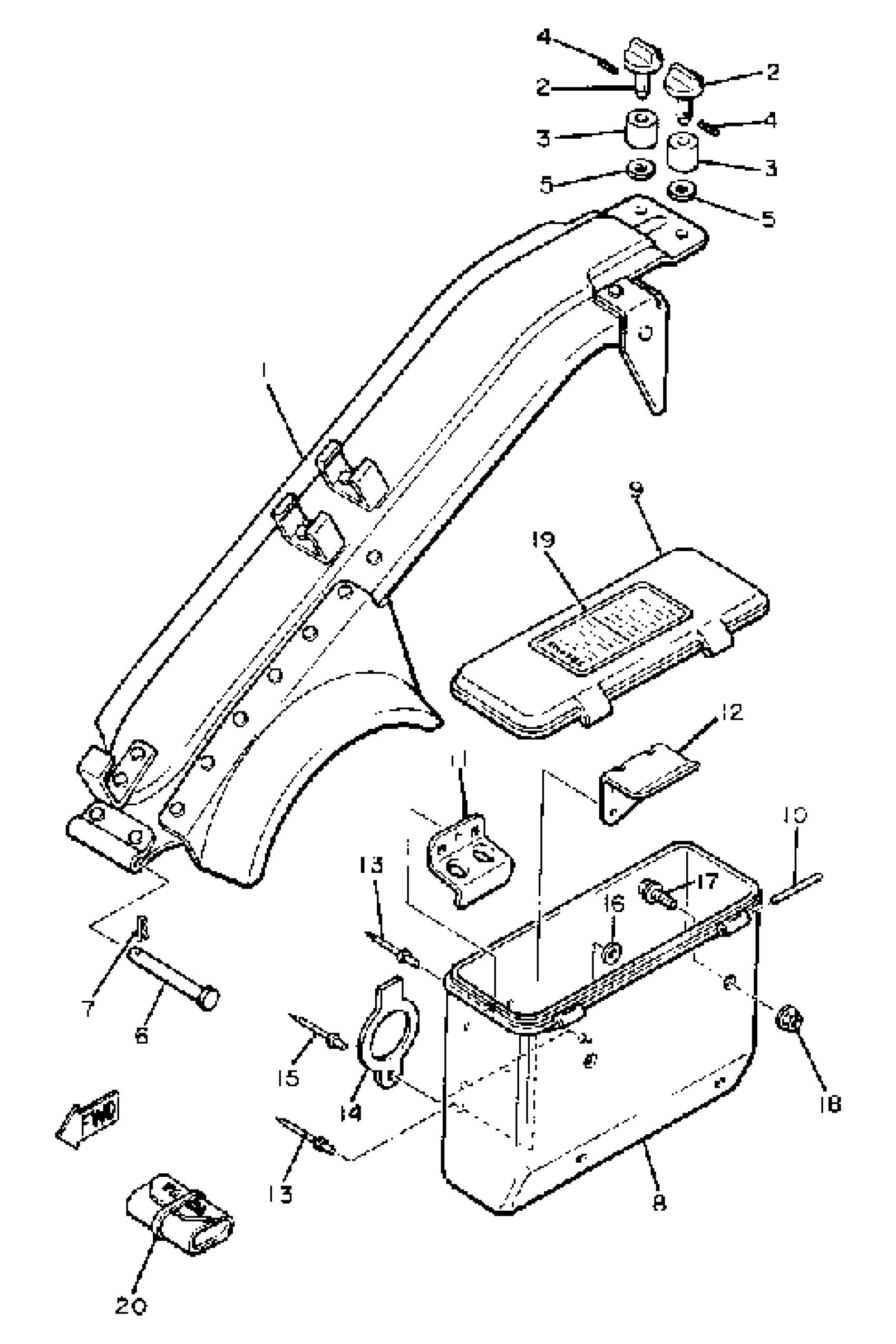

Find the part on the Gaurd - Luggage BOX diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Gaurd - Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE (8M6-77311-01)

8M6-77311-02-00

1
Out of stock

2

KNOB

(829-77324-00-00)

1
Out of stock

3

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

4

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock

5

WASHER, PLATE

90201-08104-00

1
Out of stock

6

PIN, CLEVIS

91702-06070-00

1
Out of stock

7

CLIP

90468-18008-00

1

$1.35

In stock

8

LUGGAGE BOX

8M6-77391-00-00

1
Out of stock

9

COVER, LUGGAGE BOX

8M6-77392-00-00

1
Out of stock

10

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

11

BRACKET, SPARK PLUG

8H8-77376-00-00

1
Out of stock

12

HOLDER, TOOL

8H8-28175-00-00

—

$2.42

In stock

13

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

14

HOOK 1

8K4-77386-00-00

1
Out of stock

15

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

16

WASHER, PLATE

90201-04027-00

—
Out of stock

17

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

18

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

19

INDICATOR 3

8M6-77743-00-00

1
Out of stock

20

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
